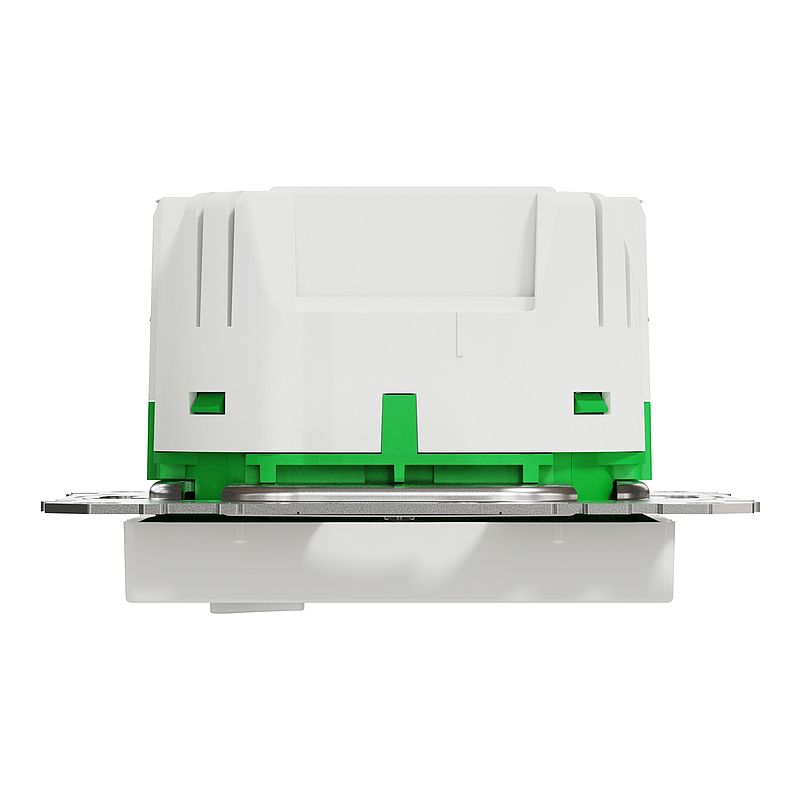

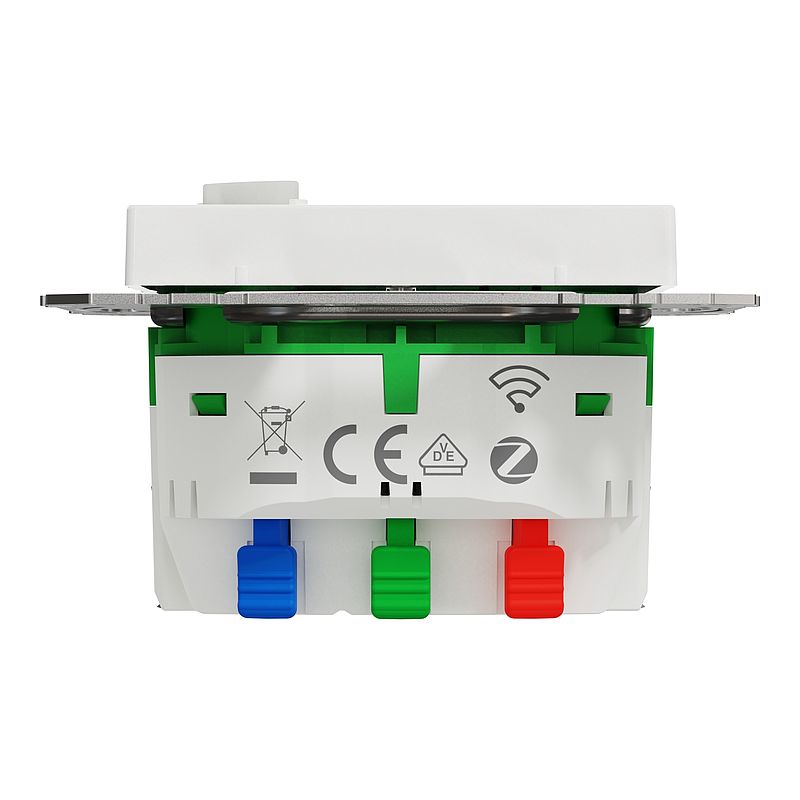

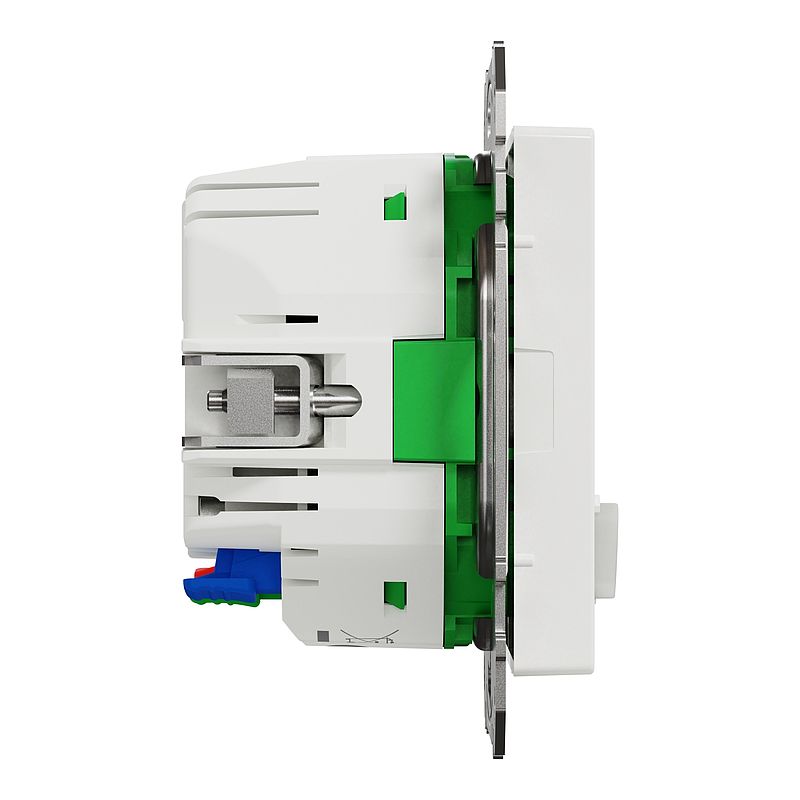

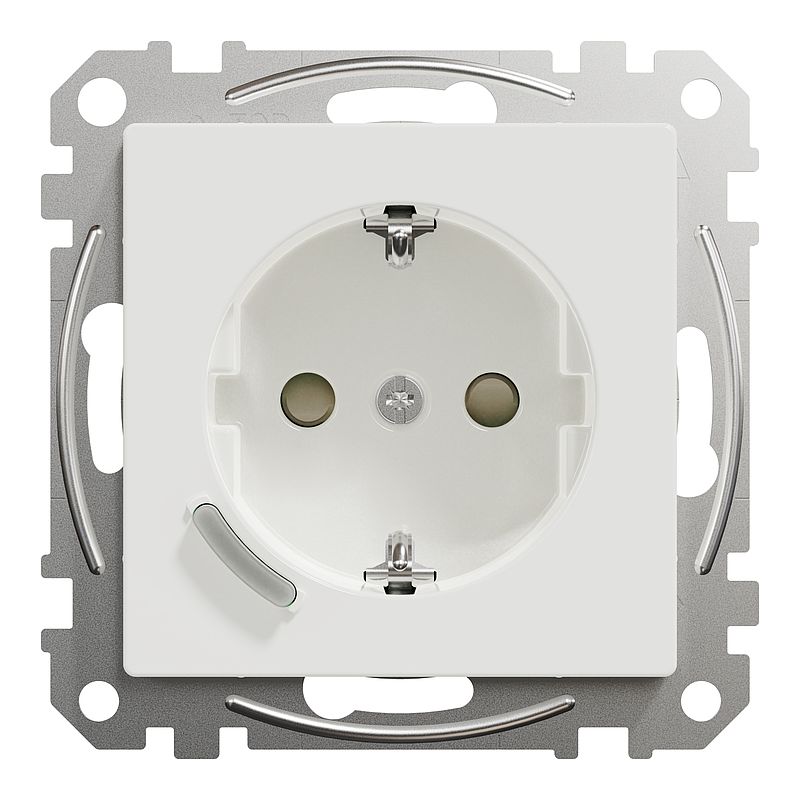

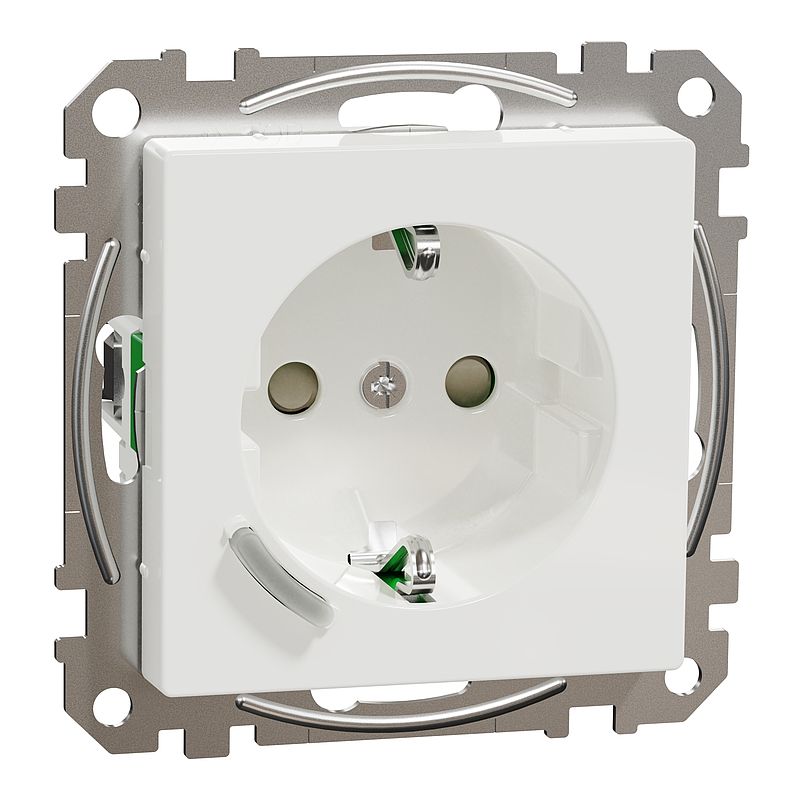

Connected SCHUKO-Steckdose 16A, System M, Thermoplast brillant, Aktivweiß glänzend

MEG2380-0325

Hauptdokumente

Produktdatenblatt Download
System user guide Download
Declaration of conformity Download
Circularity Profile Download
Environmental Disclosure Download
Declaration of Conformity (Sustainability) Download
Instruction sheet Download
User guide Download
How to video Video anzeigen
Catalog Download
Certificate Download
Promotional video Video anzeigen
Technical illustration Download
Brochure Download

Spezifikationen

Hauptmerkmale
BaureiheMerten
Produkt- oder KomponententypAngeschlossene Steckdose
Konfiguration der Ausgangspole2-polig + E
GerätedarstellungMechanismus mit Befestigungsrahmen und Abdeckplatte
Anzahl der Steckdosen1
AusgangsstandardCEE 7/3
Kompatibilität des KonzentratorsWiser hub Generation 2
Name der mobilen AppWiser Home
Steckdosen-TypSingle socket-outlet
HauptfarbtonAktivweiß
Zusatzmerkmale
GehäusevarianteEinbau
Bemessungsstrom16 A
LasttypLED-Lampe 125 µF 100 W 230 V AC
Glühlampe 2.000 W 230 V AC
Niedervolt-Halogenlampe mit ferromagnetischem Transformator 1.500 VA
Niedervolt-Halogenlampe mit elektronischem Transformator 2.000 VA
Ohmsch 3.680 W
Kapazitiv 70 µF 6 AX
Induktiv 16 A cos phi = 0,6
Motor 1.600 VA 7 A
Anzahl der Steckdosen1 x verbunden
[Ue] Betriebsbemessungsspannung230 V AC 50 Hz
Verbrauch im BereitschaftszustandMax. 0,4 W
SchutzgerätetypMiniatur-Leitungsschutzschalter (MCB) 16 A max.
SchutzartÜberhitzungsschutz
Überlastschutz
Funktion verfügbarStromüberwachung
Messgenauigkeit+/-1 % (bei > 25 W Last)
FarbtonAktivweiß (RAL 9016)
OberflächenbeschaffenheitGlänzend
Lokale Signalisierung LED (grün/rot/orange)
KontrolltypDurch mobile Anwendung
KommunikationsnetztypDrahtlos Zigbee (2405…2480 MHz), 10 mW bei < 50 m

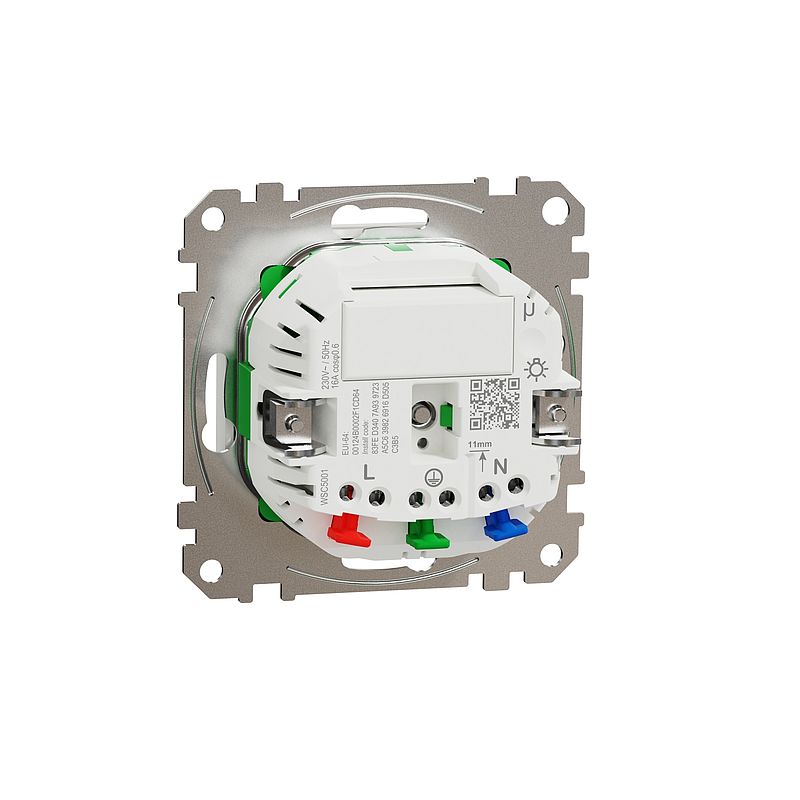

Anschlüsse - KlemmenSchraubenlose Klemmen
Klemmverbindungskapazität2 x 2,5 mm²
MaterialThermoplastisch
BefestigungsmodusDurch Schrauben
Einbautiefe31,55 mm
Tiefe43,35 mm
Breite72,7 mm
Höhe72,7 mm
Projektierungstiefe11,8 mm
ProduktzertifizierungenZigbee 3.0
CE
Schutzart (IP)IP20
SignalisierungsfunktionStatus
InstallationstypInnenraum
Montage
Umgebungstemperatur bei Betrieb5…40 °C
Schutzart (IK)IK02
Verpackungseinheiten
VPE 1 ArtPCE
VPE 1 Menge1
VPE 1 Gewicht152 g
VPE 1 Höhe7,7 cm
VPE 1 Breite9,5 cm
VPE 1 Länge9,5 cm
VPE 2 ArtS03
VPE 2 Menge36
VPE 2 Gewicht5,913 kg
VPE 2 Höhe30 cm
VPE 2 Breite30 cm
VPE 2 Länge40 cm
VPE 3 ArtP12
VPE 3 Menge288
VPE 3 Gewicht59,304 kg
VPE 3 Höhe45 cm
VPE 3 Breite80 cm
VPE 3 Länge120 cm
Vertragliche Gewährleistung
Gewährleistung18 Monate

Nachhaltigkeit

Green Premium

Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.

Weitere Informationen

Nachhaltigkeit
Angebotsstatus nachhaltiges Produkt Green Premium Produkt
EU-RoHS-Richtlinie Konform mit Ausnahmen
Quecksilberfrei Ja
Enthält Halogene Produkt mit halogenfreien Kunststoffteilen
