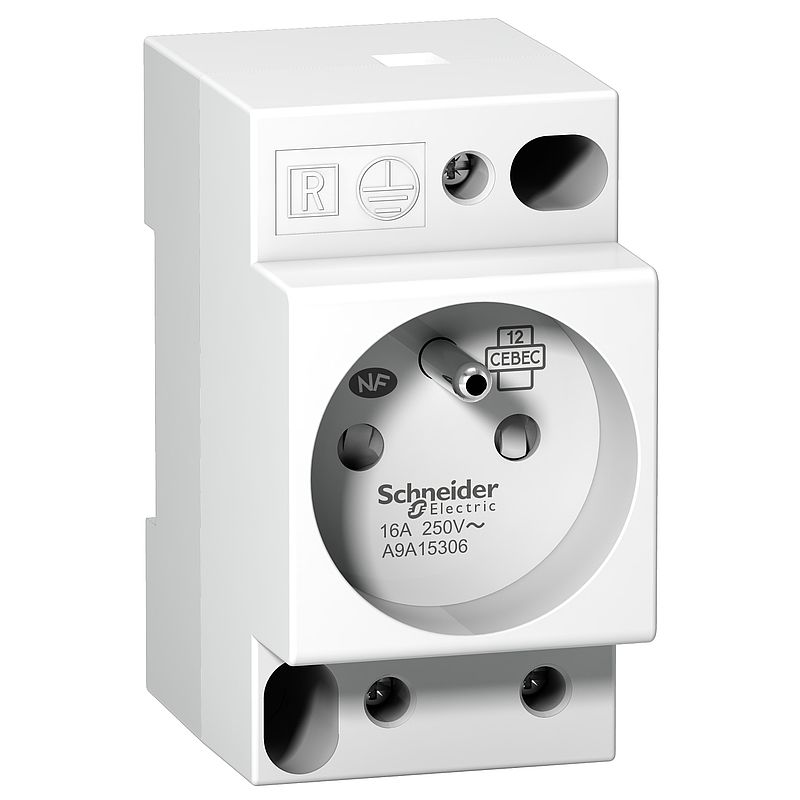

Steckdose iPC, 2P+E, 16A, 250VAC, NFC 15100, französische Ausführung

A9A15306

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Circularity Profile Download
Environmental Disclosure Download
Katalog Download
Certificate Download
CAD Download

Spezifikationen

Hauptmerkmale
range of product Acti9
Produktname Acti 9 iPC
Produkt- oder Komponententyp Modulare Steckdose
Kurzbezeichnung des Geräts iPC
Beschreibung der Pole 2-polig + E
Ausgangsstandard Französisch
Zusatzmerkmale
[In] Bemessungsstrom 16 A
[Ue] Bemessungs-Betriebsspannung 250 V AC 50/60 Hz
Montagemodus Fest
Montagehalterung Symmetrische DIN-Schiene
9-mm-Raster 5
Höhe 84 mm
Breite 45 mm
Tiefe 60 mm
Produktgewicht 98 g
Farbe Weiß
Anschlüsse - Klemmen Tunnelklemmen1 Kabel 6 mm² flexibel
Tunnelklemmen1 Kabel 10 mm² fest
Drahtabisolierungslänge 13 mm
[M] Anzugsdrehmoment 1,2 Nm
Montage
Normen IEC 60884-1
NF C 15-100
NF C 61-314
Schutzart (IP) IP20 entspricht IEC 60529
IP40 (modulares Gehäuse) entspricht IEC 60529
Schutzart (IK) IK03
Tropentauglichkeit 2 entspricht IEC 60068-1
Relative Luftfeuchtigkeit 95 % bei 55 °C
Umgebungstemperatur bei Betrieb -25…70 °C
Umgebungstemperatur bei Lagerung -40…80 °C
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Gewicht 102,000 g
VPE 1 Höhe 6,500 cm
VPE 1 Breite 4,500 cm
VPE 1 Länge 8,500 cm
VPE 2 Art BB1
VPE 2 Menge 5
VPE 2 Gewicht 560,000 g
VPE 2 Höhe 2,750 cm
VPE 2 Breite 30,000 cm
VPE 2 Länge 20,000 cm
VPE 3 Art S03
VPE 3 Menge 75
VPE 3 Gewicht 8,878 kg
VPE 3 Höhe 30,000 cm
VPE 3 Breite 30,000 cm
VPE 3 Länge 40,000 cm
Vertragliche Gewährleistung
Gewährleistung 18 months

Nachhaltigkeit

Environmental data
EU-RoHS-Richtlinie Konform
EU-RoHS-Deklaration
Giftiges Schwermetall frei Ja
Quecksilberfrei Ja
WEEE Das Symbol der durchgestrichenen Mülltonne weist darauf hin, dass Elektro- bzw. Elektronik(alt)geräte nicht im Hausmüll entsorgt werden dürfen, sondern vom Besitzer einer getrennten Sammlung für Elektro- und Elektronikaltgeräte zugeführt werden müssen.
SCIP-Nummer 298247e9-8385-4c4a-aeaf-df8136a7fb49
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
Rücknahme No
CO2-Bilanz (kg CO2 eq.) 26
Halogengehalt Leistung Produkt enthält Halogen über den Schwellenwerten
Global warming ; Total life cycle​ 26 kg CO2 eq.
