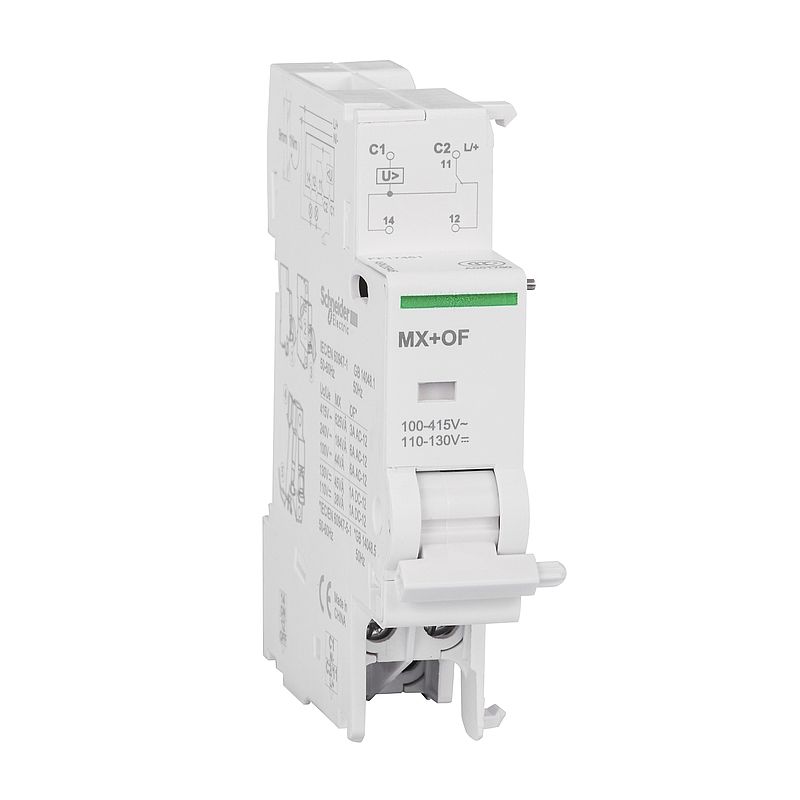

Arbeitsstromauslöser MX+Hilfskontakt OF, 220-415V AC 110-130V DC

A9N26946


Spezifikationen

Hauptmerkmale
Produktbereich Acti9
Produkt- oder Komponententyp Arbeitsstromauslöser mit Hilfsschalter OF
Kurzbezeichnung des Geräts MX + OF
Zusammensetzung der Signalkontakte 1 Wechslerkontakt
[Uc] Steuerkreisspannung 100 - 415 V AC 50/60 Hz
110 - 130 V DC
9-mm-Raster 2
[In] Bemessungsstrom 3 A bei 415 V, AC
6 A bei <= 240 V, AC
Zusatzmerkmale
Kompatible Produktfamilie Acti9 iDPN
Acti9 C120
Acti9 C40
Acti9 C60H-DC
Acti9 C60NA-DC
Acti9 C60PV-DC
Acti9 DPN Vigi
Acti9 DT40
Acti9 DT60
Acti9 ID C40
Acti9 IDc
Acti9 ITG40
Acti9 ID
Acti9 DPN
Lokale Signalisierung Aktionsanzeige
Montagemodus Fest
Montagehalterung 35 mm symmetrische DIN-Schiene
Kompatibilität von Kammschienen und Verteilerblöcken Oben: ja
Höhe 82,5 mm
Breite 18 mm
Tiefe 73,5 mm
Produktgewicht 65 g
Farbe Weiß
Anschlüsse - Klemmen Schraubklemme (unten) - 2 Kabel(n) 1,5 mm² - flexibel
Schraubklemme (unten) - 2 Kabel(n) 1,5 mm² - flexibel mit Aderendhülse
Schraubklemme (unten) - 1 Kabel(n) 0,5…2,5 mm² - fest
Drahtabisolierungslänge 9 mm für unten Verbindung
[M] Anzugsdrehmoment 1 Nm unten
Montage
Normen EN/IEC 60947-2
Produktzertifizierungen ASTA
ASEFA
LCIE
KEMA
Tropentauglichkeit 2 entspricht EN/IEC 60947-2
Relative Luftfeuchtigkeit 95 % bei 55 °C
Umgebungstemperatur bei Betrieb -25…50 °C
Umgebungstemperatur bei Lagerung -40…85 °C
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
Verpackungsgewicht (Lbs) 69,000 g
VPE 1 Höhe 3,100 cm
VPE 1 Breite 7,700 cm
VPE 1 Länge 8,500 cm
VPE 2 Art BB1
VPE 2 Menge 8
VPE 2 Gewicht 622,000 g
VPE 2 Höhe 8,600 cm
VPE 2 Breite 10,300 cm
VPE 2 Länge 27,100 cm
VPE 3 Art S03
VPE 3 Menge 72
VPE 3 Gewicht 6,168 kg
VPE 3 Höhe 30,000 cm
VPE 3 Breite 30,000 cm
VPE 3 Länge 40,000 cm
Vertragliche Gewährleistung
Gewährleistung 18 months

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
EU-RoHS-Richtlinie Konform
EU-RoHS-Deklaration
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
Rücknahme Ja
Sustainable packaging Nein
WEEE Label Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
