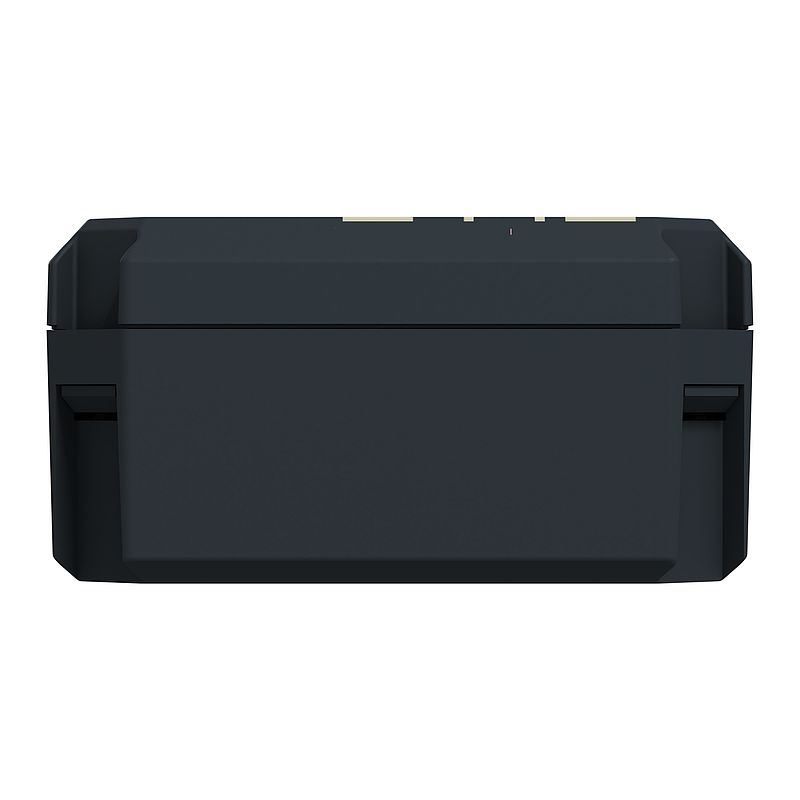

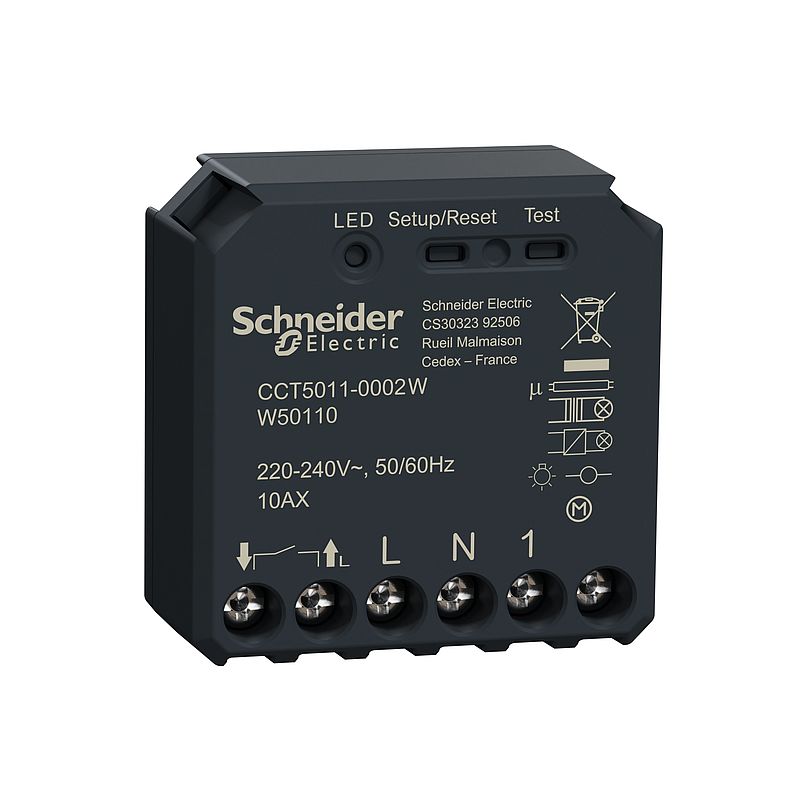

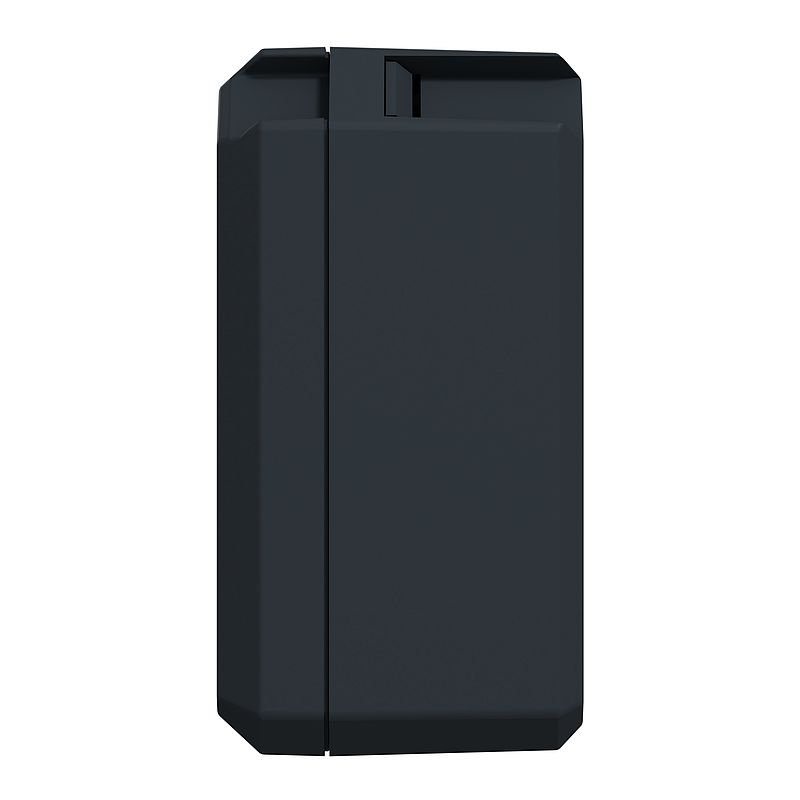

Wiser Schaltaktor 1fach UP
CCT5011-0002W
Farbton: Dunkelgrau
Materialpreisgruppe : E6
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
System user guide | Download |
Presentation | Video anzeigen |
Instruction sheet | Download |
User guide | Download |
How to video | Video anzeigen |
Catalog | Download |
Certificate | Download |
Declaration of conformity | Download |
Circularity Profile | Download |
Environmental Disclosure | Download |
Technical illustration | Download |
Brochure | Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Produktmarke | Schneider Electric |
Baureihe | Wiser |
Typnummer | W50110 |
Produkt- oder Komponententyp | Angeschlossener Schalter |
Kompatibilität des Konzentrators | Wiser hub Generation 2 |
Name der mobilen App | Wiser Home | Zusatzmerkmale |
Gerätedarstellung | Modul |
Typ der Technologie | Elektronisch |
[Ue] Betriebsbemessungsspannung | 220 - 240 V AC 50/60 Hz |
Bemessungsstrom | 10 AX |
Verbrauch im Bereitschaftszustand | Max. 0,3 W |
Zugehörige Absicherung | 16 A |
Farbton | Dunkelgrau |
Oberflächenbeschaffenheit | Matt |
Lokale Signalisierung | Programmieranzeige: 1 LED (grün/rot) |
Anzahl der Ausgänge | 1 |
Kontrolltyp | Fernsteuerung über Hilfstaster Fernsteuerung Wiser App |
Software-Name | Wiser App: Timer-Modus aktivieren Wiser App: Verwaltung des Impulsgenerators Wiser App: Geräte-Firmware aktualisieren |
Max. Anzahl der angeschlossenen Geräte | Zigbee: 15 (Intelligentes Gerät) |
Kommunikationsnetztyp | Drahtlos (2,4 GHz), 2,5 mW bei < 50 m |
Systemanforderungen | Wiser Home Touch Wiser App Wiser Home Touch Wiser Home Steuerung |
Angeschlossene Hilfsgeräte | Max. 10 Hilfstasten, Entfernung: 50 m |
Verdrahtungskonfiguration | Mit Neutralleiter |
Anschlüsse - Klemmen | Schraubklemme |
Anzahl der Schleifenklemmen | 2 |
Klemmverbindungskapazität | 1 x 1,5 - 2 x 2,5 mm² für starr Kabel(n) 1 x 1,5 - 2 x 2,5 mm² für robust verdrillt Kabel(n) |
Schraubenkopfform | Pozidriv Nr. 1 und Kombi |
[M] Anzugsdrehmoment | 0,5 Nm |
Montagehalterung | Installationsbox Wand |
Gehäusevariante | Einbau |
Installationstyp | Innenmontage |
Tiefe | 22 mm |
Breite | 43 mm |
Höhe | 43 mm | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 97,000 g |
VPE 1 Höhe | 5,000 cm |
VPE 1 Breite | 8,000 cm |
VPE 1 Länge | 8,000 cm |
VPE 2 Art | S02 |
VPE 2 Menge | 35 |
VPE 2 Gewicht | 3,825 kg |
VPE 2 Höhe | 15,000 cm |
VPE 2 Breite | 30,000 cm |
VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie | Konform mit Ausnahmen |
Quecksilberfrei | Ja |
