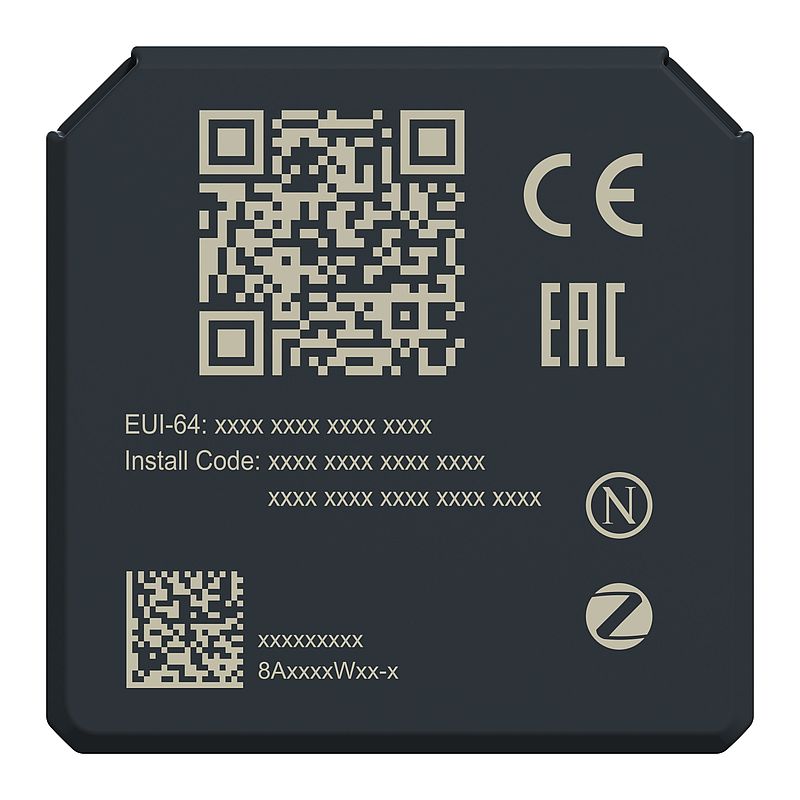

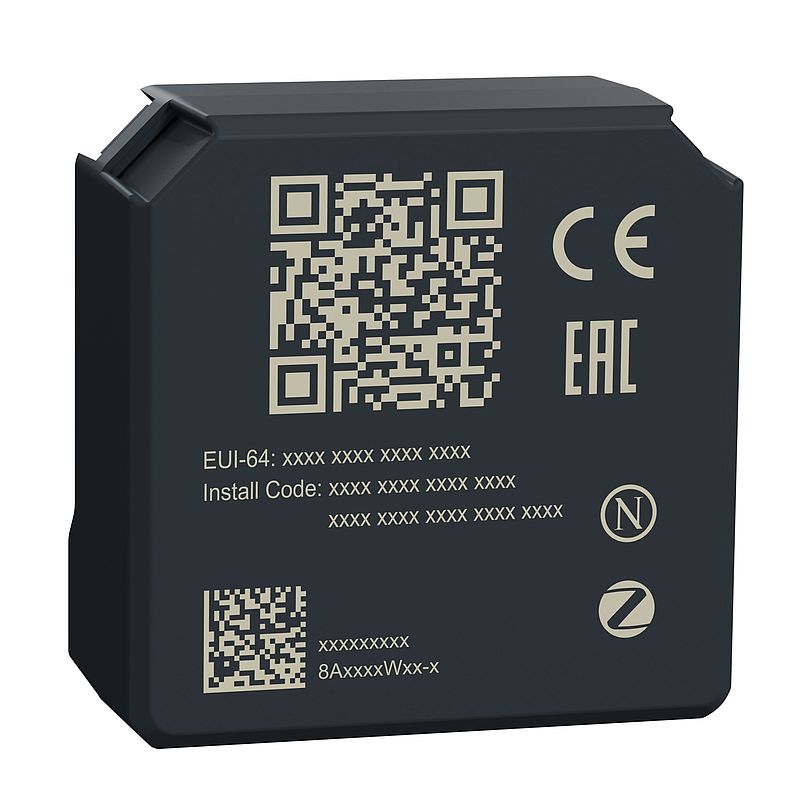

Wiser Jalousieaktor 1fach UP
CCT5015-0002W
Farbton: Dunkelgrau
Materialpreisgruppe : E6
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
System user guide | Download |
Instruction sheet | Download |
User guide | Download |
Promotional video | Video anzeigen |
Catalog | Download |
Declaration of conformity | Download |
Environmental Disclosure | Download |
Circularity Profile | Download |
Certificate | Download |
Handout | Download |
How to video | Video anzeigen |
Brochure | Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Produktmarke | Schneider Electric |
Baureihe | Wiser |
Typnummer | W50150 |
Produkt- oder Komponententyp | Angeschlossene Rollladen-Steuerung |
Kompatibilität des Konzentrators | Wiser hub Generation 2 |
Name der mobilen App | Wiser Home | Zusatzmerkmale |
Gerätedarstellung | Modul |
Typ der Technologie | Elektronisch |
[Ue] Betriebsbemessungsspannung | 220 - 240 V AC 50/60 Hz |
Bemessungsstrom | 4 A |
Verbrauch im Bereitschaftszustand | Max. 0,3 W |
Zugehörige Absicherung | 16 A |
Farbton | Dunkelgrau |
Oberflächenbeschaffenheit | Matt |
Lokale Signalisierung | Programmieranzeige: 1 LED (grün/rot) |
Anzahl der Ausgänge | 1 |
Kontrolltyp | Fernsteuerung über Doppel-Hilfstaster Fernsteuerung Wiser App Geräteprogrammierung |
Software-Name | Wiser App: Geräte-Firmware aktualisieren Wiser App: Einstellung der Jalousiebewegungszeit |
Max. Anzahl der angeschlossenen Geräte | Zigbee: 15 (Intelligentes Gerät) |
Kommunikationsnetztyp | Drahtlos Zigbee (2,4 GHz), 10 mW bei < 50 m |
Systemanforderungen | Wiser Home Touch Wiser App Apple iOS 10.3 oder höher Wiser App Bluetooth 4.1 oder höher Bluetooth Wiser Home Touch Wiser Home Steuerung |
Angeschlossene Hilfsgeräte | Unbegrenzte Anzahl von Doppel-Drucktastern, Entfernung: 50 m |
Verdrahtungskonfiguration | Mit Neutralleiter |
Anschlüsse - Klemmen | Schraubklemme |
Anzahl der Schleifenklemmen | 2 |
Klemmverbindungskapazität | 1 x 1,5 - 2 x 2,5 mm² für starr Kabel(n) 1 x 1,5 - 2 x 2,5 mm² für robust verdrillt Kabel(n) |
Schraubenkopfform | Pozidriv Nr. 1 und Kombi |
[M] Anzugsdrehmoment | 0,5 Nm |
Montagehalterung | Installationsbox Wand |
Gehäusevariante | Einbau |
Installationstyp | Innenmontage |
Tiefe | 22 mm |
Breite | 43 mm |
Höhe | 43 mm |
Geräteanwendung | Jalousieaktor | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 85,000 g |
VPE 1 Höhe | 5,200 cm |
VPE 1 Breite | 7,500 cm |
VPE 1 Länge | 7,500 cm |
VPE 2 Art | S02 |
VPE 2 Menge | 35 |
VPE 2 Gewicht | 3,371 kg |
VPE 2 Höhe | 15,000 cm |
VPE 2 Breite | 30,000 cm |
VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie | Konform mit Ausnahmen |
Quecksilberfrei | Ja |
