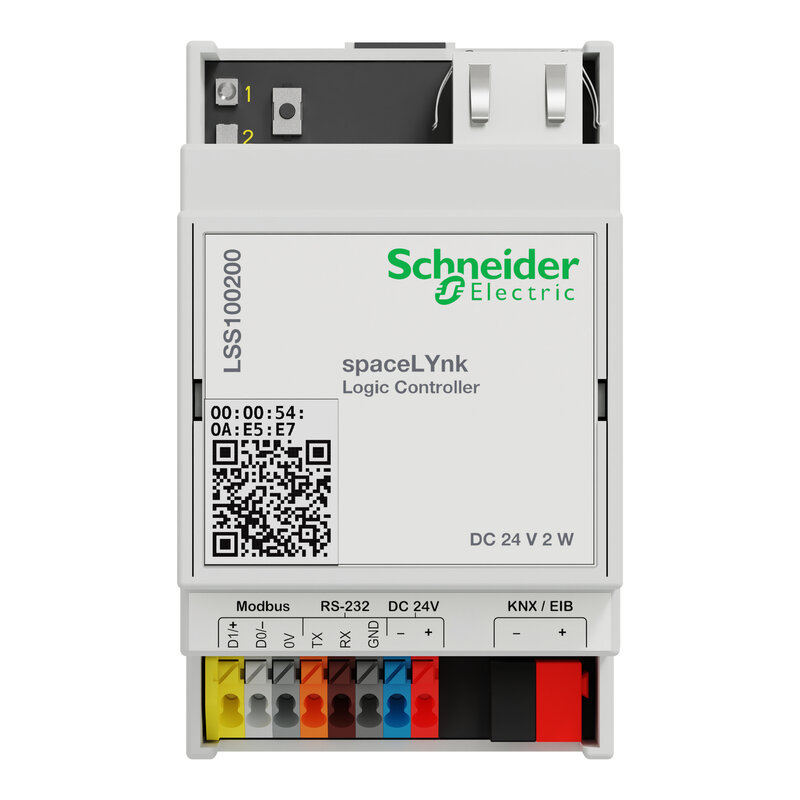

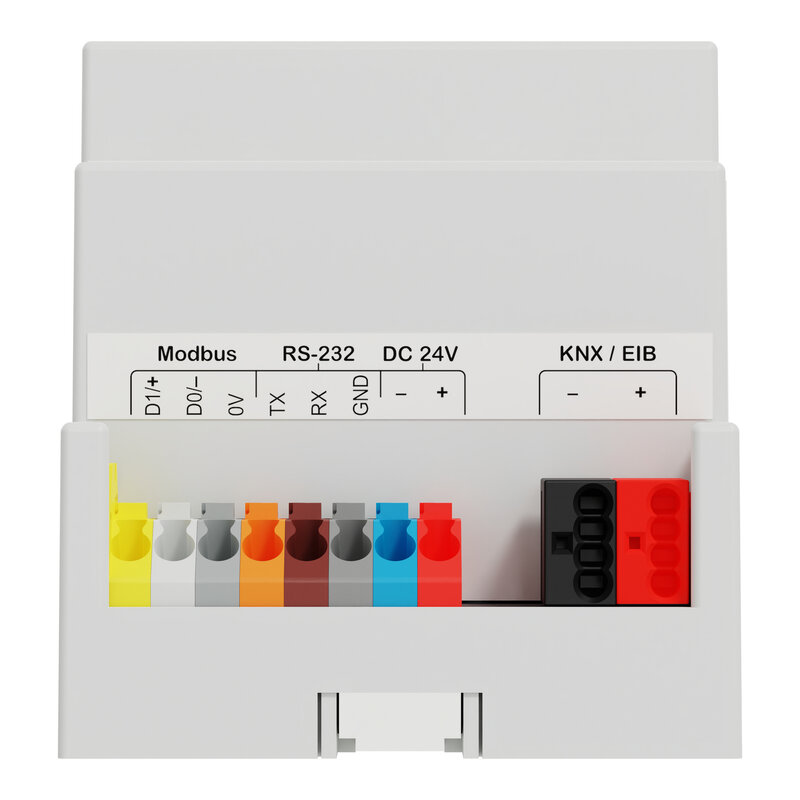

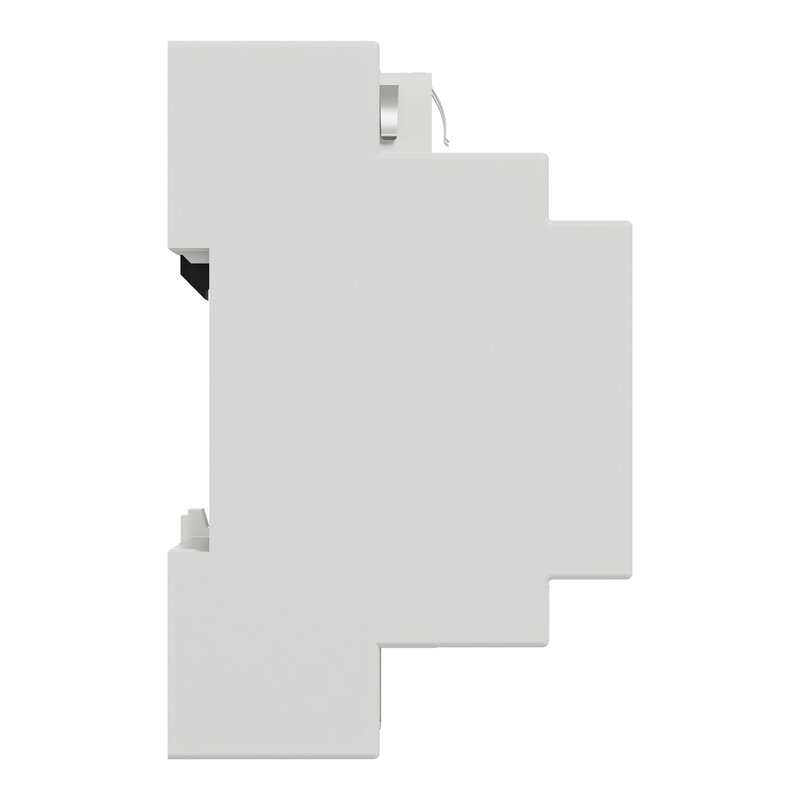

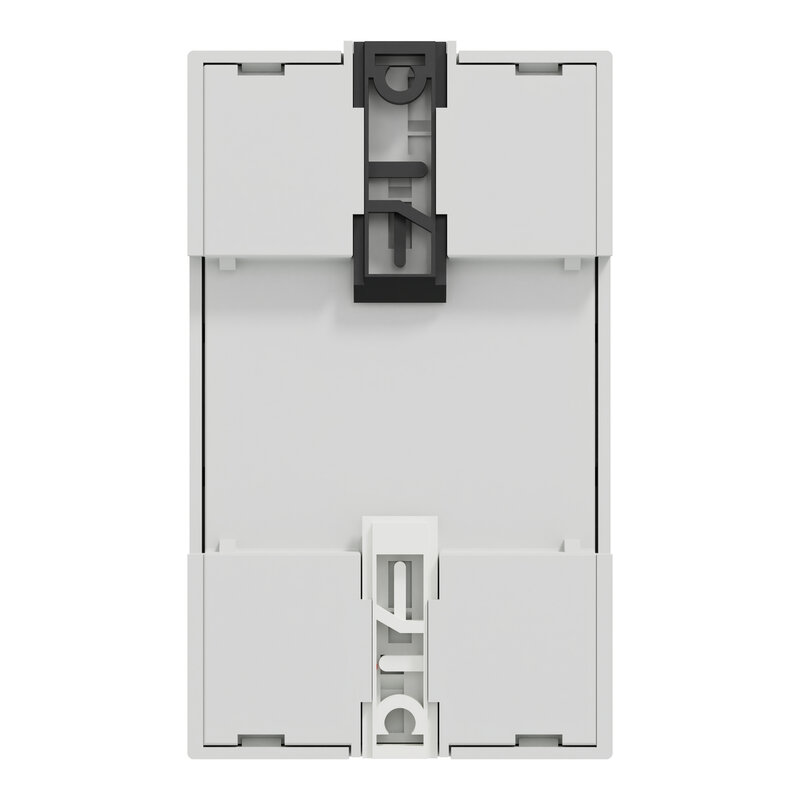

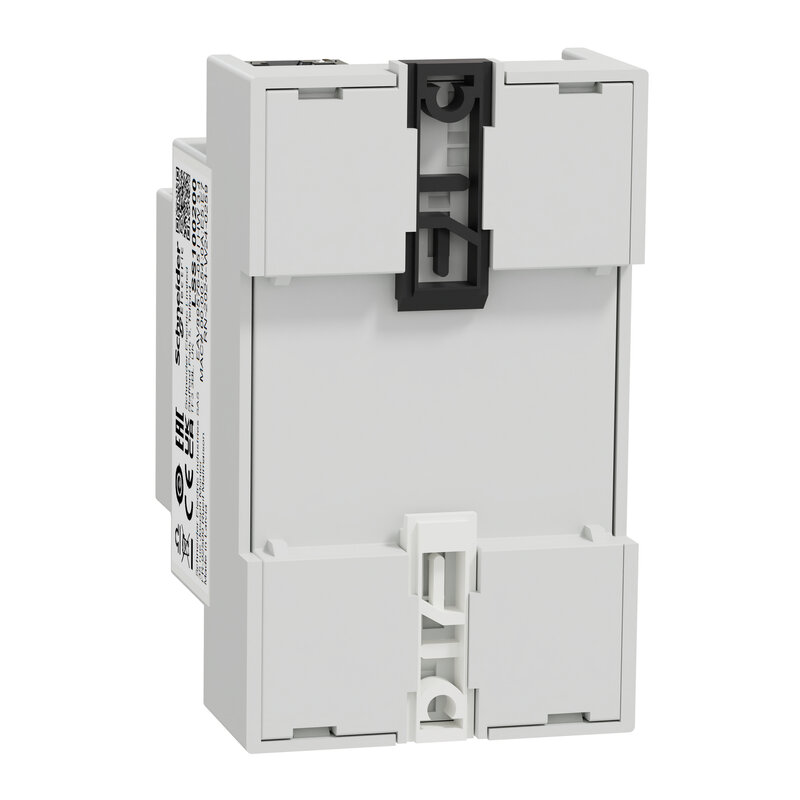

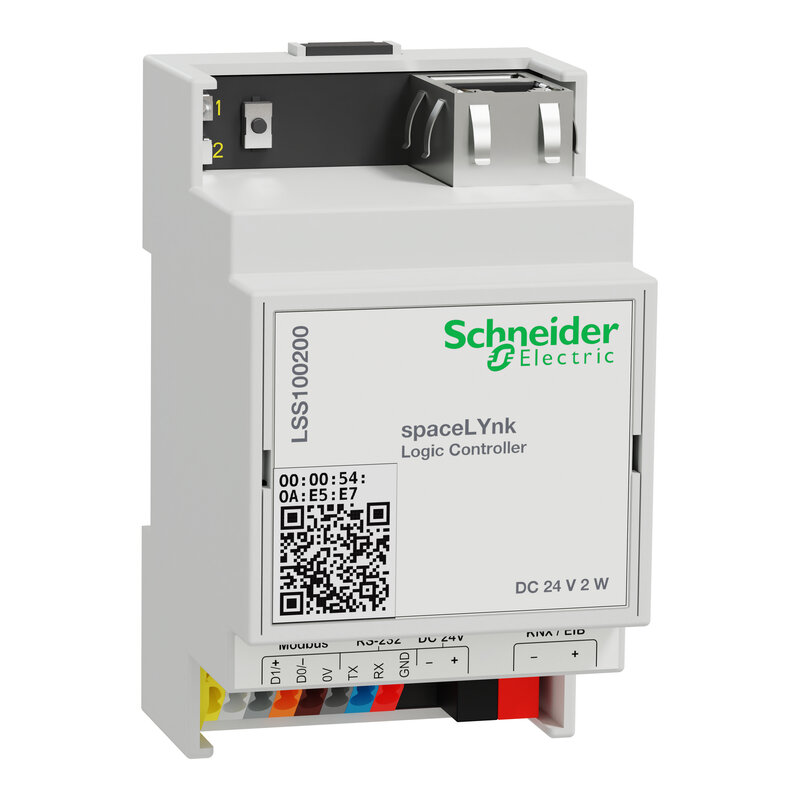

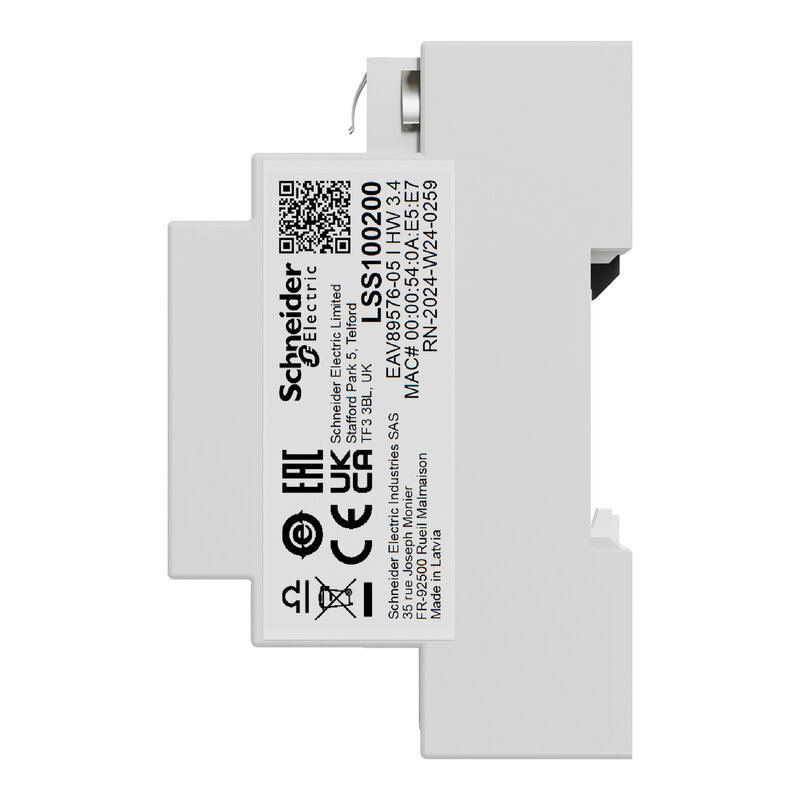

Logik-Controller spaceLYnk
LSS100200
Materialpreisgruppe
: G1
1.629,00 EUR
EAN Code: 3606480715723
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
BIM Model
|
Download |
|
Instruction sheet
|
Download |
|
CAD
|
Download |
|
Catalog
|
Download |
|
Software - Hotfix
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Application Notes
|
Download |
|
Software - Data Library
|
Download |
|
User guide
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Produktname | SpaceLYnk |
| Produkt- oder Komponententyp | Logik-Controller |
| Baureihe | KNX | Zusatzmerkmale |
| Kommunikationsprotokoll | Modbus IP (Internetprotokoll) BACnet KNX |
| [UH,nom] Bemessungsbetriebsspannung | 24 V DC |
| Leistungsaufnahme in W | 2 W |
| LED-Anzeige | LED (grün) für CPU-Auslastung LED (grün/rot) für KNX eingeschaltet/zurückgesetzt |

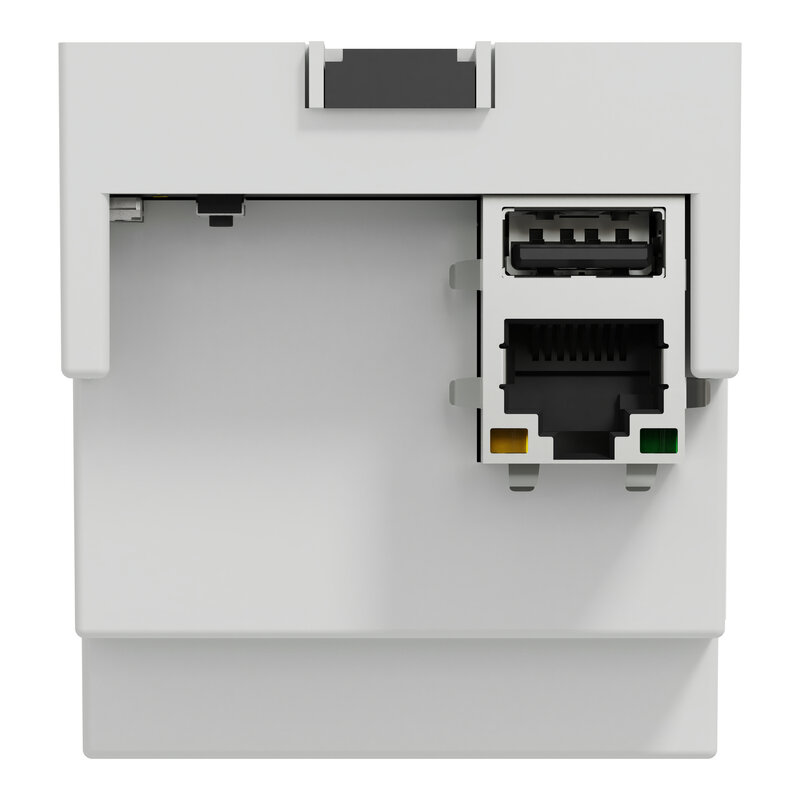

| physikalische Schnittstelle | 1 x RJ45 1 x RS485 1 x RS232 1 x TP-UART2 |
| Ethernet-Anschluss | 10BASE-T/100BASE-TX |
| integrierte Schnittstellen | 1 USB 2.0-Schnittstelle |
| Kontrolltyp | RESET-Drucktaster |
| Anschlüsse - Klemmen | KNX-Bus: Bus-Anschlussklemme 2 Kabel 0,8 mm² Stromversorgung: Klemmenanschluss1,5 mm² Seriell: Klemmenanschluss1,5 mm² |
| Montagehalterung | DIN-Schiene |
| Höhe | 90 mm |
| Breite | 52 mm |
| Tiefe | 58 mm | Montage |
| Umgebungstemperatur bei Betrieb | -5…45 °C |
| Betriebshöhe | <= 2.000 m |
| Relative Luftfeuchtigkeit | 0…93 % |
| Schutzart (IP) | IP20 |
| Normen | IEC 60950-1 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Gewicht | 126,000 g |
| VPE 1 Höhe | 6,000 cm |
| VPE 1 Breite | 6,800 cm |
| VPE 1 Länge | 9,300 cm |
| VPE 2 Art | BB1 |
| VPE 2 Menge | 10 |
| VPE 2 Gewicht | 1,381 kg |
| VPE 2 Höhe | 7,400 cm |
| VPE 2 Breite | 19,700 cm |
| VPE 2 Länge | 34,700 cm |
| VPE 3 Art | S03 |
| VPE 3 Menge | 40 |
| VPE 3 Gewicht | 5,994 kg |
| VPE 3 Höhe | 30,000 cm |
| VPE 3 Breite | 30,000 cm |
| VPE 3 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
Environmental data| REACh frei von SVHC | Ja |
|
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
| Giftiges Schwermetall frei | Ja |
|
Quecksilberfrei
|
Ja |
| WEEE | Das Produkt muss nach der spezifischen Abfallsammlung auf den Märkten der Europäischen Union entsorgt werden und darf nicht in Abfalleimer gelangen |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | No |
| CO2-Bilanz (kg CO2 eq.) | 40 |
