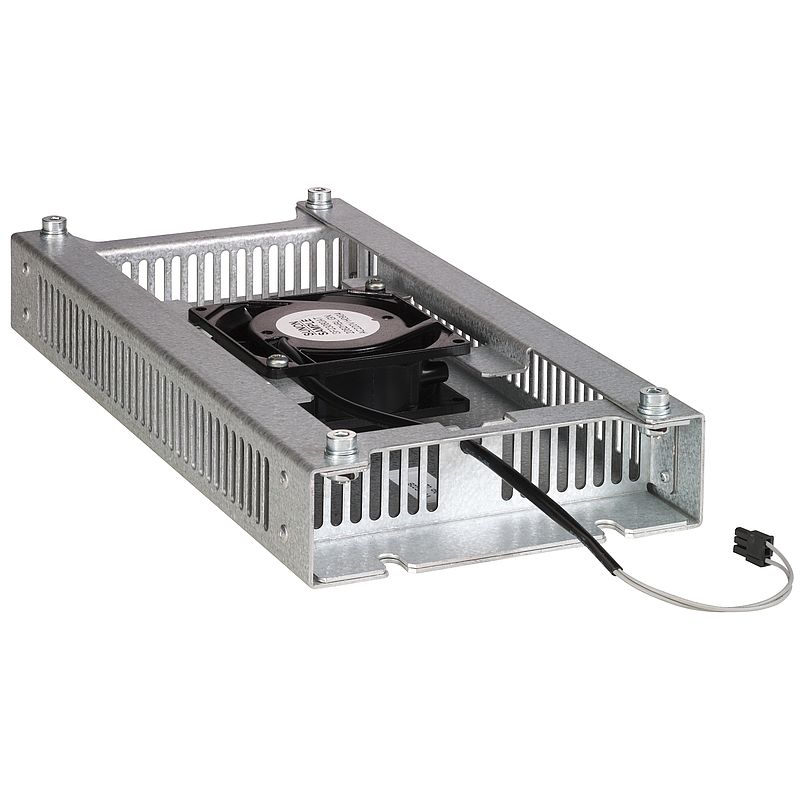

Lüfter, Option für ATS22, 17A bis 47A, 230V

VW3G22400

Hauptdokumente

Produktdatenblatt Download
Umweltkonformitätserklärung Download
CAE Download
Katalog Download
CAD Download
Gebrauchsanleitung Download

Spezifikationen

Hauptmerkmale
Baureihe Altistart 22
Zubehör / Teiletyp Lüfter-Satz
Zubehör / Teilekategorie Kühlzubehör
Zubehör / Zielkategorie Sanftanlasser
Zubehördimension 130 x 40 x 265 mm
Zusatzmerkmale
Kompatibilität mit Sanftanlasser Sanftanlasser ATS22 220 V (Größe: 130 x 169 x 165 mm)
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Gewicht 1,584 kg
VPE 1 Höhe 8,500 cm
VPE 1 Breite 20,500 cm
VPE 1 Länge 36,000 cm
VPE 2 Art S06
VPE 2 Menge 36
VPE 2 Gewicht 69,024 kg
VPE 2 Höhe 75,000 cm
VPE 2 Breite 60,000 cm
VPE 2 Länge 80,000 cm
Vertragliche Gewährleistung
Gewährleistung 18 months

Nachhaltigkeit

Environmental data
EU-RoHS-Richtlinie Proaktive Einhaltung (Produkt fällt nicht unter die rechtlichen Bestimmungen von EU RoHS)
EU-RoHS-Deklaration
SCIP-Nummer A48abc2e-4c3f-4773-b59f-8bf1e126a315
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Nein
Rücknahme No
