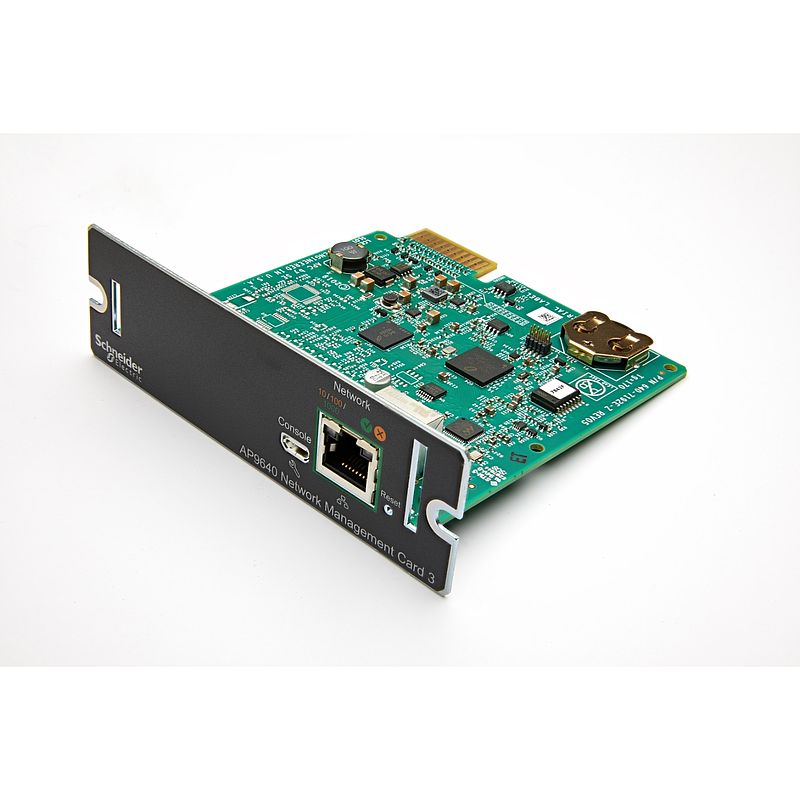

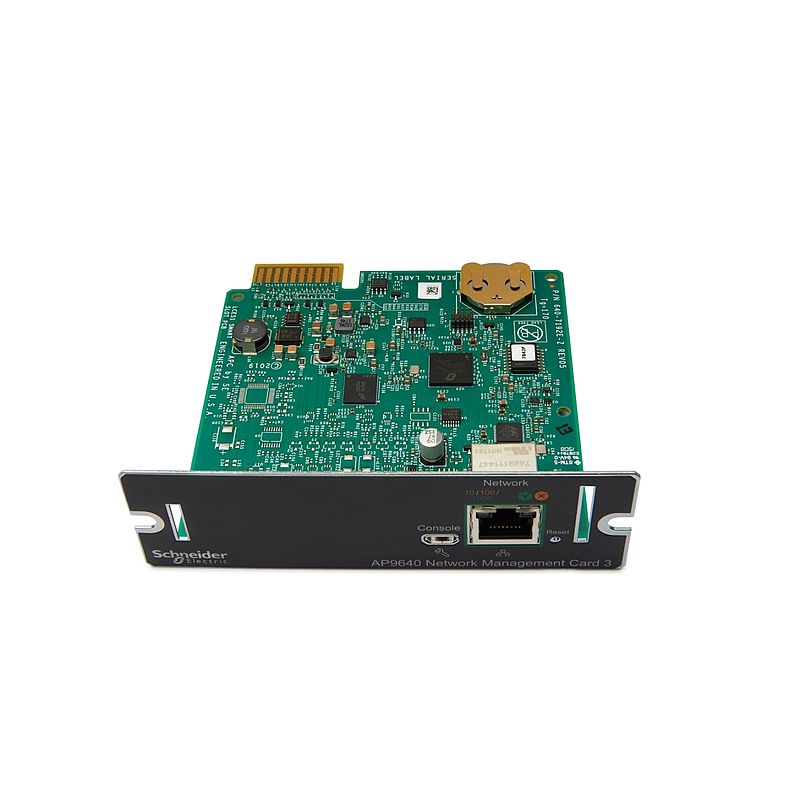

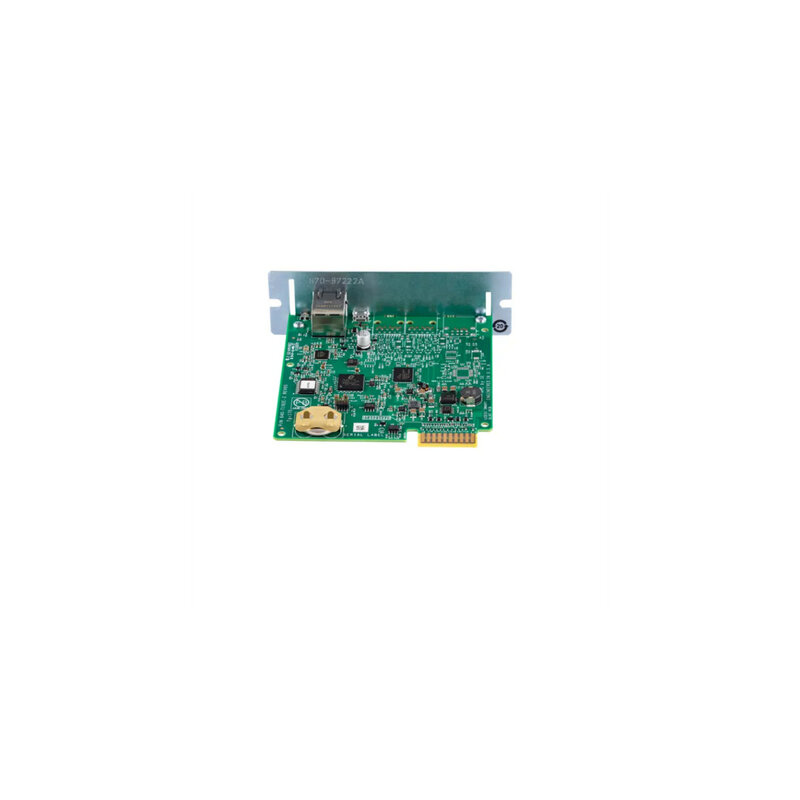

USV-Netzwerkmanagement-Karte 3
AP9640
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Anwendungshinweise
|
Download |
|
Präsentation
|
Download |
|
Kurzanleitung
|
Download |
|
Benutzerhandbuch System & Lösung
|
Download |
|
Firmware - History, Utility & Others
|
Download |
|
Broschüre
|
Download |
|
Katalog
|
Download |
|
Entsorgungsinformation
|
Download |
|
Firmware
|
Download |
|
Produktumweltprofil
|
Download |
|
Benutzerhandbuch
|
Download |
|
Specification guide
|
Download |
|
Informationsvideo
|
Download |
|
Zertifikat
|
Download |
|
Zertifikat
|
Download |
|
Software - Release
|
Download |
Spezifikationen
| Übersicht | |
|---|---|
| Lieferzeit | Normalerweise auf Lager | Hauptmerkmale |
| Geliefertes Zubehör | Micro-USB cable Installationshandbuch |
| Produkt- oder Komponententyp | Device monitoring and management |
| Baureihe | Network Management Cards |
| Kompatible Produktfamilie | Galaxy VM Galaxy VX Symmetra PX Easy UPS 3M Advanced Easy UPS 3-Phase Modular Galaxy PX Smart-UPS Smart-UPS Ultra Smart-UPS Online Smart-UPS Modular Ultra Smart-UPS Battery Systems Back-UPS SX3 Refurbished Smart-UPS |
| Number of input phases | 1 3 |
Abmessungen |
| Höhe | 3,8 cm |
| Breite | 12,1 cm |
| Tiefe | 11,4 cm |
| Produktgewicht | 0,08 kg | Konformität |
| Normen | EN 55024 BS EN 55024 EN 61000-4-2 BS EN 61000-4-2 EN 61000-4-3 BS EN 61000-4-3 EN 61000-4-4 BS EN 61000-4-4 EN 61000-4-5 BS EN 61000-4-5 EN 61000-4-6 BS EN 61000-4-6 EN 61000-4-8 BS EN 61000-4-8 EN 61000-4-11 BS EN 61000-4-11 EN 55035 BS EN 55035 EN 62040-2 BS EN 62040-2 EN 61326-2 BS EN 61326-2 ICES-003 Klasse A VCCI Klasse A EN 61000-6-3 BS EN 61000-6-3 |
| Produktzertifizierungen | FCC Klasse A AS/NZS BS EN 55032 AS/NZS 3548 (C-Tick) Klasse A FCC Teil 15 Klasse A GOST UK PSTI |
| Normen | EN 55024 BS EN 55024 EN 61000-4-2 BS EN 61000-4-2 EN 61000-4-3 BS EN 61000-4-3 EN 61000-4-4 BS EN 61000-4-4 EN 61000-4-5 BS EN 61000-4-5 EN 61000-4-6 BS EN 61000-4-6 EN 61000-4-8 BS EN 61000-4-8 EN 61000-4-11 BS EN 61000-4-11 EN 55035 BS EN 55035 EN 62040-2 BS EN 62040-2 EN 61326-2 BS EN 61326-2 ICES-003 Klasse A VCCI Klasse A EN 61000-6-3 BS EN 61000-6-3 EN 55032:Klasse A |
Umgebung |
| Umgebungstemperatur bei Betrieb | -5…45 °C |
| Betriebshöhe | 0 - 10.000 ft |
| Relative Luftfeuchtigkeit | 0…95 % |
| Umgebungstemperatur bei Lagerung | -15…65 °C |
| Aufbewahrungshöhe | 0,0000000000…15240,0000000000 m |
| Relative Feuchtigkeit bei Lagerung | 0…95 % | Kommunikation & Management |
| Authentifizierung | Radius Lightweight Directory Access Protocol (LDAP) |
| Kommunikationsnetztyp | 10/100/1000BASE-T |
| Kommunikationsprotokoll | HTTP over secure sockets Layer (HTTPS) SSH FTP HTTP SNMP DHCP BOOTP (Bootstrap Protocol) TCP/IP |
Verpackungseinheiten |
| VPE 1 Gewicht | 0,34 kg |
| VPE 1 Höhe | 5,1 cm |
| VPE 1 Breite | 15,9 cm |
| VPE 1 Länge | 23,5 cm |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 | Vertragliche Gewährleistung |
| Gewährleistung | 2 Jahre Garantie für Reparatur/Ersatz |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
Nachhaltigkeit| Angebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie
|
Konform EU-RoHS-Deklaration |
60 Dokumente
| Network Management Card 3 - User Guide 16/10/24 · Benutzerhandbuch | 3,1 MB | Download |
| UPS Network Management Cards: Installing Multiple Management Cards (Manual Addendum) 15/10/24 · Benutzerhandbuch | 0,8 MB | Download |
| Network Management Card 3 Brochure 15/10/24 · Broschüre | 0,1 MB | Download |
| UPS Network Management Card 3 Brochure
15/10/24 · Broschüre |
0,5 MB | Download |
| Network Management Card Device IP Configuration Utility v5.0.4 15/10/24 · Firmware - History, Utility & Others | 0,0 MB | Download |
| UPS Network Management Card 3 - Installationshandbuch
15/10/24 · Benutzerhandbuch |
0,9 MB | Download |
| Befehlszeilenhandbuch für die USV-Netzwerkmanagement-Karte 3 15/10/24 · Benutzerhandbuch | 1,2 MB | Download |
| Benutzerhandbuch für die USV-Netzwerkmanagement-Karte 3 15/10/24 · Benutzerhandbuch | 2,0 MB | Download |
| Network Management Card 3 (NMC 3) for Firmware v3.2.0.8 for Smart-UPS & v3.2.0.7 for 1-Phase Symmetra Release Notes 09/10/24 · Kurzanleitung | 0,2 MB | Download |
| NMC and Secure NMC System Overview Video
08/10/24 · Informationsvideo |
0,3 MB | Download |
| NMC Overview Video
08/10/24 · Informationsvideo |
0,3 MB | Download |
| Secure NMC System FAQ 07/10/24 · Kurzanleitung | 0,3 MB | Download |
| Network Management Card 3 - Security Handbook 30/09/24 · Kurzanleitung | 1,9 MB | Download |
| Network Management Card 3 - CLI (Command Line Interface) Guide 30/09/24 · Kurzanleitung | 1,7 MB | Download |
| Network Management Card 3 - IEC 62443-4-2 Certificate 27/09/24 · Zertifikat | 0,7 MB | Download |
| Network Management Card 3 - Smart-UPS Ultra 5-20 kW Release Notes 24/09/24 · Kurzanleitung | 0,3 MB | Download |
| Easy UPS 3-Phase Modular Technical Specifications
990-91580C-xxx · 19/09/24 · Specification guide |
6,6 MB | Download |
| UPS Network Management Cards, ENV Disclosure, PEP, Schneider Electric 18/09/24 · Produktumweltprofil | 1,0 MB | Download |
| UPS Network Management Card, Circualrity Profile,EOLI, Schneider Electric 18/09/24 · Entsorgungsinformation | 0,2 MB | Download |
| UK PSTI STATEMENT OF COMPLIANCE 17/09/24 · Zertifikat | 0,1 MB | Download |
| Letter to certify Product Manufacture Country of Origin
17/09/24 · Zertifikat |
0,1 MB | Download |
| UK Declaration of Conformity: AP9640 / AP9641 17/09/24 · Zertifikat | 0,3 MB | Download |
| DoC Declaration of Conformance to CE: NMC 3
17/09/24 · Zertifikat |
0,5 MB | Download |
| EMC Certificate of Conformity
17/09/24 · Zertifikat |
0,1 MB | Download |
| UPS Network Management Card - Product Center 16/09/24 · Kurzanleitung | 1,4 MB | Download |
| Network Management Card 3 - Installation Guide 16/09/24 · Kurzanleitung | 2,1 MB | Download |
| USV-Lösungen, Racks und PDUs - Katalog 2024
16/09/24 · Katalog |
20,9 MB | Download |
| UPS Network Management Card 3 Transition Details
16/09/24 · Katalog |
0,6 MB | Download |
| Security Updates for Network-Enabled Devices
16/09/24 · Kurzanleitung |
0,2 MB | Download |
| Applicate Note: Network Management Card 3 local witness for Cisco Hyperflex 2-node edge clusters 16/09/24 · Anwendungshinweise | 0,4 MB | Download |
| UPS Network Management Card 3 - Copyright Notices
16/09/24 · Kurzanleitung |
0,3 MB | Download |
| APC UPS Network Management Card Statement of Volatility (SoV) and Secure Disposal 16/09/24 · Benutzerhandbuch System & Lösung | 3,8 MB | Download |
| Modbus Register Map - MGE Galaxy, Smart-UPS VT, and Smart-UPS 16/09/24 · Benutzerhandbuch System & Lösung | 0,3 MB | Download |
| Modbus Register Map for Symmetra Single Phase UPS
16/09/24 · Benutzerhandbuch System & Lösung |
0,2 MB | Download |
| Modbus Register Map for Smart-UPS models with prefix SMT, SMX, SURTD, and SRT
16/09/24 · Benutzerhandbuch System & Lösung |
0,3 MB | Download |
| Security Updates for Network-Enabled Devices
15/09/24 · Präsentation |
0,2 MB | Download |
| Network Management Card 3 (NMC3) Firmware v3.1.1.2 for Smart-UPS Ultra (SUCAN) with AP9640/41/43 via Secure NMC System (SNS) Tool 15/09/24 · Software - Release | 49,8 MB | Download |
| Easy UPS 3-Phase Modular ASI 50-250 kW Caractéristiques techniques
990-91580B-012 · 15/09/24 · User guide |
6,6 MB | Download |
| Easy UPS 3-Phase Modular SAI de 50-250 kW Especificaciones técnicas
990-91580B-006 · 15/09/24 · User guide |
6,7 MB | Download |
| Easy UPS 3-Phase Modular 50-250 kW Installazione
990-6538A-017 · 15/09/24 · User guide |
14,5 MB | Download |
| Easy UPS 3-Phase Modular 50 à 250 kW Installation
990-6538B-012 · 15/09/24 · User guide |
16,2 MB | Download |
| NMC Security Wizard CLI Utility 15/09/24 · Software - Release | 0,6 MB | Download |
| Network Management Card 3 (NMC3) Firmware v3.1.1.1 for Smart-UPS (SU) with AP9640/41/43 via Secure NMC System (SNS) Tool 15/09/24 · Software - Release | 49,5 MB | Download |
| PowerNet MIB v4.5.1 15/09/24 · Firmware | 2,9 MB | Download |
| Network Management Card 3 (NMC3) v2.5.0 Firmware for Symmetra PX with AP9640/41/43 15/09/24 · Firmware | 4,0 MB | Download |
| PowerNet MIB v4.5.2 15/09/24 · Firmware | 2,9 MB | Download |
| Network Management Card 3 (NMC 3) Firmware v2.5.2.3 for Easy UPS 3-Phase Modular UPS / Galaxy PX UPS and Easy UPS 3M Advanced 15/09/24 · Firmware | 4,0 MB | Download |
| UPS Network Management Card 3 (NMC3) Firmware v2.5.1 for Smart-UPS Ultra 15/09/24 · Firmware | 4,4 MB | Download |
| Easy UPS 3p Modular
15/09/24 · Brochure |
3,0 MB | Download |
| Easy UPS 3-Phase Modular 50–250 kW Montage
990-6538A-005 · 15/09/24 · User guide |
14,5 MB | Download |
| Network Management Card 3 (NMC3) Firmware v2.5.0.3 for Symmetra with AP9640/41/43 15/09/24 · Firmware | 3,7 MB | Download |
| Network Management Card 3 (NMC3) Firmware v2.5.0.6 for Smart UPS with AP9640/41/43 15/09/24 · Firmware | 4,1 MB | Download |
| AP9640 EU-RoHS-Erklärung
15/09/24 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Copyright-Hinweise für die Netzwerkmanagement-Karte 3 12/09/24 · Benutzerhandbuch | 0,2 MB | Download |
| AP9640 REACh-Erklärung
11/09/24 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Network Management Card 3 (NMC3) Firmware v2.3.1.1 for Smart UPS with AP9640/41/43 21/11/22 · Firmware | 4,0 MB | Download |
| Network Management Card 3 (NMC3) Firmware v2.2.1.1 for Smart UPS with AP9640/41/43 15/10/22 · Firmware | 4,1 MB | Download |
| 01/01/70 Software - Release | 0,0 MB | Download |
| 01/01/70 Firmware | 0,0 MB | Download |
| 01/01/70 Software - Release | 0,0 MB | Download |
