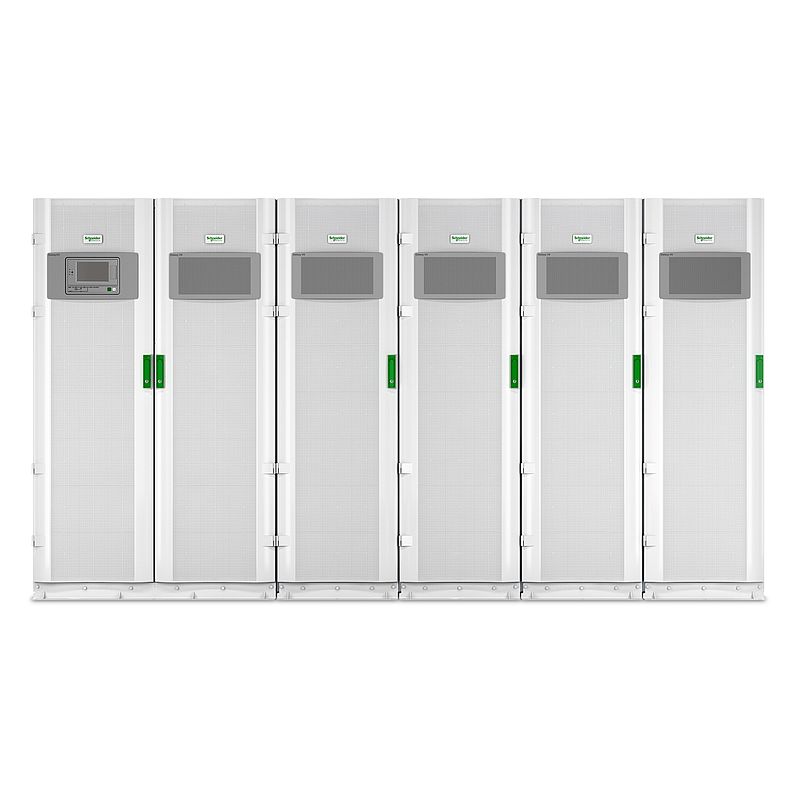

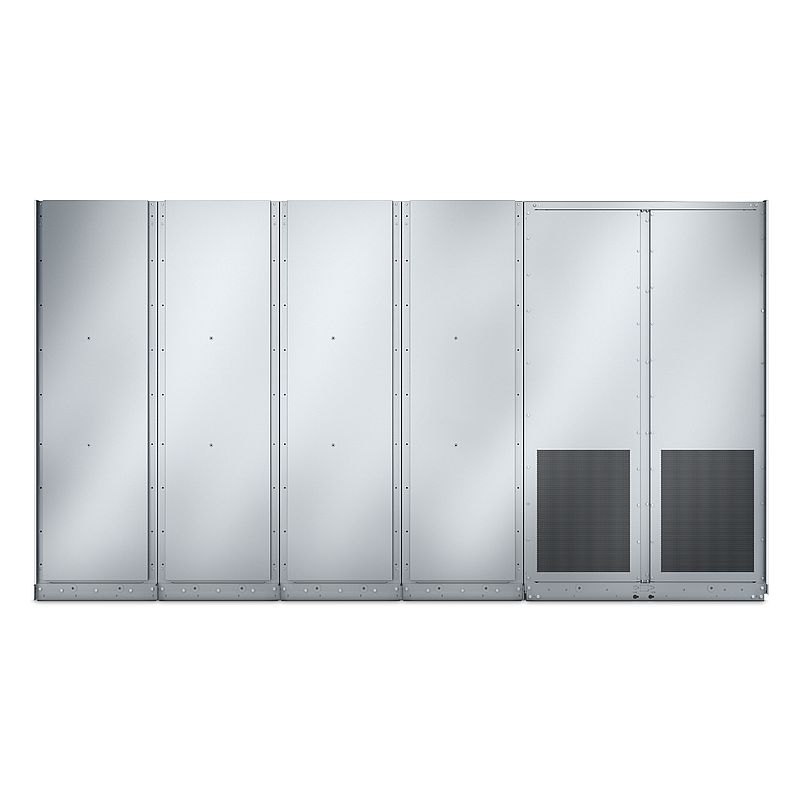

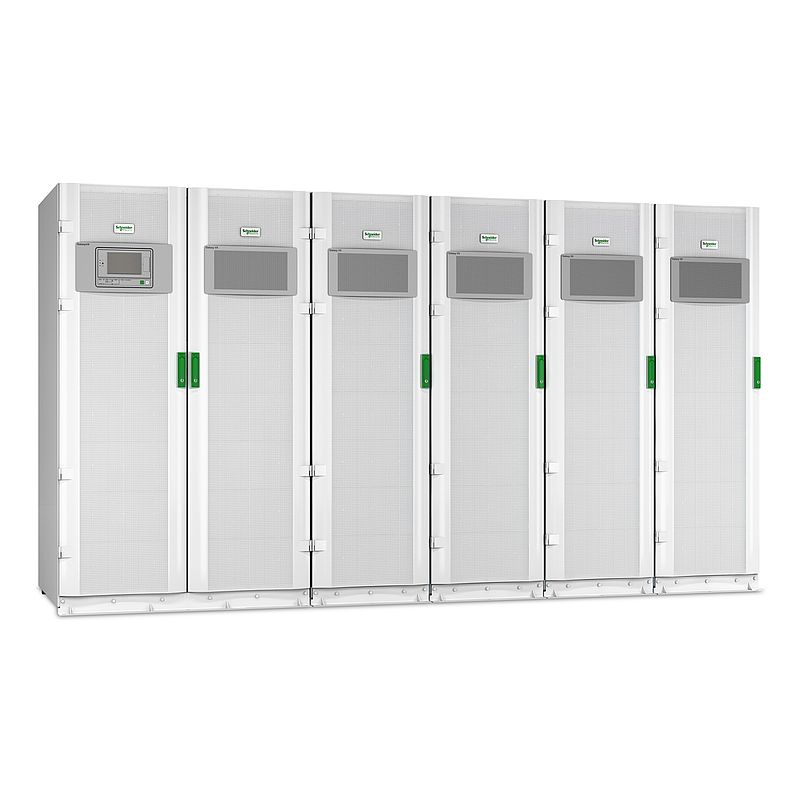

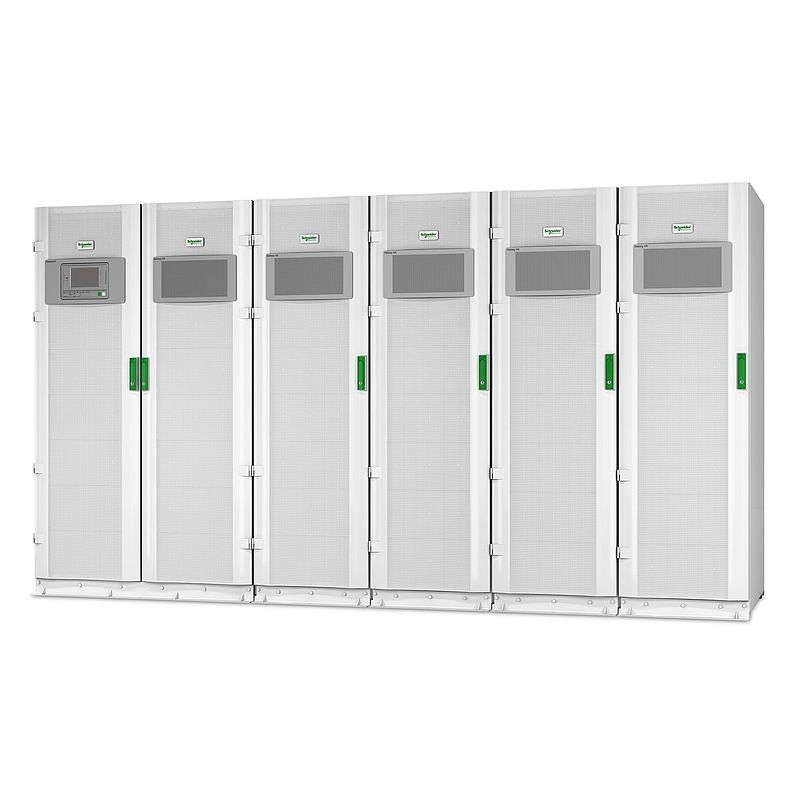

Galaxy VX 1000 kVA, 400 V, Start-up-Service 5 x 8
GVX1000K1000NHS
Hauptdokumente
Produktdatenblatt | Download |
Technical Drawing | Download |
Specification guide | Download |
BIM Model | Download |
User guide | Download |
Promotional video | Video anzeigen |
Certificate | Download |
Declaration of conformity | Download |
Declaration of Conformity (Sustainability) | Download |
Environmental Disclosure | Download |
Brochure | Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Kommunikations-Artikel: Kompatible Produkte
Leistungsmodule: Kompatible Produkte
Spezifikationen
Übersicht | |
---|---|
Ausführung | A highly efficient, modular, 1000 kVA 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure Ready UPS features up to 99% efficiency with patented ECOnversion technology. Includes 5x8 start-up service. |
Lieferzeit | Sonderbestellung - Lieferzeit auf Anfrage | Hauptmerkmale |
Haupteingangsspannung | 400 V 3 Phasen |
Weitere Eingangsspannung | 380 V 415 V 440 V |
Hauptausgangsspannung | 400 V3 Phasen |
Weitere Ausgangsspannung | 380 V 415 V 440 V |
Bemessungsleistung in W | 1000 kW |
Nennleistung in VA | 1000 kVA |
Batterietyp | Externes Batteriesystem |
geliefertes Zubehör | Installationsanleitung Inbetriebnahme-Service | Allgemein |
Redundant | No | Abmessungen |
Farbe | Weiß |
Höhe | 197 cm |
Breite | 360 cm |
Tiefe | 90 cm |
Produktgewicht | 3110 kg |
USB-kompatibel | No | Eingang |
Netzwerkfrequenz | 40 - 70 Hz |
Max. Eingangsstrom | 1702 A |
Max. Kurzschlussfestigket (Icw) | 100 kA |
Oberschwingungsverzerrung am Eingang | Weniger als 3 % bei Volllast |
Leistungsfaktor der Last | Von 0,7 kapazitiv bis 0,5 induktiv ohne leistungsreduzierung | Ausgang |
Max. konfigurierbare Leistung in W | 1000 kW |
Ausgangsfrequenz | 50 Hz Netzsynchronisation 60 Hz Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
Scheitelfaktor | 3 mit THC < 5 % |
Oberschwingungsverzerrung am Ausgang | < 2% linear load and < 3% non-linear load |
Überlastbetrieb des Ausgangs | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
Max. konfigurierbare Leistung in VA | 1000 kVA |
Wave type | Sinuswelle | Konformität |
Produktzertifizierungen | cUL-gelistet C-Tick CE UL 1778 5. Auflage |
Normen | ETL IBC 2012 IEC 62040-1-1 IEC 62040-2 IEC 62040-3 IEC 62040-4 ISTA 2B | Umgebung |
Umgebungstemperatur bei Betrieb | 0…40 °C |
Relative Luftfeuchtigkeit | 0…95 % nicht kondensierend |
Betriebshöhe | 0 - 3.333 ft |
Umgebungstemperatur bei Lagerung | -15…40 °C |
Relative Feuchtigkeit bei Lagerung | 0…95 % nicht kondensierend |
Aufbewahrungshöhe | 0,0000000000…15240,0000000000 m |
Geräuschpegel | 69.5 dBA |
Wärmeabgabe | 175802 Btu/h |
Schutzart (IP) | IP20 | Batterien und Überbrückungszeit |
Batteriespannung | 480 V |
Batteriespannung entladen | 384 V DC |
Batterieleistung in VAh | 0 VAh Laufzeit | Kommunikation & Management |
freie Steckplätze | 2 |
Bedienfeld | 7" touch screen display | Verpackungseinheiten |
VPE 1 Gewicht | 4680 kg |
VPE 1 Höhe | 215 cm |
VPE 1 Breite | 106 cm |
VPE 1 Länge | 465 cm |
VPE 1 Art | PCE |
VPE 1 Menge | 1 | Vertragliche Gewährleistung |
Gewährleistung | Ein Jahr Vor-Ort-Reparatur oder Austausch mit werkseitig autorisierter Inbetriebnahme |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitEU-RoHS-Richtlinie | Konform mit Ausnahmen |
WEEE | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
