Spezifikationen

Übersicht

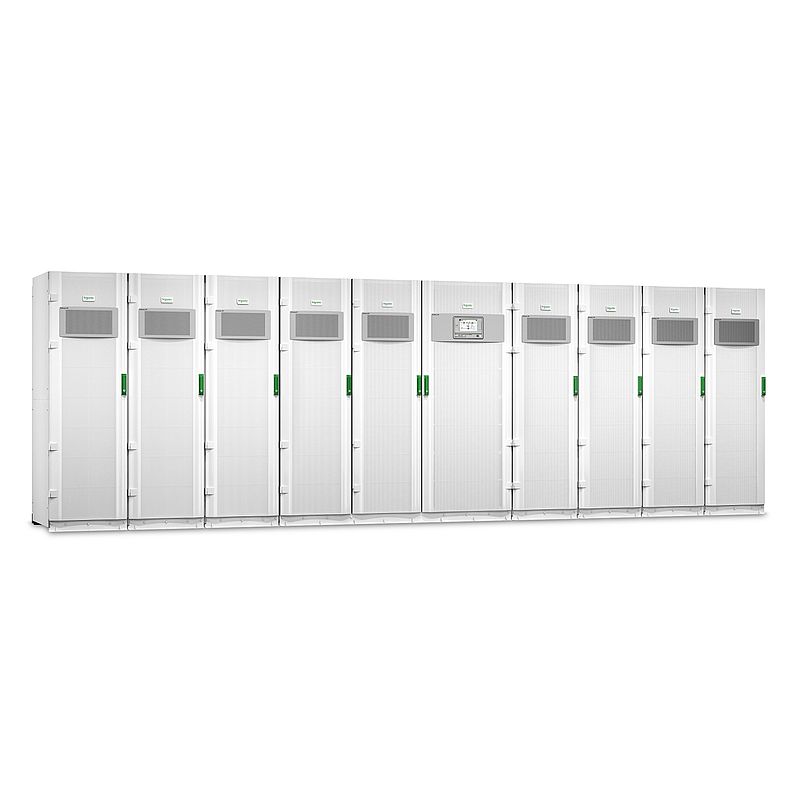

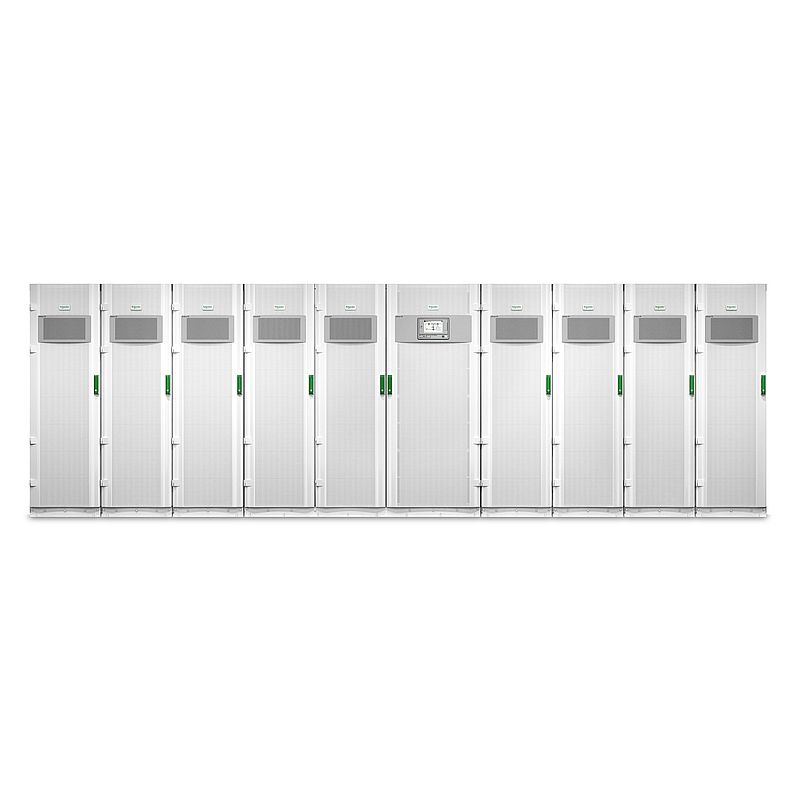

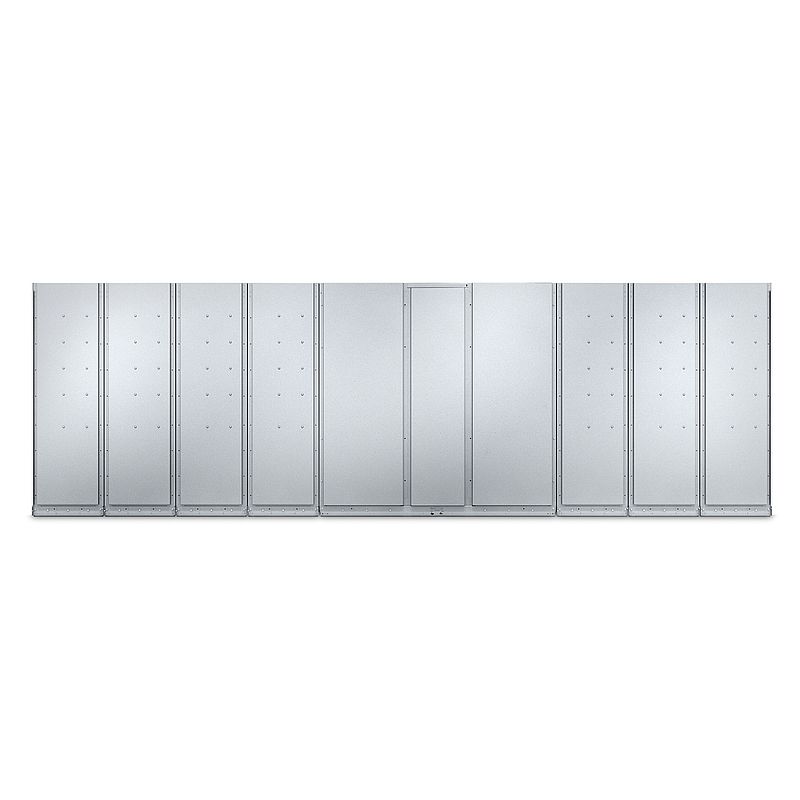

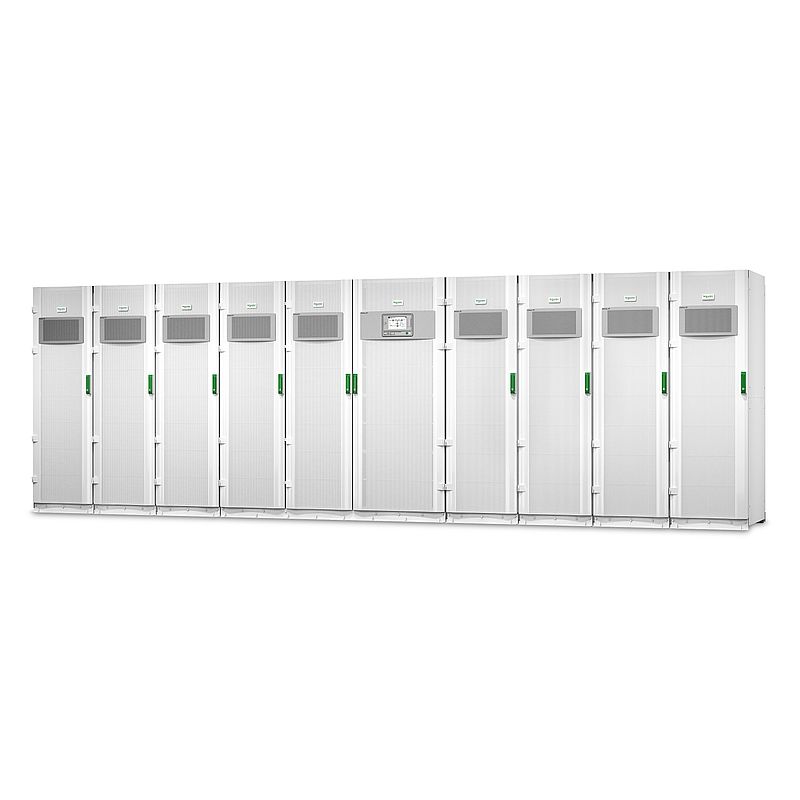

AusführungA highly efficient, modular, 1500 kVA N+1 3-phase UPS that provides the performance, flexibility, and maximized asset utilization today’s large data centers and mission critical applications require. This EcoStruxure connected UPS features up to 99% efficiency in eConversion mode. Includes 5x8 start-up service.
LieferzeitSonderbestellung - Lieferzeit auf Anfrage
Hauptmerkmale
Haupteingangsspannung400 V 3 Phasen
Weitere Eingangsspannung380 V
415 V
440 V
Hauptausgangsspannung400 V3 Phasen
Weitere Ausgangsspannung380 V
415 V
440 V
Bemessungsleistung in W1500 kW
Nennleistung in VA1500 kVA
BatterietypExternes Batteriesystem
geliefertes ZubehörInstallationsanleitung
Inbetriebnahme-Service
Allgemein
RedundantYes
Abmessungen
FarbeWeiß
Höhe197 cm
Breite620 cm
Tiefe90 cm
Produktgewicht4530 kg
USB-kompatibelNo
Eingang
Netzwerkfrequenz40 - 70 Hz
Anzahl der Eingangsanschlüsse1 fest verdrahtet 4-adrig (3P + E)
Max. Eingangsstrom2552 A
Max. Kurzschlussfestigket (Icw)100 kA
Oberschwingungsverzerrung am EingangWeniger als 3 % bei Volllast
Leistungsfaktor der LastVon 0,7 kapazitiv bis 0,5 induktiv ohne leistungsreduzierung
Eingangsleistungsfaktor bei Volllast1
Ausgang
Max. konfigurierbare Leistung in W1500 kW
Ausgangsfrequenz50 Hz Netzsynchronisation
60 Hz Netzsynchronisation
50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert
Scheitelfaktor3 mit THC < 5 %
Oberschwingungsverzerrung am Ausgang< 2% linear load and < 3% non-linear load
Überlastbetrieb des Ausgangs10 Minuten bei 125 % und 60 Sekunden bei 150 %
Max. konfigurierbare Leistung in VA1500 kVA
Wave typeSinuswelle
Konformität
ProduktzertifizierungenC-Tick
CE
NormenEN/IEC 62040-1
EN/IEC 62040-2
EN/IEC 62040-3
IBC 2012
IEC 62040-4
ISTA 2B
Umgebung
Umgebungstemperatur bei Betrieb0…40 °C
Relative Luftfeuchtigkeit0…95 % nicht kondensierend
Betriebshöhe0 - 3.333 ft
Umgebungstemperatur bei Lagerung-15…40 °C
Relative Feuchtigkeit bei Lagerung0…95 % nicht kondensierend
Aufbewahrungshöhe0,00…15240,00 m
Geräuschpegel68 dBA
Wärmeabgabe261497 Btu/h
Schutzart (IP)IP20
Batterien und Überbrückungszeit
Batteriespannung480 V
Batteriespannung entladen384 V DC
Batterieleistung in VAh0 VAh Laufzeit
Kommunikation & Management
freie Steckplätze2
Bedienfeld7" touch screen display
Verpackungseinheiten
VPE 1 Gewicht5825 kg
VPE 1 Höhe215 cm
VPE 1 Breite106 cm
VPE 1 Länge738 cm
VPE 1 ArtPCE
VPE 1 Menge1
Vertragliche Gewährleistung
GarantieEin Jahr Vor-Ort-Reparatur oder Austausch mit werkseitig autorisierter Inbetriebnahme

Nachhaltigkeit

Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.

Weitere Informationen

Nachhaltigkeit
EU-RoHS-Richtlinie Konform mit Ausnahmen
Optimierte Energieeffizienz Energieeffizientes Produkt
