Dieses Produkt ist kompatibel mit


Spezifikationen

Hauptmerkmale
Baureihe Merten
Kompatible Produktfamilie PlusLink

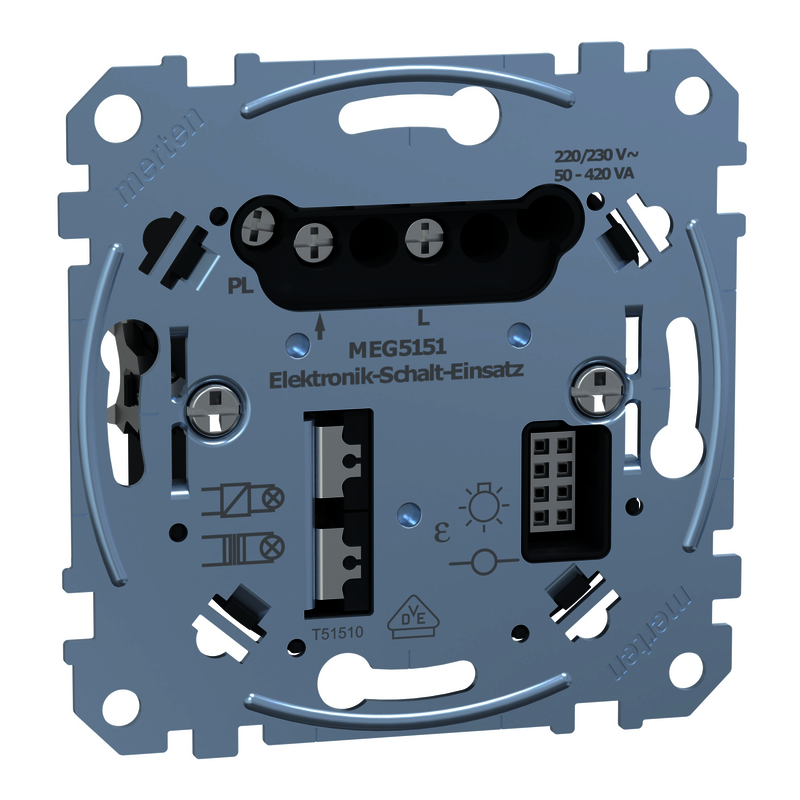

Produkt- oder Komponententyp Multifunktionssteuergerät
Gerätedarstellung Mechanismus mit Befestigungsrahmen
Produktname Flush-Mounted Inserts
Zusatzmerkmale
Geräteanwendung Beleuchtungssteuerung
Typ der Technologie Elektronisch
Gehäusevariante Einbau
Befestigungsmodus Durch Schrauben und Krallen
Anzahl der Wippen 1
Lasttyp Ohmsch: 50 - 420 VA
Induktiv: 50 - 420 VA
[Ue] Bemessungs-Betriebsspannung 220/230 V AC 50/60 Hz
Umgebungstemperatur bei Betrieb -5…35 °C
Schutzart (IP) IP20
Höhe 71 mm
Breite 71 mm
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Gewicht 112,000 g
VPE 1 Höhe 5,500 cm
VPE 1 Breite 7,600 cm
VPE 1 Länge 7,600 cm
VPE 2 Art CAR
VPE 2 Menge 50
VPE 2 Gewicht 5,908 kg
VPE 2 Höhe 19,400 cm
VPE 2 Breite 31,100 cm
VPE 2 Länge 40,400 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Environmental data
WEEE Das Produkt muss nach der spezifischen Abfallsammlung auf den Märkten der Europäischen Union entsorgt werden und darf nicht in Abfalleimer gelangen
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Nein
SCIP-Nummer 162129fd-2e8d-40f3-969a-c6d126c1abf8
Rücknahme No

Dokumente

Aktueller Filter
  • Dokumentenkategorie
  • Sprache
13 Dokumente
Merten Katalog
27/02/25 · Katalog
81,6 MB Download
MEG5151-0000 China-RoHS-Erklärung
25/02/25 · Umweltzertifikat  (ROHS/REACH)
0,2 MB Download
Elektronik-Schalt-Einsatz, MEG515x-0000, Bedienungsanleitung, de
15/02/25 · Benutzerhandbuch
1,3 MB Download
Wiser Germany
15/02/25 · Katalog
45,3 MB Download
Elektronik-Schalt-Einsatz, MEG515x-0000, Installationsanleitung, de
15/02/25 · Gebrauchsanleitung
3,0 MB Download
PlusLink, Wiser Taster-Modul, Technische Informationen 15/02/25 · Benutzerhandbuch System & Lösung 32,7 MB Download
Base de Interruptor electrónico, MEG515x-0000, Guía del usuario, es
21/01/25 · Benutzerhandbuch
1,3 MB Download
Insert de commutateur électronique, MEG515x-0000, Guide de l'utilisateur, fr
21/01/25 · Benutzerhandbuch
1,4 MB Download
Electronic switch insert, MEG515x-0000, User Guide, en
21/01/25 · Benutzerhandbuch
1,3 MB Download
VDE Ausweis 15/11/24 · Zertifikat 0,8 MB Download
Electronic switch insert, Pluslink, wiring diagram (en) 27/09/24 · Technische Zeichnung 0,0 MB Download
Video - Willkommen im Wiser Home!
16/09/24 · Präsentation
0,3 MB Video anzeigen
EU Konformitätserklärung 14/09/24 · Konformitätserklärung 1,0 MB Download
