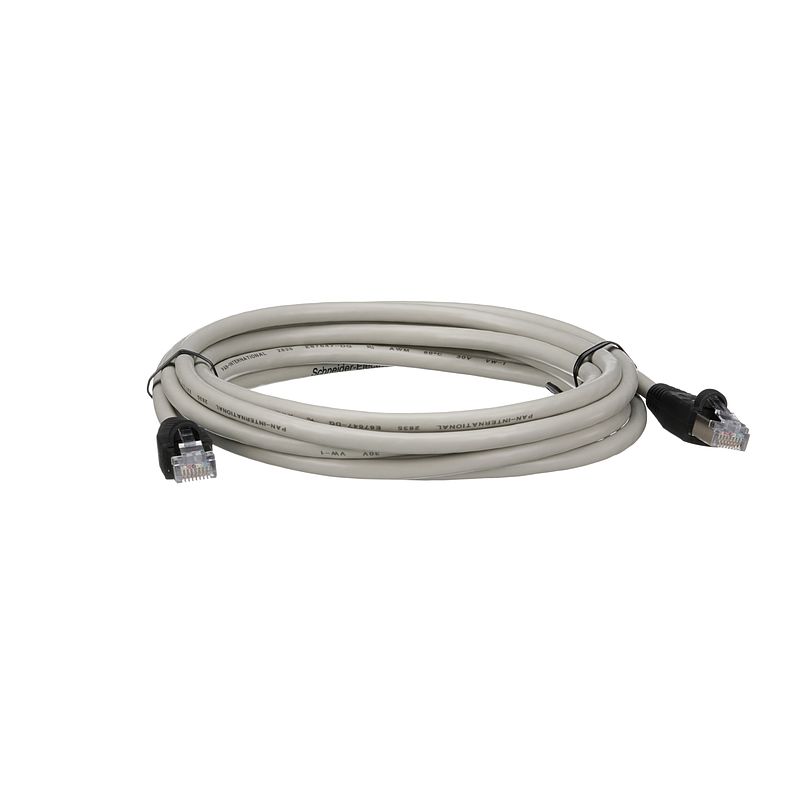

Kab. f. dez. Montage, 3m, f. dez. Bedienterminal f. ATV61/71/Lexium Controller
VW3A1104R30
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Umweltzertifikat (ROHS/REACH)
|
Download |
|
Informationsblatt
|
Download |
|
Katalog
|
Download |
|
Gebrauchsanleitung
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Zubehör / Teiletyp | Remote-Kabel |
| Produktkompatibilität | VW3A1101 VW3M1701 |
| Zubehör / Zielkategorie | Dezentrales Grafikterminal |
| Kompatible Produktfamilie | Altivar 71Q Altivar 212 Easy Altivar 610 Altivar Prozess ATV600 Altivar 32 Altivar 312 Altivar 61Q Altivar 61 Easy Altivar 310 Altivar Prozess ATV900 Altistart 22 Altivar Maschine ATV340 Altivar 71 Altivar 12 Altivar 312 Solar Altivar Maschine ATV320 Lexium 32 |
| Kabellänge | 3 m |
| Produkt- oder Komponententyp | Anschlusskabel |
| Zusatzmerkmale | |
| Elektrische Verbindung | 2 Stecker |
| Anschlusstyp | RJ45 |
| Produktgewicht | 0,15 kg |
| Verpackungseinheiten | |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Gewicht | 139,000 g |
| VPE 1 Höhe | 3,000 cm |
| VPE 1 Breite | 13,000 cm |
| VPE 1 Länge | 14,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 50 |
| VPE 2 Gewicht | 7,645 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 3 Art | P06 |
| VPE 3 Menge | 400 |
| VPE 3 Gewicht | 70,204 kg |
| VPE 3 Höhe | 75,000 cm |
| VPE 3 Breite | 60,000 cm |
| VPE 3 Länge | 80,000 cm |
| Vertragliche Gewährleistung | |
| Gewährleistung | 18 months |
Nachhaltigkeit
Environmental data
| REACh frei von SVHC | Ja |
EU-RoHS-Richtlinie
|
Proaktive Einhaltung (Produkt fällt nicht unter die rechtlichen Bestimmungen von EU RoHS) EU-RoHS-Deklaration |
| Rücknahme | No |
