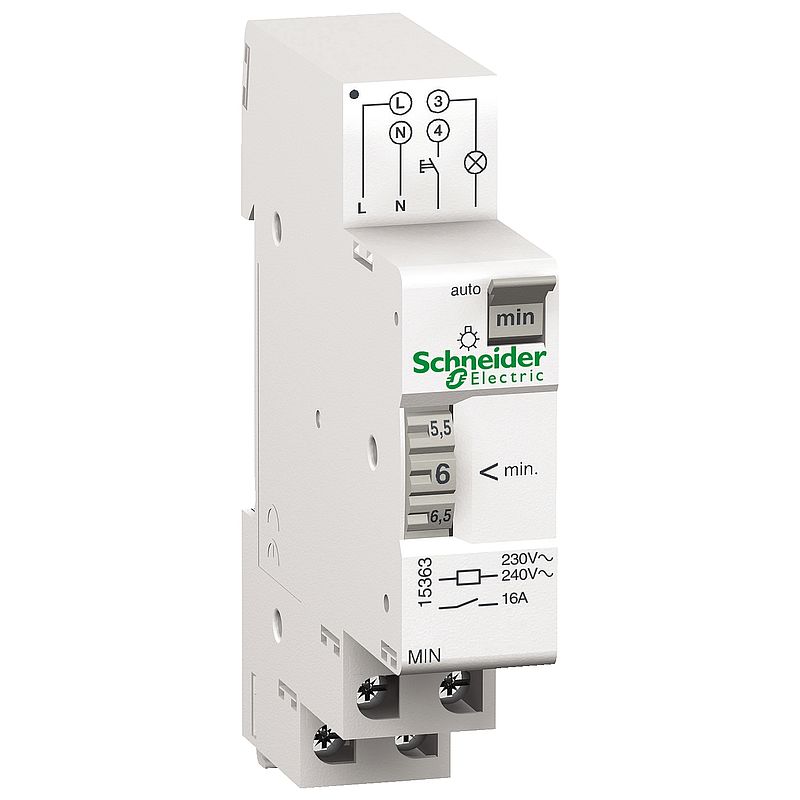

Elektromechanischer Treppenlichtzeitschalter MIN, 1 bis 7 Minuten
15363
Materialpreisgruppe : D3
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
Specification guide | Download |
Declaration of conformity | Download |
Brochure | Download |
Application Notes | Download |
User guide | Download |
CAD | Download |
Catalog | Download |
Circularity Profile | Download |
Environmental Disclosure | Download |
Spezifikationen
Hauptmerkmale | |
---|---|
Produktsortiment | Acti9 |
Produktname | Acti 9 MIN |
Kurzbezeichnung des Geräts | MIN |
Produkt- oder Komponententyp | Elektromechanischer Timer |
Farbton | Weiß (RAL 9003) | Zusatzmerkmale |
Geräteanwendung | Gebäude |
Lasttyp | Parallel-korrigierte Leuchtstofflampe 14 x 40 W 4,7 µF Parallel-korrigierte Leuchtstofflampe 10 x 58 W 7 µF Parallel-korrigierte Leuchtstofflampe 3,0 x 100 W 18 µF 230 V AC Halogenlampe 2300 W 230 V AC Glühlampe 2300 W Fluokompakt-Lampe 2300 VA Kompakt-Leuchtstofflampe 21 x 7 W Kompakt-Leuchtstofflampe 13 x 11 W Kompakt-Leuchtstofflampe 10 x 15 W Kompakt-Leuchtstofflampe 7 x 20 W LED-Lampe < 2 W 30 W LED-Lampe > 2 W 300 W |
Max. Leistungsaufnahme in VA | 1 VA |
maximaler Schaltstrom | 16 A - 230 V AC pf = 1 |
[Ue] Betriebsbemessungsspannung | 230 V AC bei 50 Hz |
Zeitverzögerung | Einstellbar von 1 bis 7 Minuten |
Montagehalterung | DIN-Schiene |
9-mm-Raster | 2 |
Anschlüsse - Klemmen | Schraubklemmen - <= 6 mm² |
Breite | 18 mm |
Höhe | 83 mm |
Tiefe | 68 mm |
Produktgewicht | 84 g | Montage |
Umgebungstemperatur bei Betrieb | -10…50 °C |
Schutzart (IP) | IP20 B | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 82 g |
VPE 1 Höhe | 2 cm |
VPE 1 Breite | 7 cm |
VPE 1 Länge | 9,9 cm |
VPE 2 Art | BB1 |
VPE 2 Menge | 10 |
VPE 2 Gewicht | 865 g |
VPE 2 Höhe | 7,5 cm |
VPE 2 Breite | 10,5 cm |
VPE 2 Länge | 22 cm |
VPE 3 Art | S03 |
VPE 3 Menge | 110 |
VPE 3 Gewicht | 10,033 kg |
VPE 3 Höhe | 30 cm |
VPE 3 Breite | 30 cm |
VPE 3 Länge | 40 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 months |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie | Konform mit Ausnahmen |
Quecksilberfrei | Ja |
