Altivar Sanftanlasser ATS480, 140 A, 208-690V AC, Steuerspannung 110-230V AC

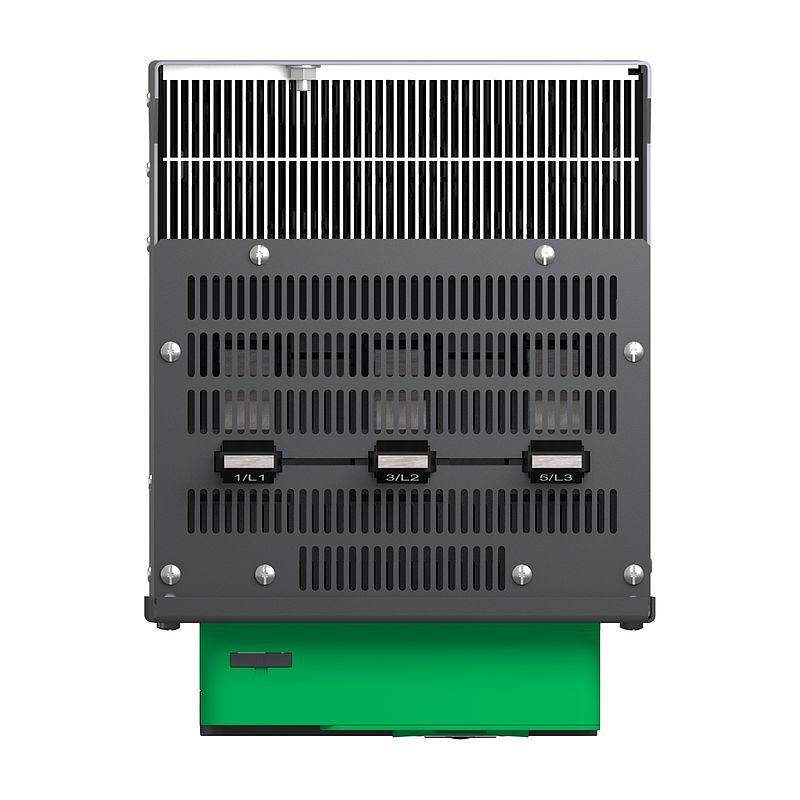

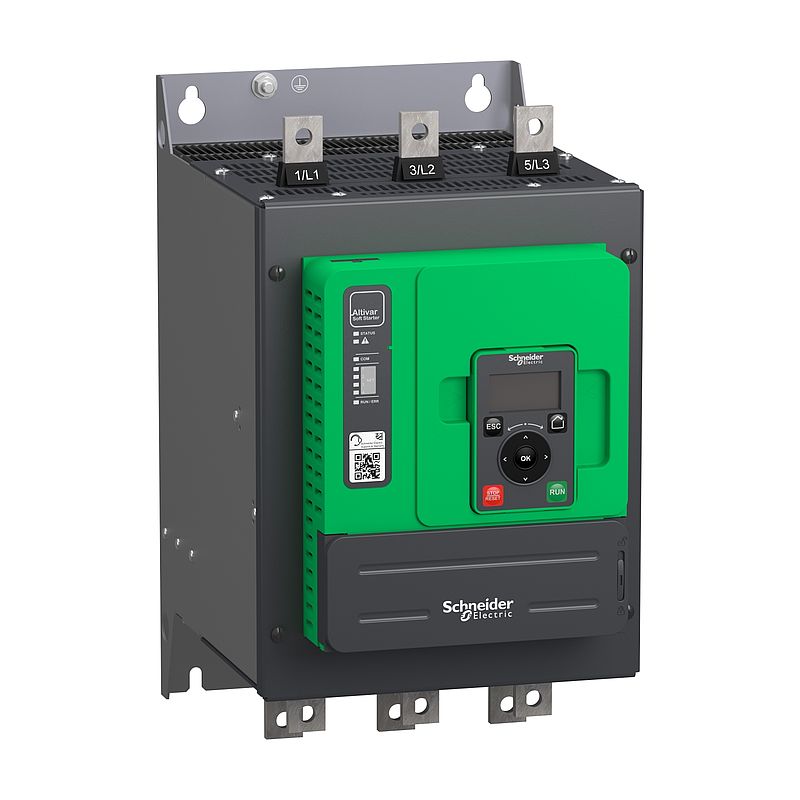

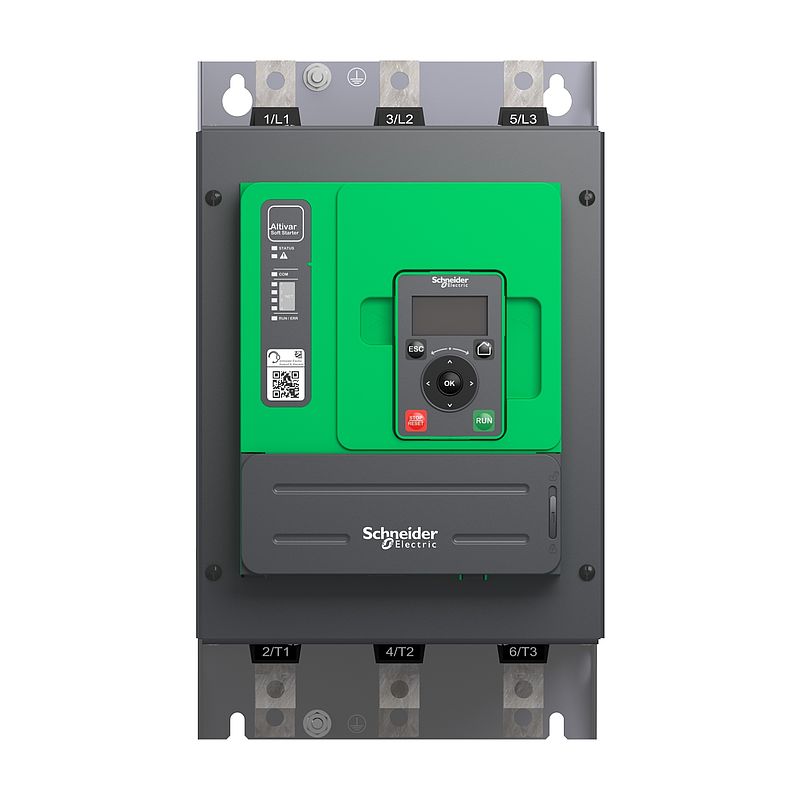

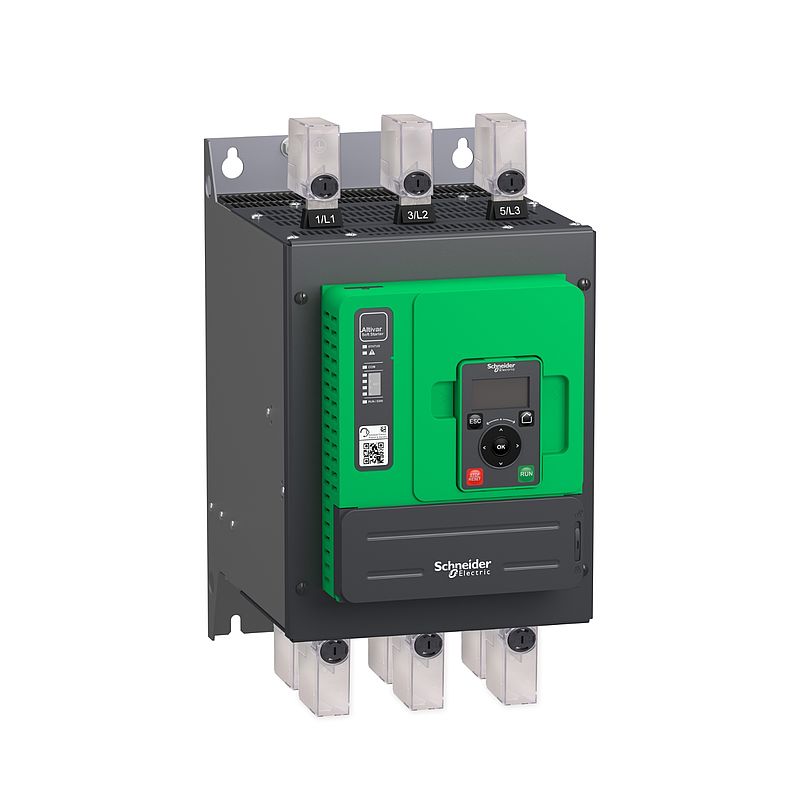

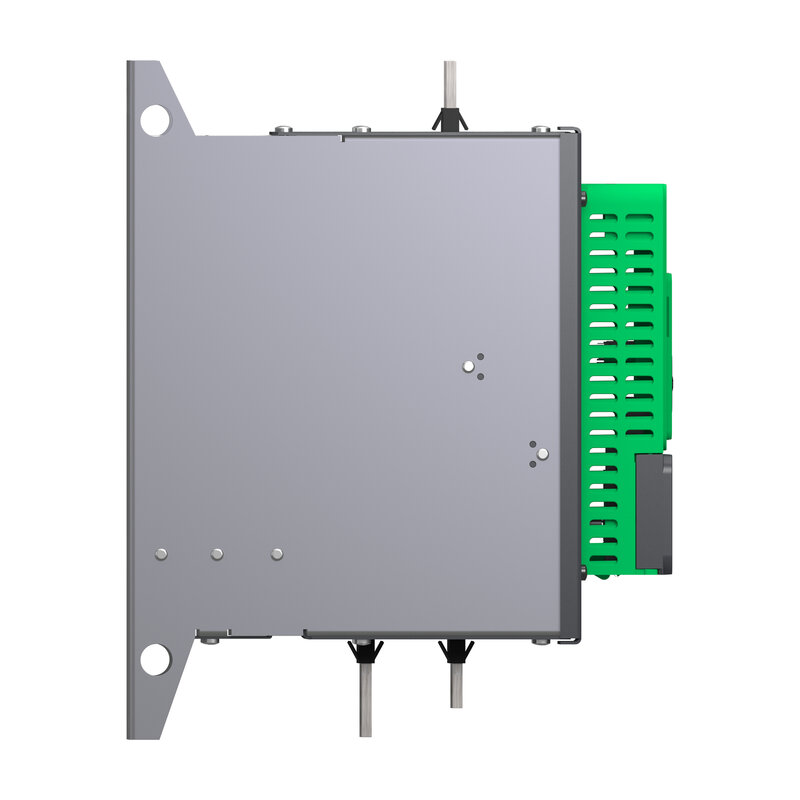

ATS480C14Y

Hauptdokumente

Produktdatenblatt Download
Offenlegung von Umweltinformationen Download
Umweltzertifikat (ROHS/REACH) Download
Entsorgungsinformation Download
Software - Released Download
Gebrauchsanleitung Download
Benutzerhandbuch Download
How To Video Video anzeigen
Informationsvideo Video anzeigen
Konformitätserklärung Download
CAD Download
Software - Data Library Download
CAE Download
Zertifikat Download
Katalog Download
Firmware Download

Spezifikationen

Hauptmerkmale
BaureiheAltivar Soft Starter ATS480
Produkt- oder KomponententypSanftanlasser
ProduktbestimmungAsynchronmotoren
Produktspezifische AnwendungProzesse und Infrastrukturen
Kurzbezeichnung des GerätsATS480
Anzahl der Netzphasen3 Phasen
NutzungskategorieAC-3A
AC - 53 A
Versorgungsspannung208 - 690 V -15 - +10 %
Frequenz der Stromversorgung50 - 60 Hz -20 - +20 %
[Ie] BetriebsbemessungstromNormalbetrieb: 140,0 A (bei <40 °C)
Bemessungsstrom im Schwerlastbetrieb110,0 A bei 40 °C für Schwerlastbetrieb
DrehmomentsteuerungRichtig
Schutzart (IP)IP00
Motorleistung (kW)37,0 kW bei 230 V in der Motorversorgungsleitung Normalbetrieb
30,0 kW bei 230 V in der Motorversorgungsleitung Schwerlastbetrieb
75,0 kW bei 400 V in der Motorversorgungsleitung Normalbetrieb
55,0 kW bei 400 V in der Motorversorgungsleitung Schwerlastbetrieb
75,0 kW bei 440 V in der Motorversorgungsleitung Normalbetrieb
55,0 kW bei 440 V in der Motorversorgungsleitung Schwerlastbetrieb
90,0 kW bei 500 V in der Motorversorgungsleitung Normalbetrieb
75,0 kW bei 500 V in der Motorversorgungsleitung Schwerlastbetrieb
90,0 kW bei 525 V in der Motorversorgungsleitung Normalbetrieb
75,0 kW bei 525 V in der Motorversorgungsleitung Schwerlastbetrieb
110,0 kW bei 660 V in der Motorversorgungsleitung Normalbetrieb
90,0 kW bei 660 V in der Motorversorgungsleitung Schwerlastbetrieb
110,0 kW bei 690 V in der Motorversorgungsleitung Normalbetrieb
90,0 kW bei 690 V in der Motorversorgungsleitung Schwerlastbetrieb
75,0 kW bei 230 V in die Dreieckschaltung des Motors Normalbetrieb
55,0 kW bei 230 V in die Dreieckschaltung des Motors Schwerlastbetrieb
110,0 kW bei 400 V in die Dreieckschaltung des Motors Normalbetrieb
90,0 kW bei 400 V in die Dreieckschaltung des Motors Schwerlastbetrieb
Motorleistung (HP)40,0 hp bei 208 V Normalbetrieb
30,0 hp bei 208 V Schwerlastbetrieb
50,0 hp bei 230 V Normalbetrieb
40,0 hp bei 230 V Schwerlastbetrieb
100,0 hp bei 460 V Normalbetrieb
75,0 hp bei 460 V Schwerlastbetrieb
125,0 hp bei 575 V Normalbetrieb
100,0 hp bei 575 V Schwerlastbetrieb
OptionskarteKommunikationsmodul für Profibus DP V1
Kommunikationsmodul für Profinet
Kommunikationsmodul für Modbus TCP/EtherNet/IP
Kommunikationsmodul für CANopen Daisy Chain
Kommunikationsmodul für CANopen Sub-D
Kommunikationsmodul für CANopen Open Style
Zusatzmerkmale

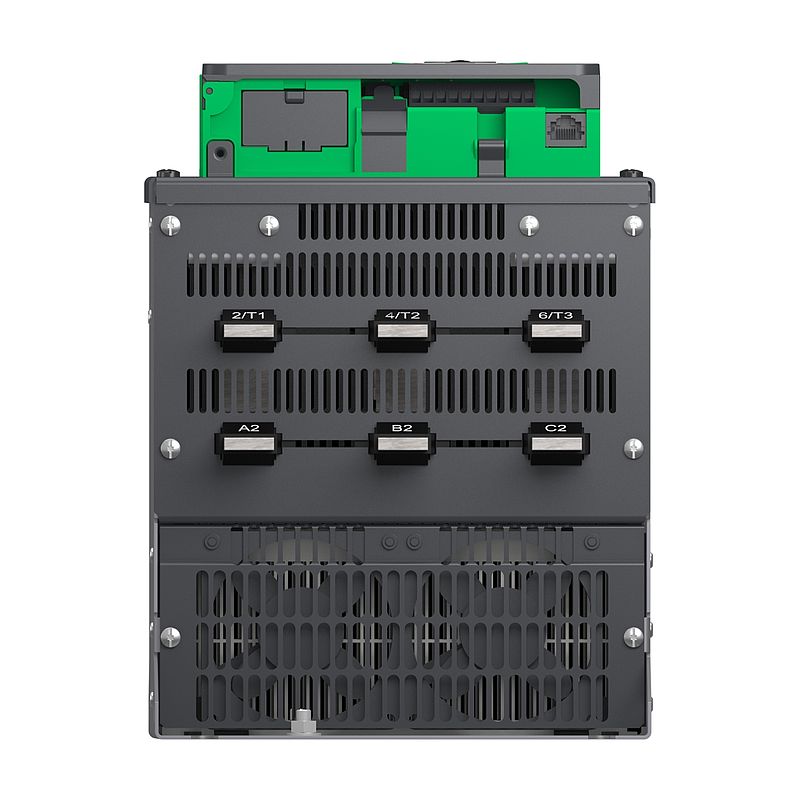

GeräteanschlussIn der Motorversorgungsleitung
In die Dreieckschaltung des Motors
[Us] Steuerspannung110 - 250 V AC 50/60 Hz -15 - +10 %
Scheinleistung0,09 kVA
integrierter MotorüberlastungsschutzRichtig
thermische Schutzklasse des MotorsKlasse 10E
SchutzfunktionenPhasenausfall: Linie
Integrierter thermischer Schutz: Motor
Thermischer Schutz: Starter
Stromüberlastung: Motor
Unterbelastung: Motor
Anlaufzeit zu lang, blockierter Rotor: Motor
Ausfall Motorphase: Motor
Phasenausfallserkennung der Versorgungsspannung: Linie
Phasenausfallserkennung der Versorgungsspannung: Motor
Thermischer Schutz: Motor
Strombegrenzung % In (max. 5 x Ie)150…700 %
Spezifikation des Nennstroms und des Stromverlusts140,0 A
Verlustleistung stromunabhängig25,0 W
Verlustleistung pro Gerät stromabhängig366,0 W
NormenIEC 60947-4-2
UL 60947-4-2
IEC 60664-1
ProduktzertifizierungenCE
cULus
CCC
UKCA
RCM
EAC
DNV
ABS
BV
CCS
BeschriftungCE
CCC
UKCA
EAC
RCM
CULus
[Uc] Steuerkreisspannung24 V DC
Diskrete Eingangsnummer4
Digitaler Eingang (STOP) Logikeingänge, 3.500 Ohm
(RUN) Logikeingänge, 3.500 Ohm
(DI3) programmierbar als Logikeingang, 3.500 Ohm
(DI4) programmierbar als Logikeingang, 3.500 Ohm
Eingangs-KompatibilitätSTOP: einzelner Eingang Level 1 SPS entspricht IEC 61131-2
RUN: einzelner Eingang Level 1 SPS entspricht IEC 61131-2
DI3: einzelner Eingang Level 1 SPS entspricht IEC 61131-2
DI4: einzelner Eingang Level 1 SPS entspricht IEC 61131-2
digitaler LogikeingangProgrammierbarer digitaler Eingang bei Status 0: < 5 V
Relaisausgangsnummer3
Ausgangsart des RelaisRelaisausgänge R1A 1 S
Relaisausgänge R1B 1 S
Relaisausgänge RIC 1 S / 1 Ö programmierbar
Min. Schaltstrom100 mA bei 12 V DC für Relaisausgänge
Max. SchaltstromRelaisausgänge 2 A bei 250 V AC
Relaisausgänge 2 A bei 30 V DC
Relaisausgänge
Diskrete Ausgangsnummer2
Digitaler Ausgang (DQ1) programmierbarer digitaler Ausgang <= 30 V
(DQ2) programmierbarer digitaler Ausgang <= 30 V
AuthentifizierungOffener Kollektor Level 1 SPS entspricht IEC 65A-68
Anzahl der Analogeingänge1
MesseingängeAI1/PTC PTC/Pt 100 Temperaturfühler
PTC2 PTC/Pt 100 Temperaturfühler
PTC3 PTC/Pt 100 Temperaturfühler
Anzahl der Analogausgänge1
Typ des AnalogausgangsStromausgang AQ1: 0 - 20 mA oder 0 - 10 V, Impedanz <500 Ohm
KommunikationsprotokollModbus, seriell
Anschlusstyp1 RJ45
KommunikationsdatenverbindungSeriell
Physikalische Schnittstelle2-Draht- RS 485
Übertragungsgeschwindigkeit1.200 - 256.000 bit/s
ÜbertragungsrahmenRTU
Datenformat8 Bits, einstellbar auf ungerade, gerade oder keine Parität
PolarisierungsartKeine Impedanz für Modbus, seriell
Anzahl der Adressen0…227 für Modbus, seriell
ZugriffsmethodeSlave Modbus, seriell
Funktion verfügbarExterne Bypass-Steuerung
Vorheizung
Entrauchung
Mehrmotorige Kaskade
Zweiter Motorsatz
Benutzerverwaltung
Sicherung von Anschlüssen und Verbindungen
Sicherheits-Ereignisprotokollierung
Cybersecure Firmware-Update
Einzelne Richtung

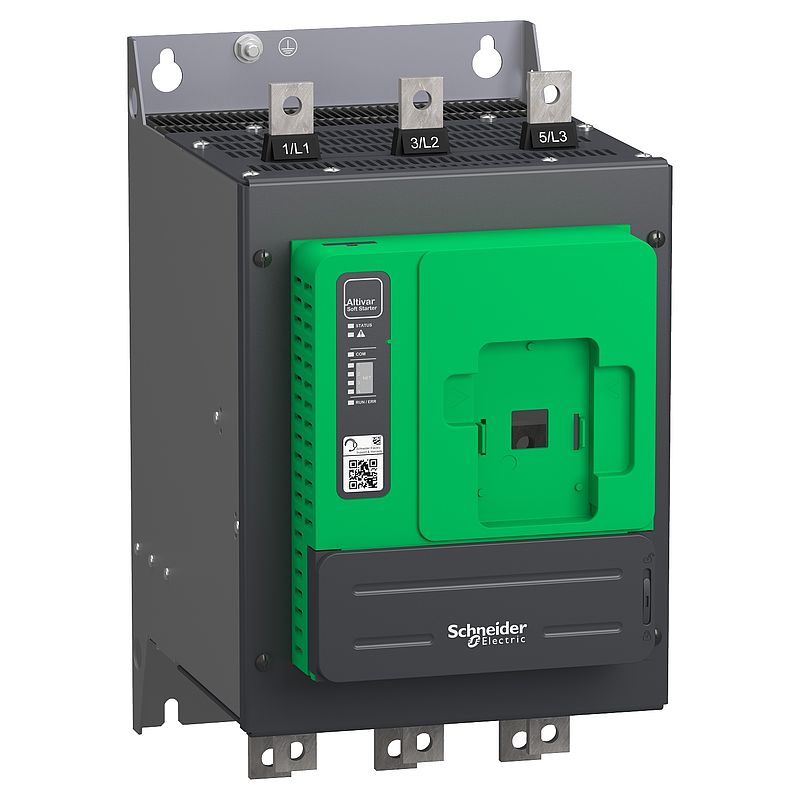

Anzeigebildschirm verfügbarRichtig

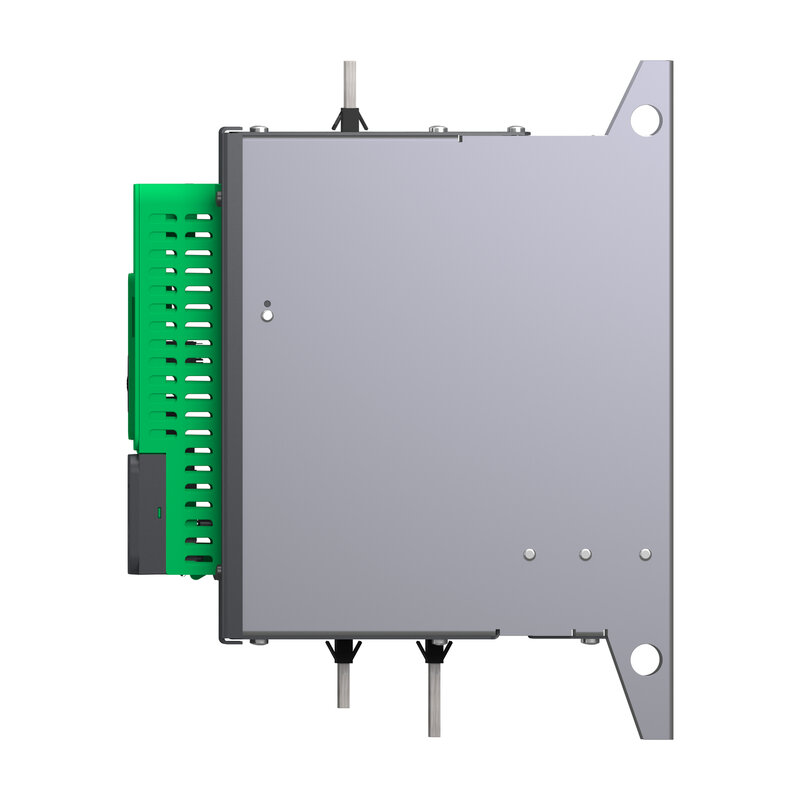

BetriebspositionSenkrecht +/- 10 Grad
Höhe340,0 mm
Breite200,0 mm
Tiefe272,0 mm
Produktgewicht12,4 kg

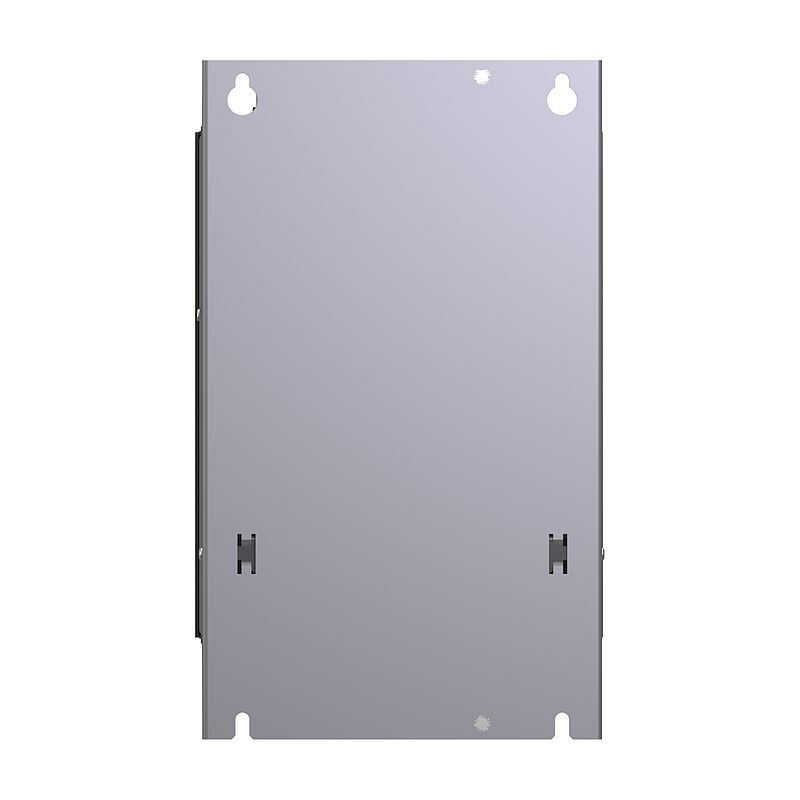

Montage
Elektromagnetische VerträglichkeitLeitungsgebundene und abgestrahlte Emissionen Level A entspricht IEC 60947-4-2
Leitungsgebundene und abgestrahlte Emissionen mit Bypass Level B entspricht IEC 60947-4-2
Gedämpfte oszillierende Wellen Level 3 entspricht IEC 61000-4-12
Elektrostatische Entladung Level 3 entspricht IEC 61000-4-11
Störfestigkeit gegenüber Einschaltstößen Stufe 4 entspricht IEC 61000-4-4
Störfestigkeit gegen abgestrahlte radioelektrische Störungen Level 3 entspricht IEC 61000-4-3
Spannungs-/Strom-Impuls Level 3 entspricht IEC 61000-4-5
VerschmutzungsgradStufe 3
[Uimp] Bemessungs-Stoßspannungsfestigkeit6 kV
[Ui] Bemessungs-Isolationsspannung690 V
Umweltklasse (während des Betriebs)Klasse 3C3 gemäß IEC 60721-3-3
Klasse 3S2 gemäß IEC 60721-3-3
Relative Feuchtigkeit0…95 % ohne Kondensation oder Tropfwasser entspricht IEC 60068-2-3
Umgebungstemperatur bei Betrieb40…60 °C (mit Stromreduzierung von 2 % pro °C)
-15…40 °C (ohne Leistungsminderung)
Umgebungstemperatur bei Lagerung-25…70 °C
Betriebshöhe<= 1.000 m ohne Leistungsminderung
> 1.000 - 4.000 m mit Strom Deklassierung von 1% pro 100 m
Max. Durchbiegung unter schwingender Belastung (während des Betriebs)1,5 mm bei 2 - 13 Hz
Max. Durchbiegung unter Rüttelbelastung (während der Lagerung)1,75 mm bei 2 - 9 Hz
Max. Durchbiegung unter Rüttelbelastung (während des Transports)1,75 mm bei 2 - 9 Hz
Max. Beschleunigung unter Schwingungsbelastung (während des Betriebs)10 m/s² bei 13 - 200 Hz
Max. Beschleunigung unter Rüttelbelastung (während der Lagerung)15 m/s² bei 200 - 500 Hz
10 m/s² bei 9 - 200 Hz
Max. Beschleunigung unter Schwingungsbelastung (während des Transports)15 m/s² bei 200 - 500 Hz
10 m/s² bei 9 - 200 Hz
Max. Beschleunigung bei Stoßeinwirkung (während des Betriebs)150 m/s² bei 11 ms
Max. Beschleunigung unter Stoßbelastung (während der Lagerung)100 m/s² bei 11 ms
Max. Beschleunigung unter Stoßbelastung (während des Transports)100 m/s² bei 11 ms
Verpackungseinheiten
VPE 1 ArtPCE
VPE 1 Menge1
VPE 1 Gewicht14,386 kg
VPE 1 Höhe43,0 cm
VPE 1 Breite32,0 cm
VPE 1 Länge45,5 cm
VPE 2 ArtS06
VPE 2 Menge2
VPE 2 Gewicht41,775 kg
VPE 2 Höhe75,0 cm
VPE 2 Breite60,0 cm
VPE 2 Länge80,0 cm
Vertragliche Gewährleistung
Garantie18 Monate

Nachhaltigkeit

Green Premium

Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.

Weitere Informationen

Nachhaltigkeit
Angebotsstatus nachhaltiges Produkt Green Premium Produkt
EU-RoHS-Richtlinie Übererfüllung der Konformität (außerhalb EU RoHS-Scope)
Quecksilberfrei Ja
WEEE Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
Upgrade-fähig Upgrade-Komponenten verfügbar
