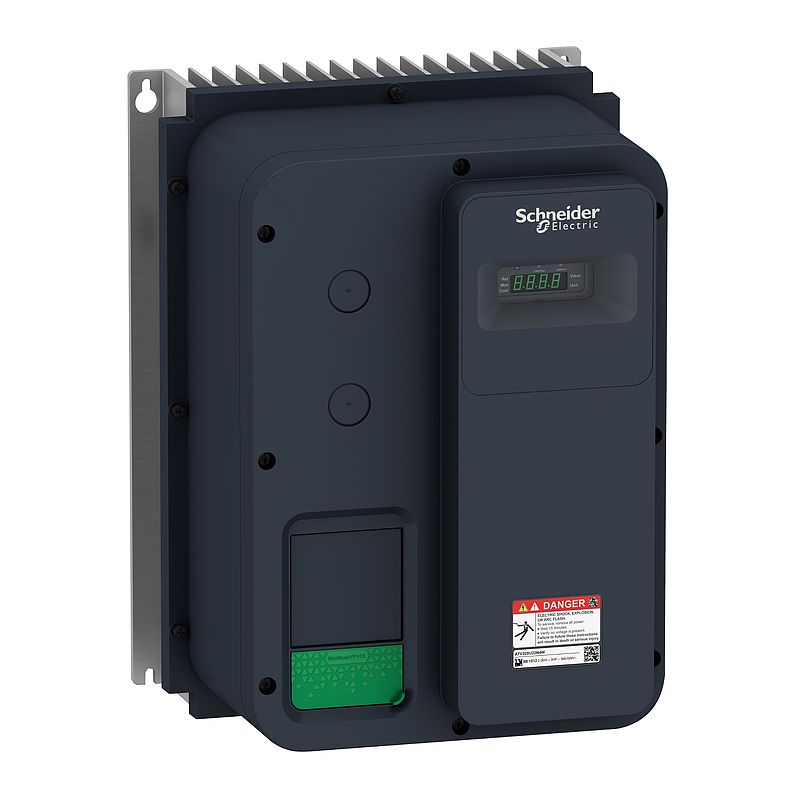

Frequenzumrichter ATV320, 1,1kW, 200V, 1 phasig, IP66
ATV320U11M2W
Materialpreisgruppe : CE
735,00 EUR
EAN Code: 3606489548438
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
Environmental Disclosure | Download |
CAE | Download |
Application Notes | Download |
Software - Data Library | Download |
Circularity Profile | Download |
Software - Release | Download |
Instruction sheet | Download |
User guide | Download |
Declaration of conformity | Download |
CAD | Download |
Catalog | Download |
How to video | Video anzeigen |
Certificate | Download |
Promotional video | Video anzeigen |
Dieses Produkt ist kompatibel mit
Kommunikations-Artikel: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | Altivar Machine ATV320 |
Produkt- oder Komponententyp | Antrieb mit variabler Geschwindigkeit |
Produktspezifische Anwendung | Komplexe Maschinen |
Variante | Standard-Version |
Gehäusetyp | Gekapselt |
Montagemodus | Aufputzmontage |
Kommunikationsprotokoll | Modbus, seriell CANopen |
Optionskarte | Kommunikationsmodul, CANopen Kommunikationsmodul, EtherCAT Kommunikationsmodul, Profibus DP V1 Kommunikationsmodul, Profinet Kommunikationsmodul, Ethernet Powerlink Kommunikationsmodul, EtherNet/IP Kommunikationsmodul, DeviceNet |
Nennbetriebsspannung [U,nom] | 200-240 V -15 - +10 % |
Nennausgangsstrom | 6,9 A |
Motorleistung (kW) | 1,1 kW für Schwerlastbetrieb |
EMV-Filter | Integrierter EMV-Filter Klasse C2 |
IP-Schutzart | IP66 | Zusatzmerkmale |
Diskrete Eingangsnummer | 7 |
Digitaler Eingang | STO Safe Torque Off (sicher abgeschaltetes Drehmoment), 24 V DC, Impedanz: 1,5 kOhm DI1 - DI6 Logikeingänge, 24 V DC (30 V) DI5 programmierbar als Pulseingang: 0…30 kHz, 24 V DC (30 V) |
Diskrete Eingangslogik | Positive Logik (Source) Negative Logik (Sink) |
Diskrete Ausgangsnummer | 3 |
Digitaler Ausgang | Open Collector DQ+ 0…1 kHz 30 V DC 100 mA Open Collector DQ- 0…1 kHz 30 V DC 100 mA |
Anzahl der Analogeingänge | 3 |
Messeingänge | AI1 Spannung: 0 - 10 V DC, Impedanz: 30 kOhm, Auflösung 10 Bit AI2 bipolare Differenzspannung: +/- 10 V DC, Impedanz: 30 kOhm, Auflösung 10 Bit AI3 Strom: 0-20mA (o, 4-20mA, x-20mA, 20-xmA o, andere Einstellungen per Konfiguration), Impedanz: 250 Ohm, Auflösung 10 Bit |
Anzahl der Analogausgänge | 1 |
Typ des Analogausgangs | Softwarekonfigurierbarer Strom AQ1: 0 - 20 mA Widerstand 800 Ohm, Auflösung 10 Bit Softwarekonfigurierbare Spannung AQ1: 0 - 10 V DC Widerstand 470 Ohm, Auflösung 10 Bit |
Ausgangsart des Relais | Konfigurierbare Relais-Logik R1A 1 S elektrische Lebensdauer 100000 Zyklen Konfigurierbare Relais-Logik R1B 1 Ö elektrische Lebensdauer 100000 Zyklen Konfigurierbare Relais-Logik R1C Konfigurierbare Relais-Logik R2A 1 S elektrische Lebensdauer 100000 Zyklen Konfigurierbare Relais-Logik R2C |
maximaler Schaltstrom | Relaisausgang R1A, R1B, R1C auf ohmsch Belastung, cos phi = 1: 3 A bei 250 V AC Relaisausgang R1A, R1B, R1C auf ohmsch Belastung, cos phi = 1: 3 A bei 30 V DC Relaisausgang R1A, R1B, R1C, R2A, R2C auf induktiv Belastung, cos phi = 0,4 und L/R = 7 ms: 2 A bei 250 V AC Relaisausgang R1A, R1B, R1C, R2A, R2C auf induktiv Belastung, cos phi = 0,4 und L/R = 7 ms: 2 A bei 30 V DC Relaisausgang R2A, R2C auf ohmsch Belastung, cos phi = 1: 5 A bei 250 V AC Relaisausgang R2A, R2C auf ohmsch Belastung, cos phi = 1: 5 A bei 30 V DC |
minimaler Schaltstrom | Relaisausgang R1A, R1B, R1C, R2A, R2C: 5 mA bei 24 V DC |
Zugriffsmethode | Slave CANopen |
4 quadrant operation possible | Richtig |
Typ Motorsteuerung Asynchronmotor | U/f-Kennlinie, 5 Punkte Vektororientierte Flussregelung ohne Geber, Standard U/f-Kennlinie - Energiesparmodus, quadratische U/f-Kennlinie Vektororient. Flussregelung ohne Encoder - Energiesparmodus U/f-Kennlinie, 2 Punkte |
Steuerungsprofil für Synchronmotoren | Vektororientierte Flussregelung ohne Encoder |
max. Ausgangsfrequenz | 0,599 kHz |
kurzzeitiges Überlastmoment | 170…200 % des Motor Bemessungsmoment |
Hoch und Auslauframpen | Linear U S CUS Rampenumschaltung Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
Schlupfkompensation Motor | Automatisch, unabhängig von der Last Einstellbar von 0 - 300 % Nicht verfügbar bei den U/f-Kennlinien (2 oder 5 Punkte) |
Taktfrequenz | 2 - 16 kHz einstellbar 4 - 16 kHz mit Leistungsminderungsfaktor |
Bemessungs Taktfrequenz | 4 kHz |
Bremsen bis Stillstand | Durch Gleichstromeinspeisung |
Brake chopper integrated | Richtig |
Netzstrom | 13,7 A bei 200 V (Schwerlastbetrieb) 11,5 A bei 240 V (Schwerlastbetrieb) |
Max. Eingangsstrom | 13,7 A |
Maximum output voltage | 240 V |
Scheinleistung | 2,8 kVA bei 240 V (Schwerlastbetrieb) |
Netzwerkfrequenz | 50 - 60 Hz |
Relative symmetric network frequency tolerance | 5 % |
Netzkurzschlussstrom Ik | 1 kA |
Base load current at high overload | 2,7 A |
Verlustleistung in W | Selbstkühlend: 61 W bei 200 V, Schaltfrequenz 4 kHz |
mit Sicherheitsfunktion Safely Limited Speed (SLS) | Richtig |
mit Sicherheitsfunktion Safe brake management (SBC/SBT) | Falsch |
mit Sicherheitsfunktion Safe Operating Stop (SOS) | Falsch |
mit Sicherheitsfunktion Safe Position (SP) | Falsch |
mit Sicherheitsfunktion Safe programmable logic | Falsch |
mit Sicherheitsfunktion Safe Speed Monitor (SSM) | Falsch |
mit Sicherheitsfunktion Safe Stop 1 (SS1) | Richtig |
mit Sicherheitsfunktion Safe Stop 2 (SS2) | Falsch |
mit Sicherheitsfunktion Safe torque off (STO) | Richtig |
mit Sicherheitsfunktion Safely Limited Position (SLP) | Falsch |
mit Sicherheitsfunktion Safe Direction (SDI) | Falsch |
Schutzfunktionen | Netzphasenunterbrechung: Antrieb Überstromschutz zwischen Ausgangsphasen und Erde: Antrieb Überhitzungsschutz: Antrieb Kurzschlussschutz zwischen Motorphasen: Antrieb Thermischer Schutz: Antrieb |
Breite | 250 mm |
Höhe | 340 mm |
Tiefe | 235,0 mm |
Produktgewicht | 7,4 kg | Montage |
Betriebsposition | Senkrecht +/- 10 Grad |
Produktzertifizierungen | CE ATEX NOM GOST EAC RCM KC |
Beschriftung | CE ATEX UL CSA EAC RCM |
Normen | IEC 61800-5-1 |
Elektromagnetische Verträglichkeit | Störfestigkeitsprüfung bei elektrostatischer Entladung Level 3 entspricht IEC 61000-4-2 Prüfung der Störfestigkeit gegen abgestrahlte hochfrequente elektromagnetische Felder Level 3 entspricht IEC 61000-4-3 Elektrische Funkentstörfestigkeitsprüfung Stufe 4 entspricht IEC 61000-4-4 1,2/50 μs - 8/20 μs Störfestigkeitsprüfung Level 3 entspricht IEC 61000-4-5 Leitungsgebundene HF-Störfestigkeitsprüfung Level 3 entspricht IEC 61000-4-6 Prüfung der Störfestigkeit gegen Spannungseinbrüche und Unterbrechungen entspricht IEC 61000-4-11 |
Umweltklasse (während des Betriebs) | Klasse 3C3 gemäß IEC 60721-3-3 Klasse 3S2 gemäß IEC 60721-3-3 |
Max. Beschleunigung bei Stoßeinwirkung (während des Betriebs) | 150 m/s² bei 11 ms |
Max. Beschleunigung unter Schwingungsbelastung (während des Betriebs) | 10 m/s² bei 13 - 200 Hz |
Max. Durchbiegung unter schwingender Belastung (während des Betriebs) | 1,5 mm bei 2 - 13 Hz |
Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
Überspannungskategorie | III |
Regelkreis | Einstellbarer PID-Regler |
Drehzahlgenauigkeit | +/- 10 % des Nennschlupfs 0,2 Mn zu Mn |
Verschmutzungsgrad | 3 |
Umgebungslufttemperatur beim Transport | -25…70 °C |
Umgebungstemperatur bei Betrieb | -10…40 °C ohne Leistungsminderung 40…60 °C mit Leistungsminderungsfaktor |
Umgebungstemperatur bei Lagerung | -25…70 °C | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 9,882 kg |
VPE 1 Höhe | 29,300 cm |
VPE 1 Breite | 30,500 cm |
VPE 1 Länge | 45,000 cm |
VPE 2 Art | P06 |
VPE 2 Menge | 4 |
VPE 2 Gewicht | 48,000 kg |
VPE 2 Höhe | 77,000 cm |
VPE 2 Breite | 60,000 cm |
VPE 2 Länge | 80,000 cm | Vertragliche Gewährleistung |
Garantie | 18 Monate |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie | Übererfüllung der Konformität (außerhalb EU RoHS-Scope) |
Quecksilberfrei | Ja |
WEEE | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
Upgrade-fähig | Upgrade-Komponenten verfügbar |
