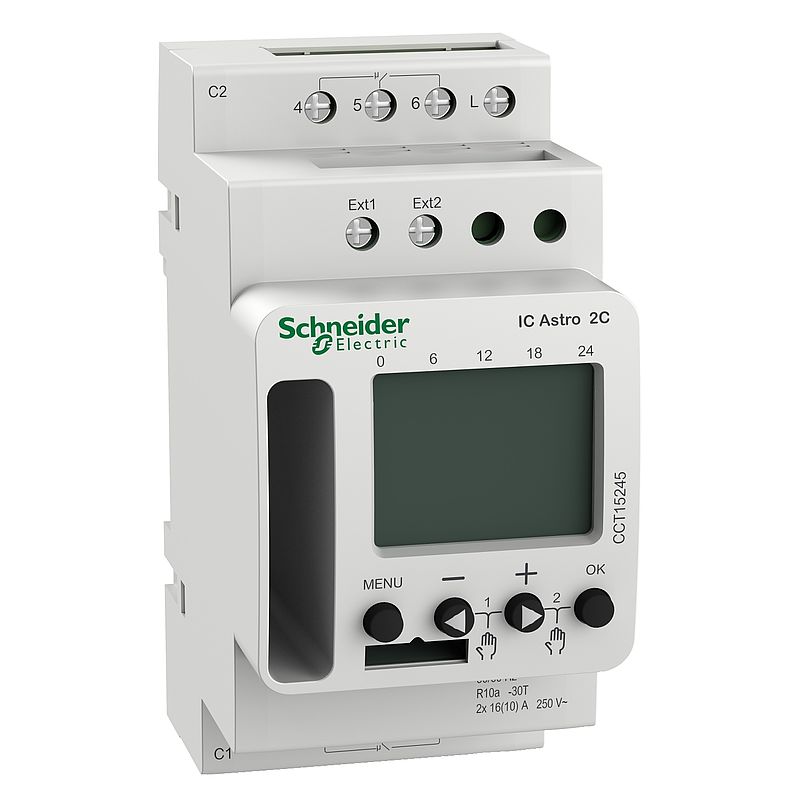

Dämmerungsschalter IC Astro, Bluetooth
CCT15245
Materialpreisgruppe : D3
382,00 EUR
EAN Code: 3606489524555
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
Declaration of conformity | Download |
Environmental Disclosure | Download |
Brochure | Download |
Application Notes | Download |
Specification guide | Download |
Circularity Profile | Download |
User guide | Download |
Software - Hotfix | Download |
Certificate | Download |
CAD | Download |
Catalog | Download |
Spezifikationen
Hauptmerkmale | |
---|---|
Produktname | Acti 9 IC |
Produkt- oder Komponententyp | Programmierbarer, astronomischer Dämmerungsschalter |
Kurzbezeichnung des Geräts | IC Astro |
Anzahl der Kanäle | 2 |
Benutzersprache | Englisch Französisch Dänisch Niederländisch Türkisch Norwegisch Spanisch Schwedisch Rumänisch Ungarisch Russisch Polnisch Portugiesisch Slowenisch Bulgarisch Deutsch Kroatisch Italienisch |
Art der Einstellung | Wöchentliche Programmierung | Zusatzmerkmale |
Geräteanwendung | Gebäude |
Max. Leistungsaufnahme in W | 0,5 W standby |
maximaler Schaltstrom | 10 A - 250 V AC pf = 0,6 16 A - 250 V AC pf = 1 |
minimaler Schaltstrom | 10 mA 230 V AC 100 mA 24 V AC/DC |
[Ue] Betriebsbemessungsspannung | 230 V AC +10 % -15 % bei 50/60 Hz |
Art und Zusammensetzung der Kontakte | Wechsler (W) |
Steuerungstyp | Durch Berechnung der Sonnenaufgangs-/Sonnenuntergangszeiten |
Steuertastentyp | 4 pushbuttons |
Funktion verfügbar | Automatische Winter-/Sommerzeitumstellung Zeitverschiebung für Sonnenaufgang/-untergang +/- 120 Min. Dauerschaltung ein/aus Vorwahlschalter Externer Eingang für Überbrückung pro Kanal Codeschlossfunktion Feiertage |
Lasttyp | Glühlampe 2600 W Halogenlampe 2600 W Nicht-korrigierte Leuchtstoffröhre 2300 VA Seriell-kompensierte Leuchtstoffröhre 2300 VA Parallelkompensierte Leuchtstofflampe 730 VA 80 µF Kompakt-Leuchtstofflampe 170 W LED-Lampe < 2 W 30 W LED-Lampe > 2 W 200 W |
Genauigkeit | +/- 0,25 s/Tag 25 °C |
Ausgangstyp | Potentialfreier Kontakt |
Betriebsmodus | Abend ein, Morgen aus Abend aus, Morgen an inaktiv Nur der Timer-Schalter ist aktiv |
Max. Anzahl der Schaltungen | 84 |
Sicherungsdauer | 10 Jahre |
Displaytyp | Hintergrundbeleuchtetes Display (LCD) |
angezeigte Information | Zeit Betriebsstundenzähler (pro Kanal) Schaltverhalten Tag |
Montagehalterung | TH35 DIN-Schiene entspricht EN 60715 |
Anschlüsse - Klemmen | 2 0,5…2,5 mm² Schraubklemmen starr oder flexibel 1 2,5 mm² Schraubklemmen fest oder flexibel mit Hülse |
Beschriftung | CE |
elektrische Isolationsklasse | Klasse II |
Überspannungskategorie | Klasse 3 |
Höhe | 92,6 mm |
Breite | 45 mm |
Tiefe | 66,7 mm |
Produktgewicht | 141 g | Montage |
Normen | EN 60730-2-7:2010 |
Umgebungstemperatur bei Betrieb | -30…55 °C |
Umgebungslufttemperatur für Lagerung / Transport | -30…70 °C |
Schutzart (IP) | IP20 |
Relative Luftfeuchtigkeit | 90 %, nicht kondensierend | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 184,000 g |
VPE 1 Höhe | 6,500 cm |
VPE 1 Breite | 8,000 cm |
VPE 1 Länge | 10,500 cm |
VPE 2 Art | S03 |
VPE 2 Menge | 40 |
VPE 2 Gewicht | 7,795 kg |
VPE 2 Höhe | 30,000 cm |
VPE 2 Breite | 30,000 cm |
VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
