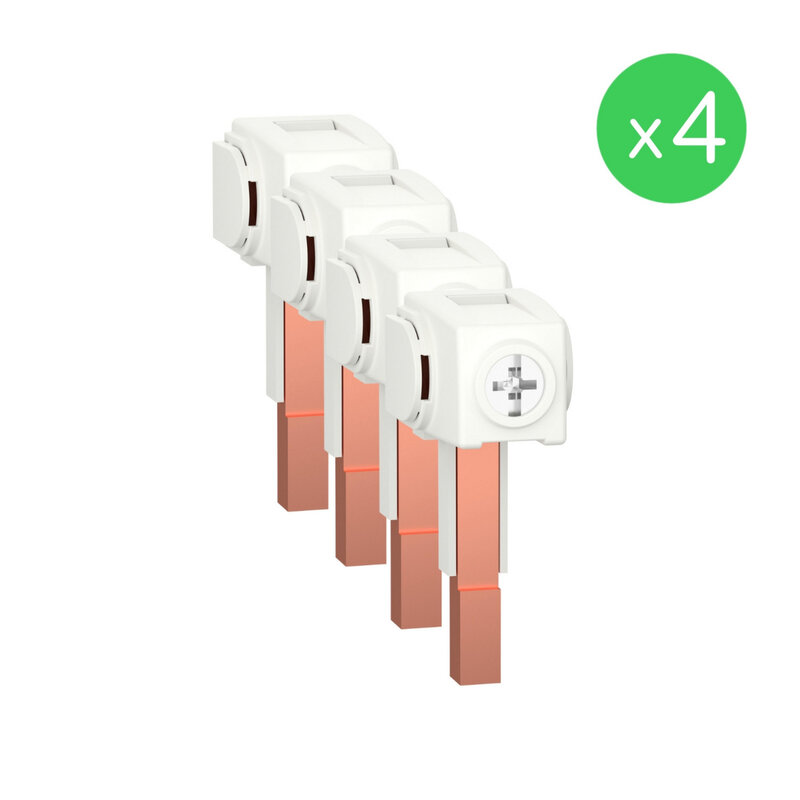

Einspeiseklemme Steg (lang) für iC60, IID, iDPN, iDPN N Vigi, VPE 4 Stk.
A9XPCM04
Materialpreisgruppe : D7
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
Environmental Disclosure | Download |
Brochure | Download |
CAD | Download |
Catalog | Download |
Declaration of conformity | Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Produktbereich | Acti9 |
Produktname | Linergy FH |
Produkt- oder Komponententyp | Stecker |
Zubehör / Teilekategorie | Anschlusszubehör |
Beschreibung der Pole | 3P + N |
Menge pro Satz | Satz à 4 |
Kompatibilität von Kammschienen und Verteilerblöcken | Monoconnect | Zusatzmerkmale |
[In] Bemessungsstrom | 100 A |
Farbe | Weiß (RAL 9003) |
Anschlüsse - Klemmen | Schraubklemmenleisten oberer Steckverbinder35 mm² |
[M] Anzugsdrehmoment | 4 Nm |
Kompatible Produktfamilie | Acti 9 Acti9 iC60 Kammschiene Acti 9 Acti9 iK60 Kammschiene Acti 9 Acti 9 iDPN Kammschiene Acti 9 Acti9 iDPN Vigi Kammschiene Acti 9 Acti9 iID Kammschiene Acti 9 Acti9 iID K Kammschiene Acti 9 Acti9 iSW Kammschiene Acti 9 Acti9 iSW-NA Kammschiene Acti 9 Acti9 STI Kammschiene | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 64 g |
VPE 1 Höhe | 2,9 cm |
VPE 1 Breite | 6,1 cm |
VPE 1 Länge | 7,9 cm |
VPE 2 Art | S02 |
VPE 2 Menge | 100 |
VPE 2 Gewicht | 6,582 kg |
VPE 2 Höhe | 15 cm |
VPE 2 Breite | 30 cm |
VPE 2 Länge | 40 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 months |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie | Konform mit Ausnahmen |
Quecksilberfrei | Ja |
WEEE | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
Kreislaufwirtschafts-Profil | Keine besonderen Recycling-Verfahren erforderlich |
