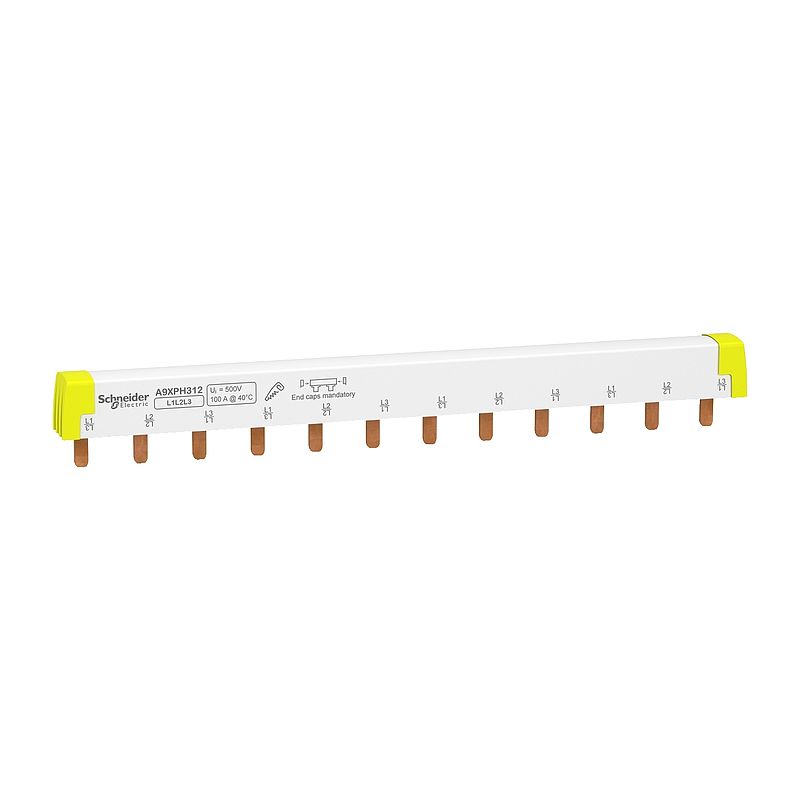

Phasenschiene Steg, ablängbar, 3P, 12 TE, 100A
A9XPH312
Materialpreisgruppe : D7
Hauptdokumente
Produktdatenblatt | Download |
Declaration of Conformity (Sustainability) | Download |
Environmental Disclosure | Download |
Brochure | Download |
CAD | Download |
Catalog | Download |
Declaration of conformity | Download |
Dieses Produkt ist kompatibel mit
Zubehörteile: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | Acti9 |
Produkt- oder Komponententyp | Kammschiene |
Montagemodus | Horizontal |
Zubehör / Teilekategorie | Anschlusszubehör |
Beschreibung der Leitungen | 3L |
Länge in 18-mm-Modulen | 12 | Zusatzmerkmale |
Anzahl der Wege | 4-polig 3 L |
Polkonfiguration für 1-Weg | 1 x 3P |
Anschlussraster | 18 mm |
Anschlusstyp | Zinke |
Abstand zwischen den Polen | 54 mm |
Beschriftung | L1 L2 L3 |
Isolation | Isoliert |
Gerätedarstellung | Ablängbar |
Nennbetriebsstrom Ie | 100 A bei 40 °C |
[Ue] Betriebsbemessungsspannung | 415 V AC |
[Ui] Bemessungs-Isolationsspannung | 500 V AC entspricht IEC 61439-2 |
Montageort | Oben oder unten auf Tunnelklemmen Oben oder unten auf Doppelklemme |
9-mm-Raster | 24 |
Breite | 220 mm |
Farbe | Weiß (RAL 9003) |
Kompatible Produktfamilie | Acti 9 Acti9 iC60 Acti 9 Acti9 iK60 Acti 9 Acti9 iID Acti 9 Acti9 iID K Acti 9 Acti9 iSW Acti 9 Acti9 iSW-NA Multi 9 Multi9 C60 | Montage |
Feuerbeständigkeit | 960 °C ( 30 s ) entspricht IEC 60695-2-1 |
Verschmutzungsgrad | 3 entspricht IEC 60947-7-1 |
Schutzart (IP) | IP20 Mit Endstücken und Zinkenabdeckungen | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 108 g |
VPE 1 Höhe | 3 cm |
VPE 1 Breite | 1,6 cm |
VPE 1 Länge | 21,2 cm |
VPE 2 Art | BB1 |
VPE 2 Menge | 5 |
VPE 2 Gewicht | 607 g |
VPE 2 Höhe | 6 cm |
VPE 2 Breite | 8,6 cm |
VPE 2 Länge | 24,8 cm |
VPE 3 Art | S03 |
VPE 3 Menge | 80 |
VPE 3 Gewicht | 10,19 kg |
VPE 3 Höhe | 30 cm |
VPE 3 Breite | 30 cm |
VPE 3 Länge | 40 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 months |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
Frei von REACh-SVHC | Ja |
EU-RoHS-Richtlinie | Konform EU-RoHS-Deklaration |
Frei von giftigen Schwermetallen | Ja |
Quecksilberfrei | Ja |
WEEE | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
Kreislaufwirtschafts-Profil | Keine besonderen Recycling-Verfahren erforderlich |
