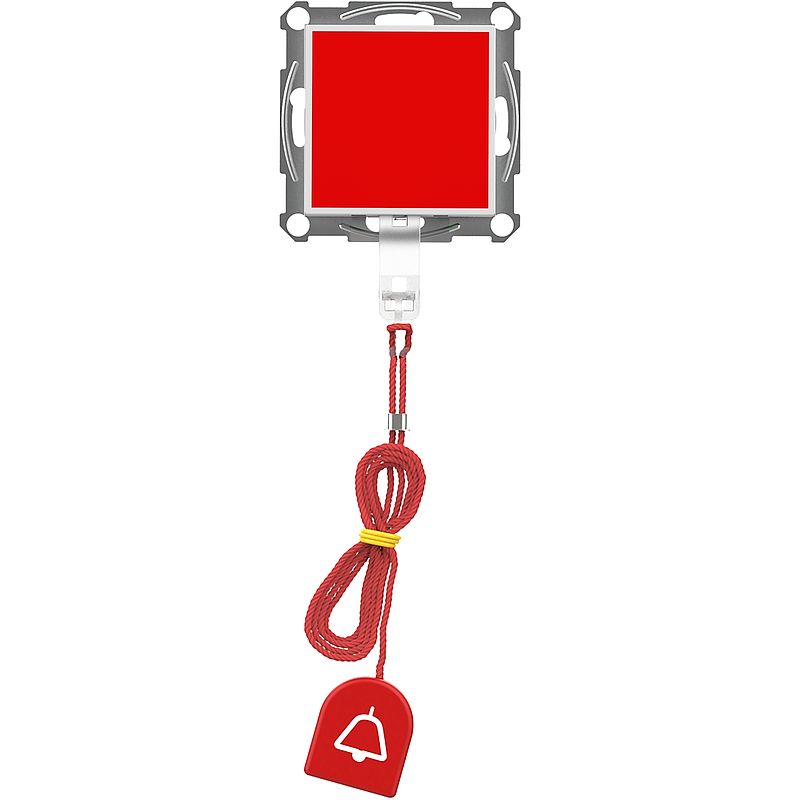

Zugtastereinsatz mit Zentralplatte rot Zugschnur 3m fuer SIGMA care Joy

ELG745030

Hauptdokumente

Produktdatenblatt Download
Entsorgungsinformation Download
Produktumweltprofil Download
Gebrauchsanleitung Download
Declaration of Conformity (Sustainability) Download
Broschüre Download

Spezifikationen

Hauptmerkmale
Baureihe ELSO
Ästhetischer Name ELSO Sigma/WC-RUF
Produkt- oder Komponententyp Rufschalter
Gerätedarstellung Mechanismus mit Befestigungsrahmen und Zentralplatte
Farbton Rot
Lichtquelle LED
Menge pro Satz Satz à 1
Zusatzmerkmale
Gehäusevariante Einbau
Stellglied Zugseil: 3000 mm
Stromaufnahme 40 mA
[Ue] Betriebsbemessungsspannung 24 V DC
Lampenfunktion Anzeige
Anschlüsse - Klemmen Steckklemme starr
Befestigung Durch Schrauben
Einbautiefe 13 mm
Höhe 72 mm
Breite 72 mm
Projektierungstiefe 34 mm
Produktkompatibilität Mit ELSO-Joy-Rahmen zu ergänzen
Montage
Normen DIN VDE 0834
Schutzart (IP) IP20
Umgebungseigenschaften EMV Direktive
Vertragliche Gewährleistung
Gewährleistung 18 Monate
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Höhe 7,8 cm
VPE 1 Breite 7,8 cm
VPE 1 Länge 104 cm
VPE 1 Gewicht 96,75 g

Nachhaltigkeit

Environmental data
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Nein
SCIP-Nummer 163d36b9-b513-4361-a9f7-d9ceba10dc4d
Rücknahme No
WEEE Das Produkt muss nach der spezifischen Abfallsammlung auf den Märkten der Europäischen Union entsorgt werden und darf nicht in Abfalleimer gelangen

Dokumente

Aktueller Filter
8 Dokumente
Planen. Bauen. Betreiben.
15/03/25 · Broschüre
47,4 MB Download
Neuheitenbroschüre
15/03/25 · Broschüre
47,4 MB Download
Neuheitenbroschüre Home & Distribution 15/03/25 · Broschüre 14,7 MB Download
Sigma Care Zugruftaster, ELG745030 / MEG4850-0300, Montieren und Anschließen, DE 15/03/25 · Gebrauchsanleitung 0,7 MB Download
SIGMA CARE ROOM SIGNAL LAMP - Product Environmental Profile
15/03/25 · Produktumweltprofil
0,3 MB Download
SIGMA CARE ROOM SIGNAL LAMP - Product End of Life Instructions
15/03/25 · Entsorgungsinformation
0,2 MB Download
ELG745030 China-RoHS-Erklärung
25/02/25 · Declaration of Conformity (Sustainability)
0,2 MB Download
Sigma Care Pull call unit, ELG745030 / MEG4850-0300, Installation and connection, EN 15/09/24 · Gebrauchsanleitung 0,7 MB Download
