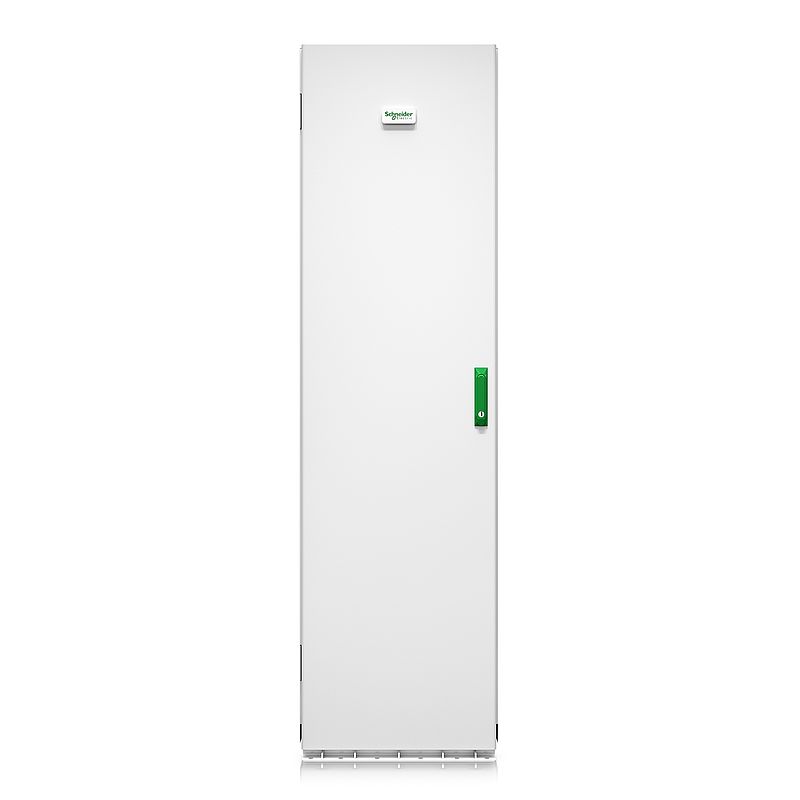

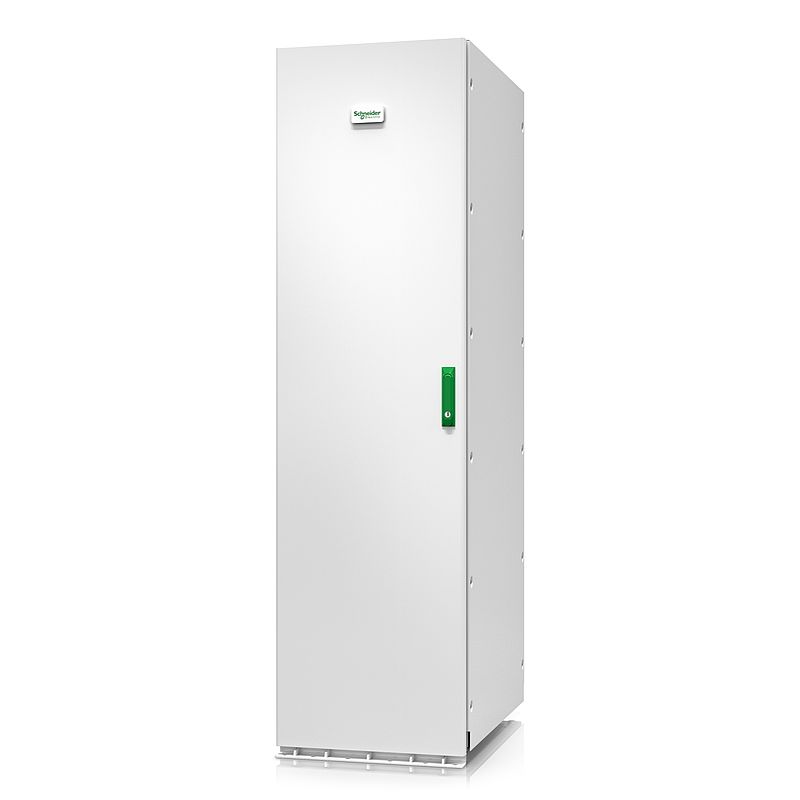

Galaxy VS modularer Batterieschrank für bis zu 9 intelligente modulare Batteriestränge
GVSMODBC9
Hauptdokumente
Download | |
Download | |
Download | |
Download | |
Download | |
Download | |
Download | |
Video anzeigen | |
Download | |
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
![](/fileadmin/_processed_/a/8/csm_GVSBT4_FL_H_1500x1500_4f16fd87f6.jpg)
Spezifikationen
Übersicht | |
---|---|

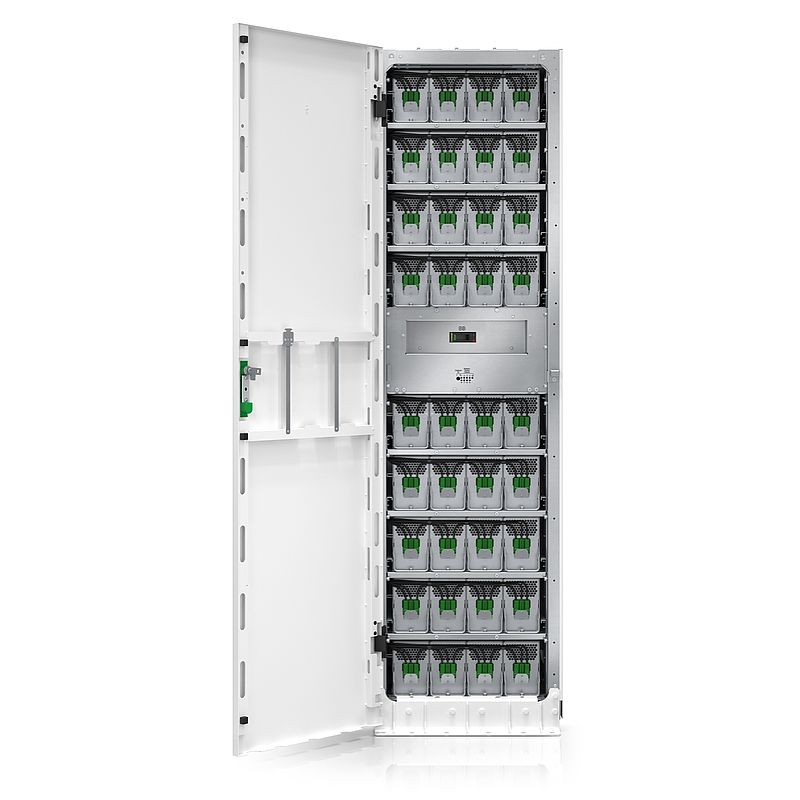

Ausführung | Modularer Batterieschrank für längere Laufzeit für USVs mit internen Batterien. Der Schrank wird ohne Batterien geliefert. Modulare Batteriestränge müssen daher separat erworben werden. Im Schrank können bis zu 9 Batteriestränge installiert und überwacht werden. |
Lieferzeit | Normalerweise Versand innerhalb von zwei Wochen | Hauptmerkmale |
Batterietyp | VRLA |
geliefertes Zubehör | Installationsanleitung |
Produkt- oder Komponententyp | Battery cabinet | Abmessungen |
Farbe | Weiß |
Höhe | 197 cm |
Breite | 55 cm |
Tiefe | 84,7 cm |
Produktgewicht | 410 kg |
Oberflächenbeschaffenheit | Gloss level 85% | Konformität |
Normen | FCC Teil 15 Klasse A | Umgebung |
Umgebungstemperatur bei Betrieb | 0…40 °C |
Betriebshöhe | 0 - 10.000 ft |
Relative Luftfeuchtigkeit | 0…95 % nicht kondensierend |
Umgebungstemperatur bei Lagerung | -15…40 °C |
Aufbewahrungshöhe | 0,0000000000…15240,0000000000 m |
Relative Feuchtigkeit bei Lagerung | 10…80 % nicht kondensierend | Batterien und Überbrückungszeit |
Gehäusevariante | Geschlossener Batterieschrank | Verpackungseinheiten |
VPE 1 Gewicht | 206 kg |
VPE 1 Höhe | 208,2 cm |
VPE 1 Breite | 101 cm |
VPE 1 Länge | 75,5 cm |
VPE 1 Art | PCE |
VPE 1 Menge | 1 | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
Nachhaltigkeit EU-RoHS-Richtlinie | Nicht anwendbar, außerhalb EU RoHS-Scope |
