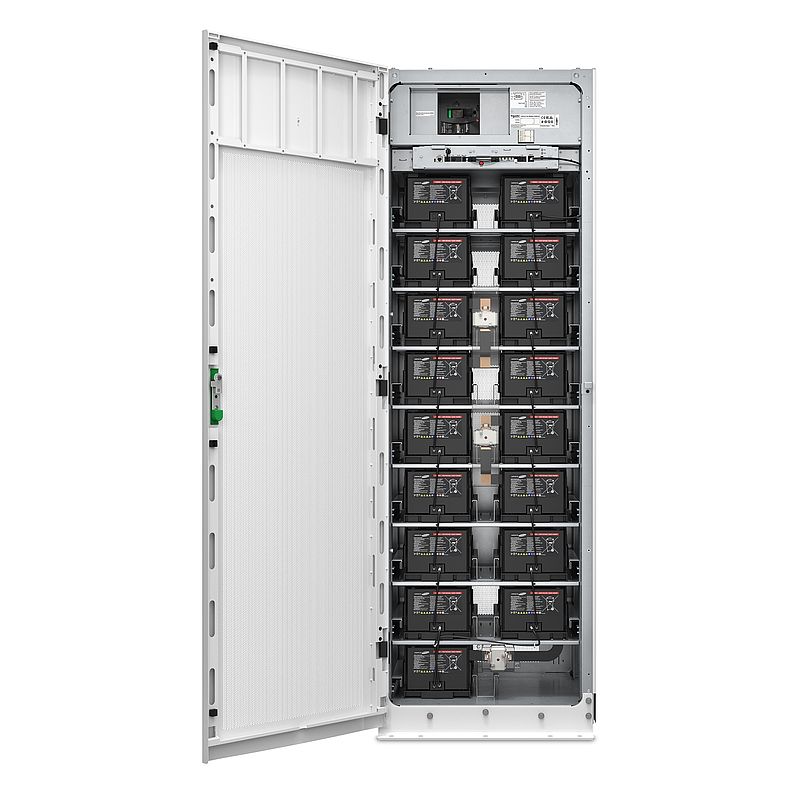

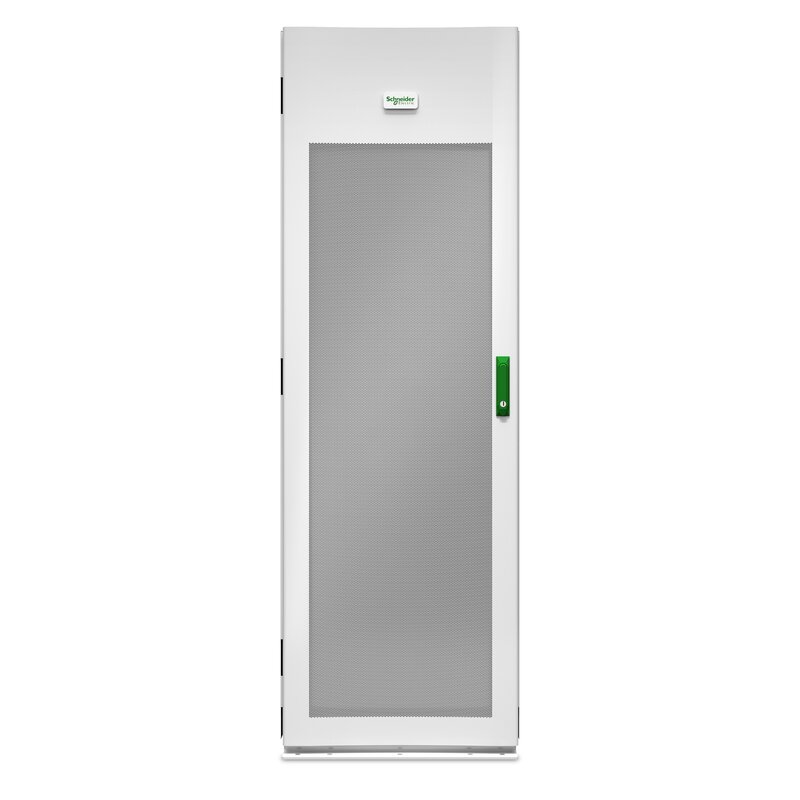

Galaxy Lithium-ion Battery Cabinet IEC with 17 x 2.04 kWh battery modules
LIBSESMG17IEC
Hauptdokumente
 Produktdatenblatt | Download |
| Declaration of Conformity (Sustainability) | Download |
| Technical Drawing | Download |
| Brochure | Download |
| BIM Model | Download |
| User guide | Download |
| Software - Hotfix | Download |
| Certificate | Download |
| Declaration of conformity | Download |
| Circularity Profile | Download |
| Environmental Disclosure | Download |
| Specification guide | Download |
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Battery cabinet that includes Lithium-ion batteries, Battery Management System (BMS), switchgear, power supply, and communication interface. |
| Lieferzeit | Sonderbestellung - Lieferzeit auf Anfrage | Hauptmerkmale |
| Batterietyp | Li-Ion (Lithium-Ionen) |
| geliefertes Zubehör | Installationsanleitung | Abmessungen |
| Farbe | Weiß |
| Höhe | 197 cm |
| Breite | 65 cm |
| Tiefe | 58,7 cm |
| Produktgewicht | 490 kg |
| Oberflächenbeschaffenheit | Pulverbeschichtet | Ausgang |
| Batteriekapazität | 67 AH | Konformität |
| Normen | UL 9540A | Umgebung |
| Umgebungstemperatur bei Betrieb | 18…28 °C |
| Betriebshöhe | 0 - 3.000 m |
| Umgebungstemperatur bei Lagerung | 0…40 °C | Batterien und Überbrückungszeit |
| Akkuplatzierung | Batteriegehäuse |
| Akkuhersteller | Samsung |
| Montage des Produkts | Geschlossener Batterieschrank |
| Batteriespannung | 516.8 V | Verpackungseinheiten |
| VPE 1 Gewicht | 500 kg |
| VPE 1 Höhe | 2150 mm |
| VPE 1 Breite | 800 mm |
| VPE 1 Länge | 1200 mm |
| VPE 3 Breite | 80 cm |
| VPE 3 Länge | 120 cm |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 | Vertragliche Gewährleistung |
| Garantie | 3 years repair or replace |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
Nachhaltigkeit EU-RoHS-Richtlinie  | Konform EU-RoHS-Deklaration |
| Quecksilberfrei | Ja |
| Angebotsstatus nachhaltiges Produkt | Green Premium Produkt |
26 Dokumente
| LIBSESMG17IEC REACh-Erklärung 19/09/23 · Declaration of Conformity (Sustainability) | 0,2 MB | Download |
| LIBSESMG17IEC China-RoHS-Erklärung 19/09/23 · Declaration of Conformity (Sustainability) | 0,2 MB | Download |
| LIBSESMG17IEC EU-RoHS-Erklärung 19/09/23 · Declaration of Conformity (Sustainability) | 0,2 MB | Download |
| Galaxy VX Système d'ASI 380 V, 400 V, 415 V et 440 V caractéristiques techniques 990-5850H-012 · 15/09/23 · Specification guide | 3,8 MB | Download |
| Galaxy Lithium-ion Battery Cabinet 15/09/23 · Environmental Disclosure | 0,5 MB | Download |
| Samsung Li-ion BMS driver for PME 2021/2020/9.0 (ENG) 15/09/23 · Software - Hotfix | 3,9 MB | Download |
| Galaxy Lithium-ion Battery Cabinet Brochure 998-21736426 · 15/09/23 · Brochure | 1,9 MB | Download |
| LIBSESMGGVLIEC-Galaxy Li-ion Battery Cabinet GVL IEC 15/09/23 · Technical Drawing | 1,9 MB | Download |
| LIBSESMGGVMIEC 15/09/23 · Technical Drawing | 1,8 MB | Download |
| LIBSESMGGVXIEC 15/09/23 · Technical Drawing | 2,0 MB | Download |
| Galaxy Lithium-ion Battery Cabinet Receiving and Unpacking 990-6460C · 05/09/23 · User guide | 1,2 MB | Download |
| Galaxy Lithium-ion Battery Cabinet Installation and Operation Manual 990-91430D-xxx · 05/09/23 · User guide | 17,7 MB | Download |
| Galaxy VX 380 V, 400 V, 415 V, and 440V Technical Specifications 990-5850K-001 · 24/08/23 · Specification guide | 3,8 MB | Download |
| Armoire batterie lithium-ion Galaxy Avec 13, 16 ou 17 modules de batteries Installation et utilisation 990-91430C-012 · 15/08/23 · User guide | 10,1 MB | Download |
| Armario de baterías de litio Galaxy Con 13, 16 o 17 módulos de baterías Instalación y funcionamiento 990-91430C-006 · 15/08/23 · User guide | 10,2 MB | Download |
| Galaxy Lithium-ion Certificate of Origin 992-9373A · 15/08/23 · Certificate | 0,1 MB | Download |
| Galaxy Lithium-ion Battery Cabinet 15/07/23 · Circularity Profile | 0,5 MB | Download |
| Armadio delle batterie agli ioni di litio Galaxy Con 13, 16 o 17 moduli batteria Installazione e funzionamento 990-91430B-017 · 15/07/23 · User guide | 9,9 MB | Download |
| Galaxy Lithium-ion Battery Cabinet UK Declaration of Conformity 992-0091 · 15/06/23 · Declaration of conformity | 0,3 MB | Download |
| Galaxy Lithium-ion Battery Cabinet EU Declaration of Conformity 992-9374 · 15/06/23 · Declaration of conformity | 0,7 MB | Download |
| Galaxy VX 380 V, 400 V, 415 e 440 V Specifiche tecniche 990-5850H-017 · 09/06/23 · Specification guide | 3,9 MB | Download |
| Galaxy VX 380 V, 400 V, 415 y 440 V Especificaciones técnicas 990-5850H-006 · 09/06/23 · Specification guide | 3,8 MB | Download |
| Office of Statewide Health Planning and Development (OSHPD) Preapproval OSP-0698_Galaxy Lithium-ion Battery Cabinets 15/05/23 · Certificate | 2,5 MB | Download |
| Galaxy VX 380 V, 400 V, 415 V und 440 V USV-System Technische Daten 990-5850H-005 · 08/05/23 · Specification guide | 3,8 MB | Download |
| Galaxy Batterieschrank für Lithium-Ionen- Batterien Mit 13, 16 oder 17 Batteriemodulen Installation und Betrieb 990-91430C-005 · 15/04/23 · User guide | 10,1 MB | Download |
| BIM_LIBSESMGXXIEC_EN 15/04/23 · BIM Model | 0,7 MB | Download |
