Spezifikationen

Hauptmerkmale
Baureihe SpaceLogic

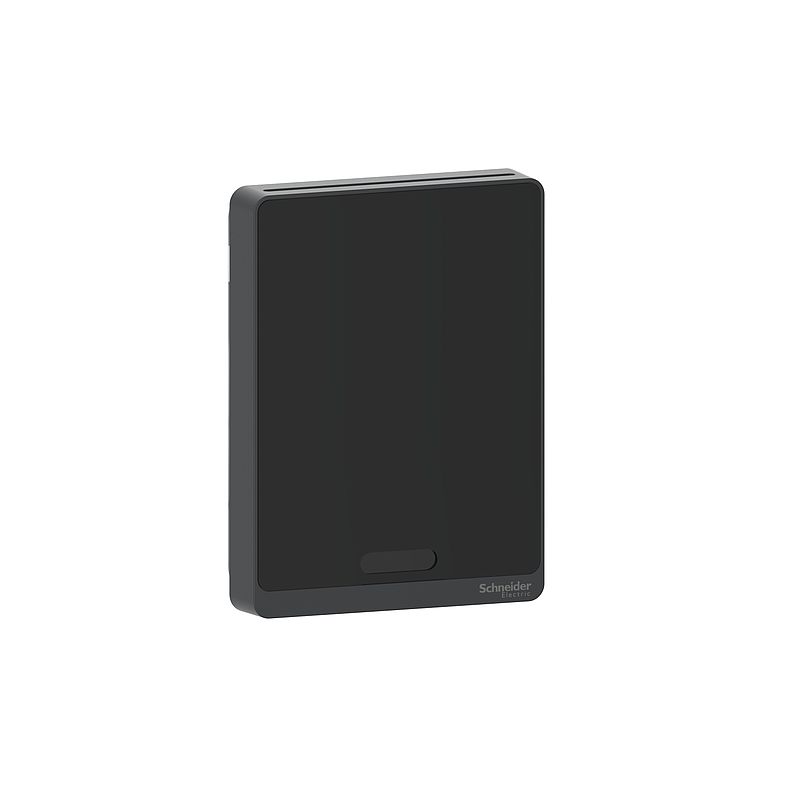

Produkt- oder Komponententyp Abdeckung
Produktname SmartX-Wohnraumsensor
Geräteanwendung HLK
Steuerung
Produktzertifizierungen CE entspricht EN 61000-6-3
RCM
EAC
ICES-003
Displaytyp Ohne Display
Flammenfestigkeit UL94-V0
Schutzart (IP) IP20
Position Lebensraum
Tiefe 20 mm
Höhe 115 mm
Breite 85 mm
Umgebungstemperatur bei Betrieb 0…50 °C
Normen UL 916
FCC Teil 15 Klasse B
Farbe Schwarz
Sensortyp PIR
[UH,nom] Bemessungsbetriebsspannung 24 V DC
Gerätedarstellung Abdeckplatte
Oberflächenbeschaffenheit Matt
Zusatzmerkmale
Material ABS (acrylonitrile butadiene-styrene) GF10 FR
Versorgung Sockel
Anschlüsse - Klemmen Bus-Anschlussklemme (Rückseite)
Bewegungserkennungsbereich 4 m bei 140° (1,35 m Montage)
5 m of radius (wall) bei 110° (1,35 m Montage)
6 m bei 60° (1,35 m Montage)
Kompatible Produktfamilie EcoStruxure Building Operation SmartX-Raum-Steuergerät Programmierbare Steuerungen
EcoStruxure Building Operation SmartX-Wohnraumsensor Grundeinheit
Verpackungseinheiten
VPE 1 Art PCE
VPE 1 Menge 1
VPE 1 Gewicht 120 g
VPE 1 Höhe 14,2 cm
VPE 1 Breite 9,8 cm
VPE 1 Länge 5 cm
Vertragliche Gewährleistung
Gewährleistung 18 Monate

Nachhaltigkeit

Environmental data
EU-RoHS-Richtlinie Konform
EU-RoHS-Deklaration
WEEE Das Produkt muss nach der spezifischen Abfallsammlung auf den Märkten der Europäischen Union entsorgt werden und darf nicht in Abfalleimer gelangen
SCIP-Nummer E29cd56a-1ac5-4d02-9266-937a562619e2
Verpackung ohne Kunststoff Nein
Verpackung mit Recycling-Karton Nein
Rücknahme No
