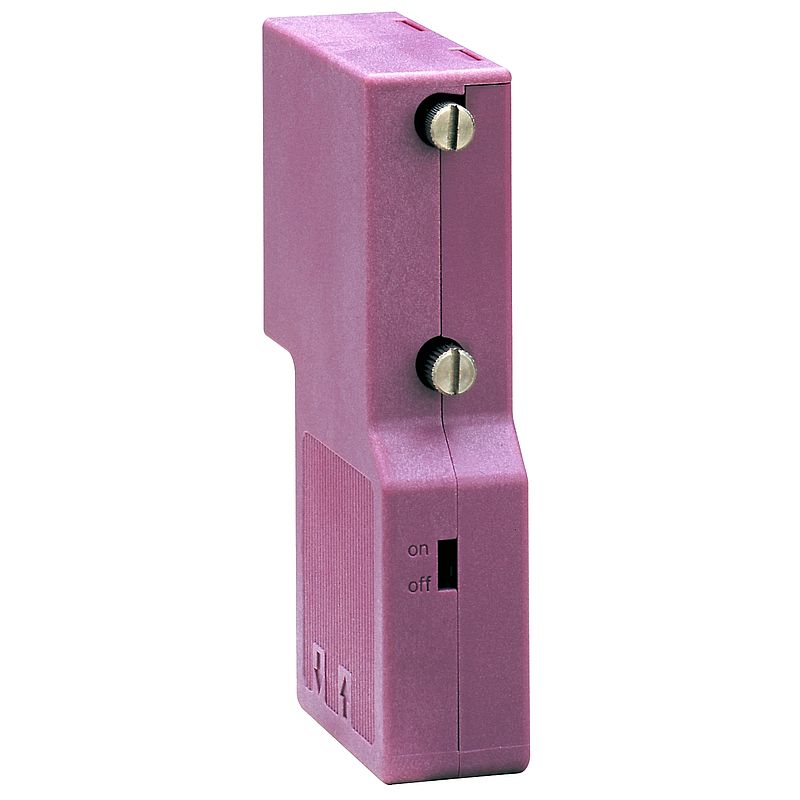

CANopen SUB-D9-Buchse, IP20, gerade, mit Abschlusswiderstand
TSXCANKCDF180T
Materialpreisgruppe
: FO
Hauptdokumente
 Produktdatenblatt |
Download |
|
Instruction sheet
|
Download |
|
Umweltzertifikat (ROHS/REACH)
|
Download |
|
User guide
|
Download |
|
Katalog
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | CANopen |
| Bustyp | CANopen |
| Zubehör / Teilekategorie | Anschlusszubehör |
| Zubehör / Teiletyp | Stecker mit Abschlusswiderstand |
| Schutzart (IP) | IP20 |
| Zubehör / Zielkategorie | CANopen Bus | Zusatzmerkmale |
| elektrische Verbindung | 1 Buchse 9 gerade |
| Produktgewicht | 0,049 kg | Verpackungseinheiten |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 1 Gewicht | 45,000 g |
| VPE 1 Höhe | 9,000 cm |
| VPE 1 Breite | 2,000 cm |
| VPE 1 Länge | 11,000 cm |
| VPE 2 Art | S04 |
| VPE 2 Menge | 300 |
| VPE 2 Gewicht | 14,374 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 40,000 cm |
| VPE 2 Länge | 60,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) |
|
Mercury free
|
Ja |
