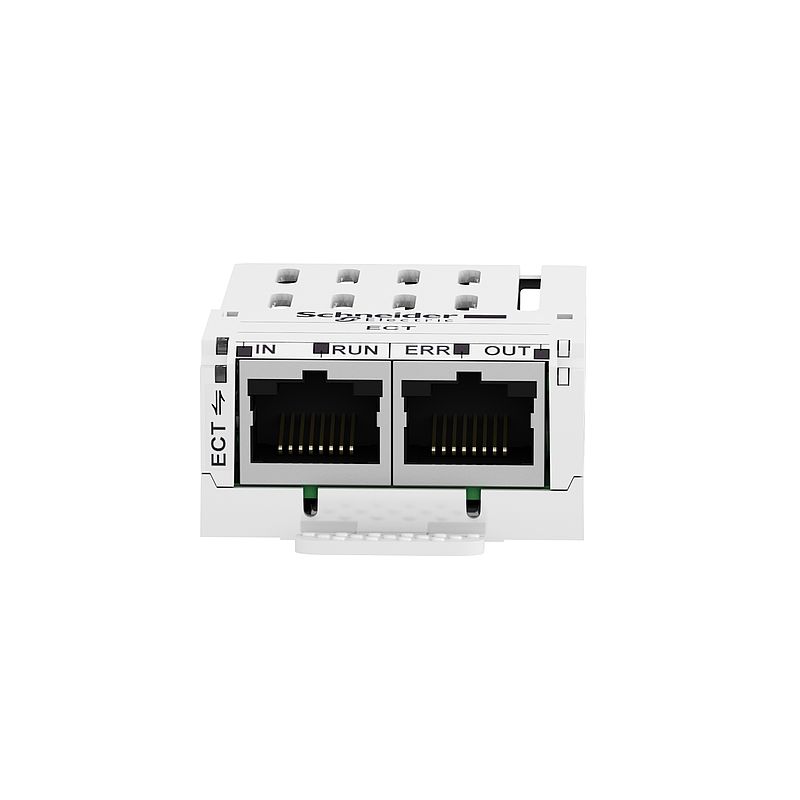

Kommunikationskarte EtherCAT, 2x RJ45
VW3A3601
Materialpreisgruppe
: CI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Environmental Disclosure
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Software - Data Library
|
Download |
|
Catalog
|
Download |
|
Declaration of conformity
|
Download |
Dieses Produkt ist kompatibel mit
Zubehörteile Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | Altivar |
| Produkt- oder Komponententyp | Kommunikationsmodul |
| Zubehör / Teilekategorie | Kommunikationszubehör | Zusatzmerkmale |
| Kompatible Produktfamilie | Altivar Prozess Modular Altivar Maschine ATV340 außer Sercos-Antriebe Altivar Maschine ATV320 Altivar Prozess ATV900 Altivar 32 Lexium 32 |
| Kommunikationsprotokoll | EtherCAT |
| Elektrische Verbindung | 2 Stecker RJ45 |
| Übertragungsgeschwindigkeit | 100 MBit/s |
| Max. Kabelabstand zwischen den Geräten | 100 m für 100 MBit/s |
| Adressierung | Logik-Adressierung Knoten-Adressierung Positions-Adressierung |
| Kommunikationsdienst | PDO und SDO Support Antriebsprofil CiA 402 Geschwindigkeitsmodus entspricht IEC 61800-7-201 (CiA 402) CANopen über EtherCAT (CoE) |
| Displaytyp | 1 LED für Eingangsstatus 1 LED für RUN (Betrieb) 1 LED für Fehler 1 LED für Ausgangsstatus |
| Produktkompatibilität | Lexium 32M | Montage |
| Normen | IEC 61800-7-201 (CiA 402) | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 61,000 g |
| VPE 1 Höhe | 6,300 cm |
| VPE 1 Breite | 4,500 cm |
| VPE 1 Länge | 9,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 100 |
| VPE 2 Gewicht | 6,580 kg |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
| Gewährleistung | 18 months |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Übererfüllung der Konformität (außerhalb EU RoHS-Scope) EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| Circular Econmomy-Eignung | Keine besonderen Recycling-Verfahren erforderlich |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Frei von giftigen Schwermetallen | Ja |
| PVC-frei | Ja |
| Rücknahme | Ja |
| CO2-Bilanz (kg CO2 eq.) | 2 |
| Total lifecycle Carbon footprint | 2 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1.6977560453 |
| CO2 Fußabdruck am Ende der Betriebsdauer | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0077414428 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0021703128 |
| CO2 Fußabdruck während der Einrichtung | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0.00059042 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.0271175564 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0 kg CO2 eq. |
