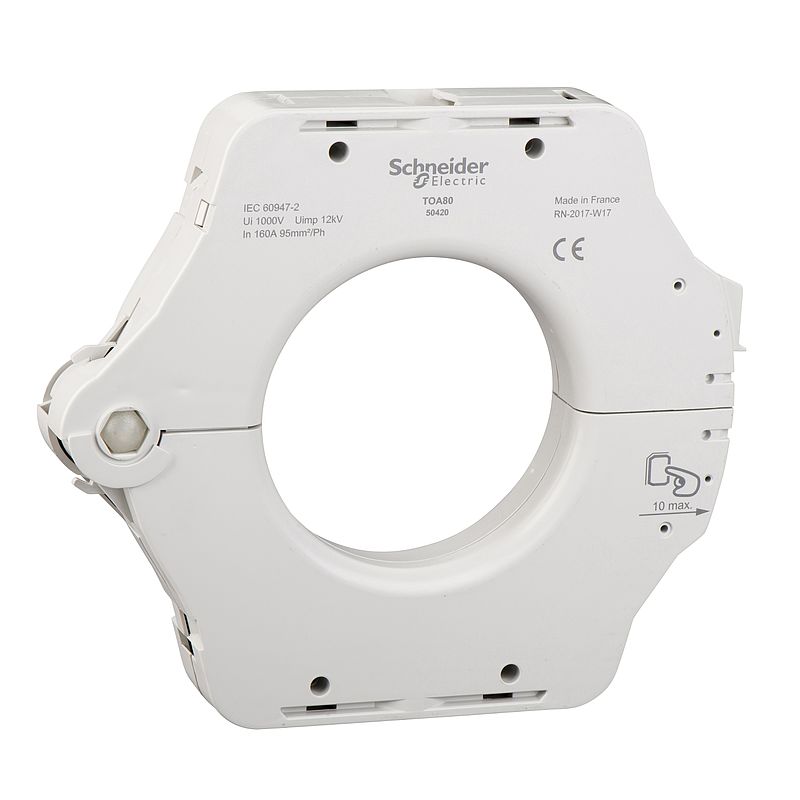

Geteilter Ringkern für Fehlerstromschutz TOA - Ø 80 mm
50420
Materialpreisgruppe : DD
1.790,00 EUR ![](/typo3conf/ext/fs_se_pim/Resources/Public/Icons/info-bicolor.svg)
EAN Code: 3606485433790
Hauptdokumente
Download | |
Download | |
Download | |
Download | |
Download | |
Download | |
Download | |
Download | |
Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
![](/fileadmin/_processed_/0/5/csm_PM5761model_1500x1500_ca0601cc3b.jpg)
Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | VigiPacT |
Kurzbezeichnung des Geräts | TOA |
Produkt- oder Komponententyp | Fehlerstromsensor |
Geräteanwendung | Geräteüberwachung und -steuerung |
Kompatible Produktfamilie | VigiPacT RH10M Fehlerstrom-Schutzrelais VigiPacT RH10P Fehlerstrom-Schutzrelais VigiPacT RH21M Fehlerstrom-Schutzrelais VigiPacT RH21P Fehlerstrom-Schutzrelais VigiPacT RH68M Fehlerstrom-Schutzrelais VigiPacT RH86M Fehlerstrom-Schutzrelais VigiPacT RH86P Fehlerstrom-Schutzrelais VigiPacT RH99M Fehlerstrom-Schutzrelais VigiPacT RH99P Fehlerstrom-Schutzrelais VigiPacT RH197M Fehlerstrom-Schutzrelais VigiPacT RH197P Fehlerstrom-Schutzrelais VigiPacT RHU Fehlerstrom-Schutzrelais VigiPacT RHUs Fehlerstrom-Schutzrelais VigiPacT RMH Fehlerstrom-Schutzrelais |
Typ des Stromsensors | Geteilter Ringkernwandler Typ OA |
[Ie] Betriebsbemessungstrom | 160 A | Zusatzmerkmale |
Transformatorübersetzungsverhältnis | 1/1000 |
Netzwerktyp | AC/DC |
Netzwerkfrequenz | 50 - 400 Hz |
[Icw] Bemessungs-Kurzzeitstromfestigkeit | 85 kA für 0,5 s |
zul. Restkurzschl.-Sp.-Fest. | 85 kA / 0,5 s entspricht IEC 60947-2 |
[Ui] Bemessungs-Isolationsspannung | 1000 V |
Überspannungskategorie | IV |
[Uimp] Bemessungs-Stoßspannungsfestigkeit | 12 kV |
Montagemodus | Fixiert (Kabel) Fixiert (Rückwand ohne Aussparung) Fixiert (Profil-Stahlblech) Fixiert (Rückwand mit Schlitzen) |
Heizwert | 8,02 MJ |
Anschlüsse - Klemmen | Schraube 0,22 mm² |
Durchmesser | Innen: 80 mm |
äußerer Kabeldurchmesser | 23 mm: 50 mm² (Maximum) |
Produktgewicht | 0,85 kg |
Höhe | 148 mm |
Breite | 148 mm |
Tiefe | 38 mm | Montage |
Schutzart (IP) | Stecker: IP20 IP30 |
Schutzart (IK) | IK07 entspricht EN 62262 |
Umgebungseigenschaften | Feuchte Wärme, bei Betrieb (Umgebungskategorie C2) : 48 Stunden entspricht IEC 60068-2-56 Feuchte Wärme, außerhalb Betrieb (25 - 55 °C, rel. LF 95 %) : 28 Zyklen entspricht IEC 60068-2-30 Salznebel: Kb/2 entspricht IEC 60068-2-52 |
Verschmutzungsgrad | Stufe 3 entspricht IEC 60664-1 |
Umgebungstemperatur bei Betrieb | -35…70 °C |
Umgebungstemperatur bei Lagerung | -55…85 °C |
Normen | IEC 60947-2 |
Produktzertifizierungen | CE | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 982,000 g |
VPE 1 Höhe | 5,200 cm |
VPE 1 Breite | 17,800 cm |
VPE 1 Länge | 20,200 cm |
VPE 2 Art | S03 |
VPE 2 Menge | 12 |
VPE 2 Gewicht | 12,250 kg |
VPE 2 Höhe | 30,000 cm |
VPE 2 Breite | 30,000 cm |
VPE 2 Länge | 40,000 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie | Konform mit Ausnahmen |
Quecksilberfrei | Ja |
