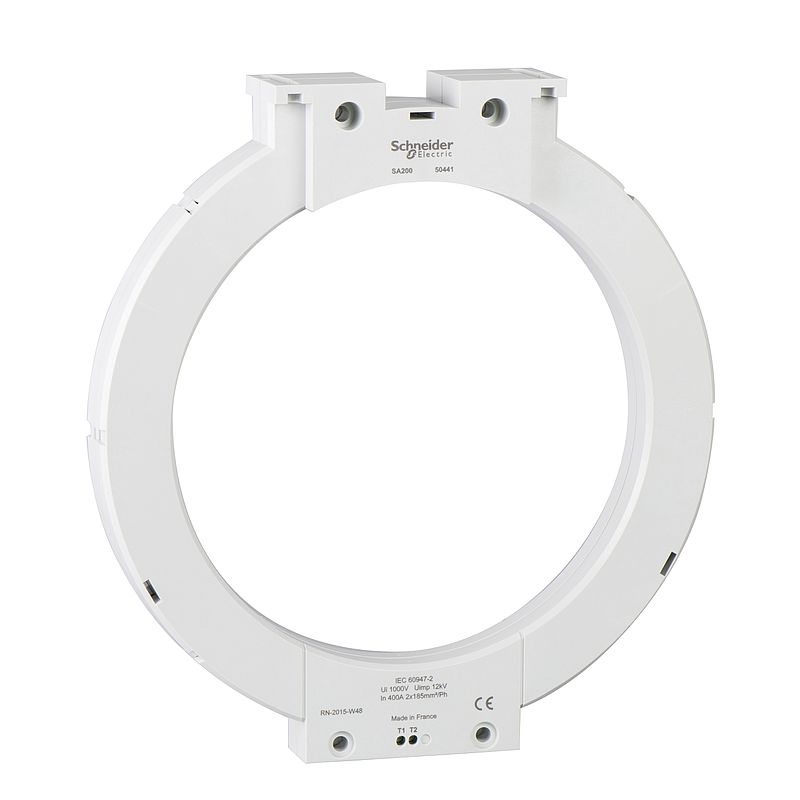

Geschlossener Ringkern für Fehlerstromschutz SA, Ø 200mm
50441
EAN Code: 3303430504412
Hauptdokumente
Produktdatenblatt | Download |
Maßzeichnung | Download |
Sonstiger technischer Leitfaden | Download |
Umweltzertifikat (ROHS/REACH) | Download |
Benutzerhandbuch | Download |
Katalog | Download |
CAD | Download |
Gebrauchsanleitung | Download |
Entsorgungsinformation | Download |
Produktumweltprofil | Download |
Dieses Produkt ist kompatibel mit
Hauptfunktionen: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | VigiPacT |
Kurzbezeichnung des Geräts | SA200 |
Produkt- oder Komponententyp | Fehlerstromsensor |
Geräteanwendung | Geräteüberwachung und -steuerung |
Kompatible Produktfamilie | VigiPacT RH10M Fehlerstrom-Schutzrelais VigiPacT RH10P Fehlerstrom-Schutzrelais VigiPacT RH21M Fehlerstrom-Schutzrelais VigiPacT RH21P Fehlerstrom-Schutzrelais VigiPacT RH68M Fehlerstrom-Schutzrelais VigiPacT RH86M Fehlerstrom-Schutzrelais VigiPacT RH86P Fehlerstrom-Schutzrelais VigiPacT RH99M Fehlerstrom-Schutzrelais VigiPacT RH99P Fehlerstrom-Schutzrelais VigiPacT RH197M Fehlerstrom-Schutzrelais VigiPacT RH197P Fehlerstrom-Schutzrelais VigiPacT RHU Fehlerstrom-Schutzrelais VigiPacT RHUs Fehlerstrom-Schutzrelais VigiPacT RMH Fehlerstrom-Schutzrelais |
Typ des Stromsensors | Geschlossener Toroid vom Typ A |
[Ie] Betriebsbemessungstrom | 400 A | Zusatzmerkmale |
Transformatorübersetzungsverhältnis | 1/1000 |
Netzwerktyp | AC/DC |
Netzwerkfrequenz | 45 - 440 Hz |
[Icw] Bemessungs-Kurzzeitstromfestigkeit | 85 kA für 0,5 s |
zul. Restkurzschl.-Sp.-Fest. | 85 kA / 0,5 s entspricht IEC 60947-2 |
[Ui] Bemessungs-Isolationsspannung | 1000 V |
Überspannungskategorie | IV |
[Uimp] Bemessungs-Stoßspannungsfestigkeit | 12 kV |
Montagemodus | Fixiert (Kabel) Fixiert (Rückwand ohne Aussparung) Fixiert (Profil-Stahlblech) Fixiert (Rückwand mit Schlitzen) |
Heizwert | 7,05 MJ |
Anschlüsse - Klemmen | Schraubverbindung 0,22 mm² |
Durchmesser | Innen: 196 mm |
äußerer Kabeldurchmesser | 100 mm für 2 Kabel : 185 mm² (Maximum) |
Produktgewicht | 1,32 kg |
Höhe | 256 mm |
Breite | 274 mm |
Tiefe | 46 mm | Montage |
Schutzart (IP) | Stecker: IP20 IP30 |
Umgebungseigenschaften | Feuchte Wärme, außerhalb Betrieb (25 - 55 °C, rel. LF 95 %) : 28 Zyklen entspricht IEC 60068-2-30 Salznebel: Kb/2 entspricht IEC 60068-2-52 Feuchte Wärme, bei Betrieb: Kategorie C2: 48 Stunden entspricht IEC 60068-2-56 |
Verschmutzungsgrad | Stufe 3 entspricht IEC 60664-1 |
Umgebungstemperatur bei Betrieb | -35…70 °C |
Umgebungstemperatur bei Lagerung | -55…85 °C |
Normen | IEC 60947-2 |
Produktzertifizierungen | CE | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 1,100 kg |
VPE 1 Höhe | 7,500 cm |
VPE 1 Breite | 27,000 cm |
VPE 1 Länge | 28,400 cm |
VPE 2 Art | S04 |
VPE 2 Menge | 12 |
VPE 2 Gewicht | 13,800 kg |
VPE 2 Höhe | 30,000 cm |
VPE 2 Breite | 40,000 cm |
VPE 2 Länge | 60,000 cm |
VPE 3 Art | P12 |
VPE 3 Menge | 48 |
VPE 3 Gewicht | 67,864 kg |
VPE 3 Höhe | 50,000 cm |
VPE 3 Breite | 80,000 cm |
VPE 3 Länge | 120,000 cm | Vertragliche Gewährleistung |
Garantie | 18 months |
Nachhaltigkeit
Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.
NachhaltigkeitAngebotsstatus nachhaltiges Produkt | Green Premium Produkt |
EU-RoHS-Richtlinie | Konform mit Ausnahmen |
Quecksilberfrei | Ja |
WEEE | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
