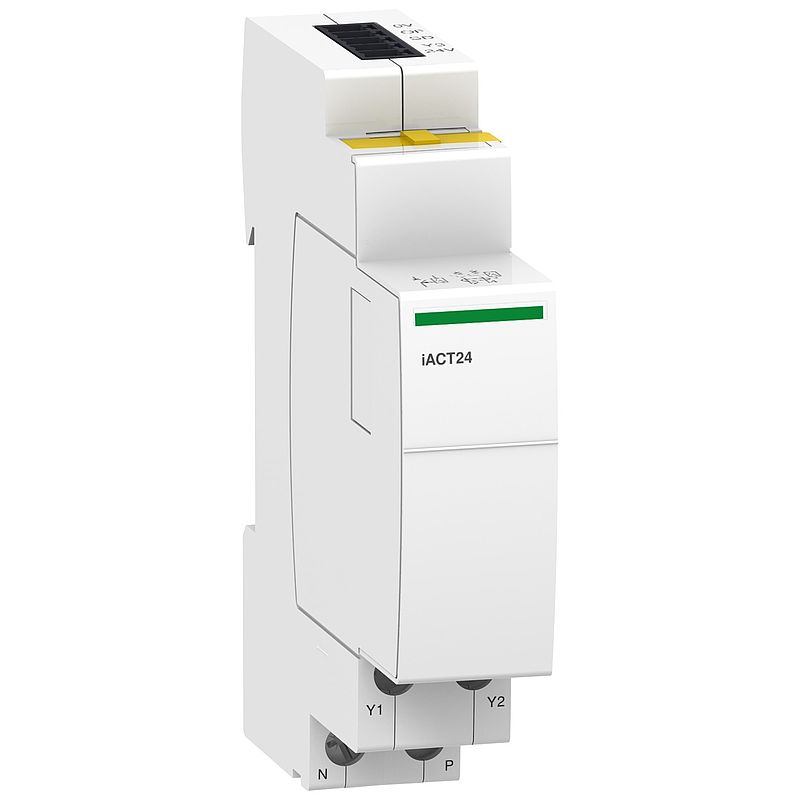

Hilfsmodul iACT24 für Fernschalten iCT mit Ti24-SPS-Schnittstelle, 24V DC

A9C15924


Spezifikationen

Hauptmerkmale
BaureiheActi9
Produkt- oder KomponententypZusatzausrüstung für Steuerung und Anzeige
Kurzbezeichnung des GerätsiACT24
Zusammensetzung der Signalkontakte1 NO
Signalkreisspannung24 V DC: -20 - +20 % 0,002 - 0,1 A
Steuerkreisspannung230 V AC 50/60 Hz gewartet >= 200 ms
24 V DC fallende Flanke
24 V DC ansteigende Flanke
SteuerungstypFernsteuerung
[UH,nom] Bemessungsbetriebsspannung230 V AC bei 50/60 Hz
Zusatzmerkmale
MontagemodusBefestigt, links an CT
MontagehalterungDIN-Schiene
Kompatibilität von Kammschienen und VerteilerblöckenUnten: ja
Oben: NEIN
9-mm-Raster2
Höhe81 mm
Breite18 mm
Tiefe68 mm
FarbeWeiß
ÜberspannungskategorieIII
[Uimp] Bemessungs-Stoßspannungsfestigkeit4 kV
[Ui] Bemessungs-Isolationsspannung440 V
Störfestigkeit gegen Unterbrechungen10 ms
UnterspannungsverhaltenKeine Öffnung bei Verlust von 24 V DC
NormenIEC 60947-1 Anhang S
GütesiegelCE
elektrische Lebensdauer250000 Zyklen entspricht IEC 60947-5-1
Anschlüsse - KlemmenSteuerkreis: Tunnelklemmen 2 Kabel(n) 2,5 mm² flexibel
Steuerkreis: Tunnelklemmen 2 Kabel(n) 1,5 mm² fest
Hilfsspannungsversorgung: Tunnelklemmen 2 Kabel(n) 2,5 mm² flexibel
Hilfsspannungsversorgung: Tunnelklemmen 2 Kabel(n) 1,5 mm² fest
Steuerkreis: Federzugklemme Ti24 2 Kabel(n) 0,25…0,75 mm² flexibel
Steuerkreis: Federzugklemme Ti24 1 Kabel(n) 0,5…1,5 mm² flexibel
DrahtabisolierungslängeSteuerkreis: 10 mm für unten Verbindung
Hilfsspannungsversorgung: 10 mm für unten Verbindung
Steuerkreis: 10 mm für oben Verbindung
[M] AnzugsdrehmomentSteuerkreis: 1 Nm unten
Hilfsspannungsversorgung: 1 Nm unten
ProduktkompatibilitätICT 230/240 V 50 Hz
With PLC
ICT 220 V 50 Hz
Acti 9 Smartlink
ICT 220/240 V 50 Hz
MarktsegmentGebäude
Kleingewerbe
KompatibilitätscodeIACT24
Montage
Schutzart (IP)IP20 entspricht IEC 60529
IP40 (modulares Gehäuse) entspricht IEC 60529
Verschmutzungsgrad3 entspricht IEC 60439-1
Tropentauglichkeit2 entspricht IEC 60947-5-1
Relative Luftfeuchtigkeit93 % bei 40 °C entspricht IEC 60068-2
Umgebungstemperatur bei Betrieb-25…60 °C
Umgebungstemperatur bei Lagerung-40…80 °C
Verpackungseinheiten
VPE 1 ArtPCE
VPE 1 Menge1
VPE 1 Gewicht84,0 g
VPE 1 Höhe2,7 cm
VPE 1 Breite7,6 cm
VPE 1 Länge8,6 cm
VPE 2 ArtS03
VPE 2 Menge108
VPE 2 Gewicht9,546 kg
VPE 2 Höhe30,0 cm
VPE 2 Breite30,0 cm
VPE 2 Länge40,0 cm
Vertragliche Gewährleistung
Garantie18 months

Nachhaltigkeit

Mit der Kennzeichnung Green PremiumTM verpflichtet sich Schneider Electric für die Lieferung von Produkten mit erstklassiger Umweltleistung. Green Premium verspricht die Einhaltung aktueller Vorschriften, Transparenz in Bezug auf Umweltauswirkungen sowie Wiederverwertbarkeit und Produkte mit niedrigem CO2-Fußabdruck.

Weitere Informationen

Nachhaltigkeit
EU-RoHS-Richtlinie Konform mit Ausnahmen
Quecksilberfrei Ja
WEEE Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen.
Sustainable packaging Yes
