HeatTag

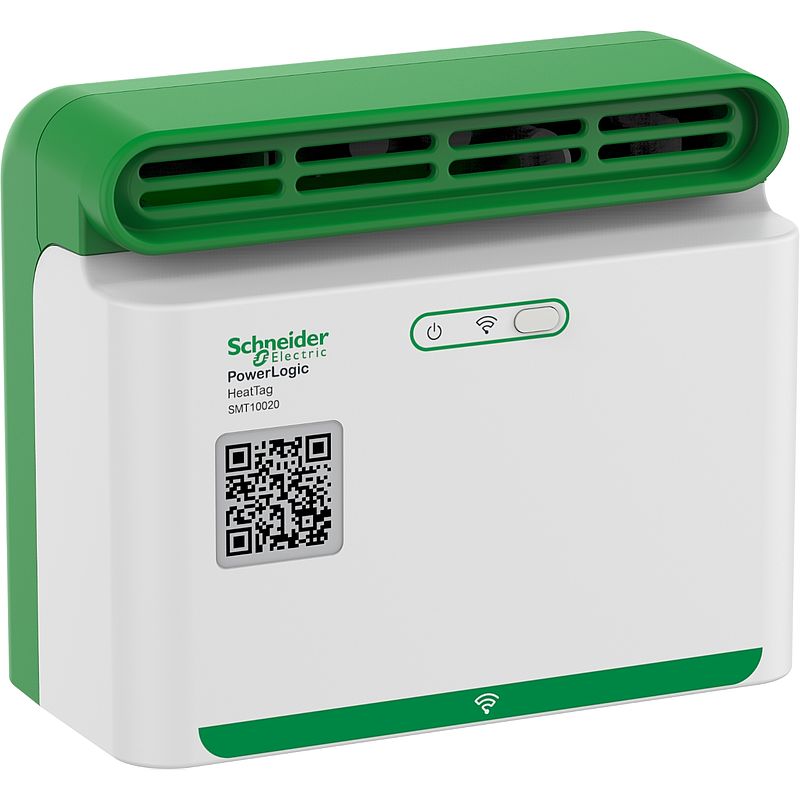

SMT10020
Materialpreisgruppe
: DF
568,00 EUR
EAN Code: 3606489906269
Hauptdokumente
Download | |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Video anzeigen |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
|
Download |
Dieses Produkt ist kompatibel mit
Kommunikations-Artikel: Kompatible Produkte

Kühlungs-Artikel: Kompatible Produkte

Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | PowerLogic |
Baureihe | PowerLogic HeatTag |
Produkt- oder Komponententyp | Wärmemelder |
Kompatible Produktfamilie | PrismaSeT drahtloser Panel-Server EcoStruxure Datenkonzentrator PowerLogic PowerTag |
Geräteanwendung | Elektrische Schalttafel |
Funktion verfügbar | Überhitzungserkennung von Kabeln und Kabelverbindungen Überhitzungserkennung basierend auf der Analyse von Gas und Partikeln in der Luft 3 Alarmstufen je nach Schweregrad der Situation Automatisches Lernen der Umgebung zur Vermeidung von Fehlalarmen Drahtlose Kommunikation mit allen EcoStruxure-Datenkonzentratoren |
Sensortechnik | Elektronisch |
Messart | Temperatur, Bereich: - 15 - 70 °c, Präzision:+/- 1,1 °C Luftfeuchtigkeit, Bereich: 15 - 90 % RH, Präzision:+/- 9 % Luftqualitätsindex, Bereich: 0 - 10 AQI |
Übertragungsdauer | 30 s (standardmäßig) > 30 s (hoher Datenverkehr) |
Alarmpegel | Luftqualitätsindex >= 10 |
Kommunikationsnetztyp | Drahtlos - 2,4 GHz |
Normen | IEC 61010-1 IEC 61010-2-201 IEC 61326-1 ETSI EN 300 328 ETSI EN 301 489-1 ETSI EN 301 489-17 IEEE 802.15.4 FCC Teil 15, Abschnitt B FCC Teil 15 Unterabschnitt C UL 61010-1 CSA C22.2 Nr. 61010-1 |
Zusatzmerkmale |
Nennhilfsspannung [UH,nom] | 110 - 277 V AC bei 50/60 Hz, Einzelphase |
Versorgungsspannungsgrenzen | 110…277 V (+/-15 %) |
Max. Versorgungsstrom | 0,1 A |
Überspannungskategorie | III |
Kontrolltyp | 1 Drucktaste (Sensor-Kopplung/Alarm-Bestätigung) |
Lokale Signalisierung | Netzwerk Status: 1 LED (grün, orange und rot) Betrieb: 1 LED (grün, orange und rot) |
Geräteposition im System | Oberseite der Schalttafel Nicht zwangsbelüftete Schalttafel |
Montagehalterung | DIN-Schiene |
Schutzart | Leistungsschalter 2 A Kurve C |
elektrische Verbindung | 2 Pin(s)abnehmbare Federklemmleiste 2,5 mm² starr oder flexibel |
Höhe | 107 mm |
Breite | 108 mm |
Tiefe | 55 mm |
Produktgewicht | 0,27 kg | Montage |
Umgebungstemperatur bei Lagerung | -20…85 °C |
Umgebungstemperatur bei Betrieb | -15…70 °C |
Betriebshöhe | 0 - 2.000 m |
Relative Luftfeuchtigkeit | 15…90 % |
Schutzart (IP) | IP20 |
Schutzart (IK) | IK06 |
Verschmutzungsgrad | 3 |
Elektromagnetische Verträglichkeit | EMV-Störfestigkeit entspricht IEC 61326-1 | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 270 g |
VPE 1 Höhe | 11,4 cm |
VPE 1 Breite | 7 cm |
VPE 1 Länge | 11,4 cm |
VPE 2 Art | S02 |
VPE 2 Menge | 14 |
VPE 2 Gewicht | 4,13 kg |
VPE 2 Höhe | 15 cm |
VPE 2 Breite | 30 cm |
VPE 2 Länge | 40 cm | Vertragliche Gewährleistung |
Gewährleistung | 18 Monate |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform mit Ausnahmen EU-RoHS-Deklaration |
Quecksilberfrei
|
Ja |
WEEE | Das Produkt muss nach der spezifischen Abfallsammlung auf den Märkten der Europäischen Union entsorgt werden und darf nicht in Abfalleimer gelangen |
PVC-frei | Ja |
Halogengehalt Leistung | Halogenfreie Kunststoffteile |
Rücknahme | No |
CO2-Bilanz (kg CO2 eq.) | 1090 |
