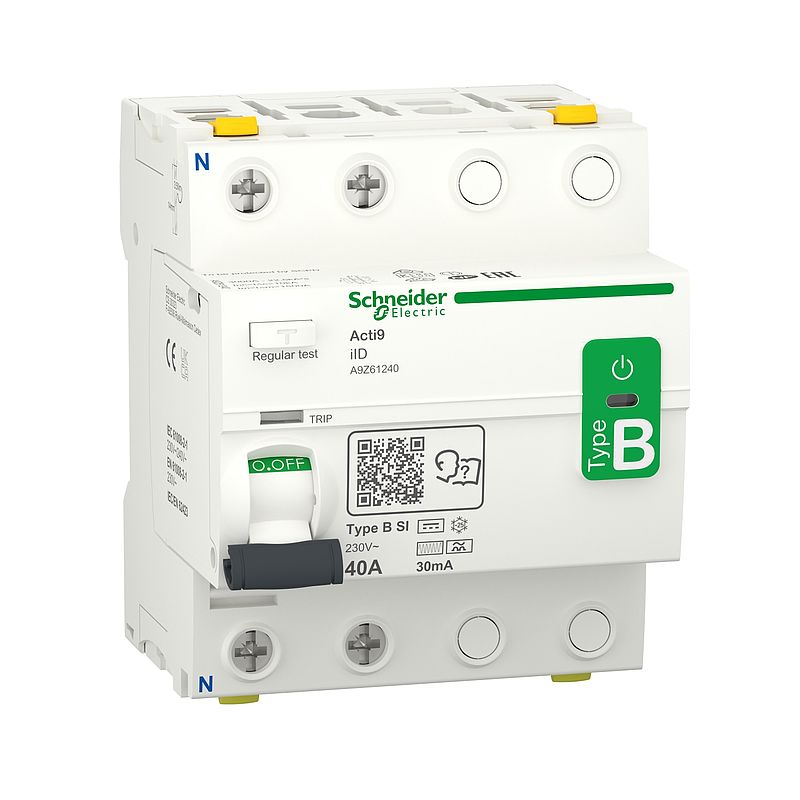

Fehlerstrom-Schutzschalter Allstromsensitiv iID, 2P, 40A, Typ B-SI, 30mA
A9Z61240
Materialpreisgruppe : D2
745,00 EUR
EAN Code: 3606489502751
Hauptdokumente
Produktdatenblatt | Download |
Umweltzertifikat (ROHS/REACH) | Download |
Konformitätserklärung | Download |
Entsorgungsinformation | Download |
Produktumweltprofil | Download |
Broschüre | Download |
Anwendungshinweise | Download |
Gebrauchsanleitung | Download |
Benutzerhandbuch | Download |
How To Video | Video anzeigen |
Zertifikat | Download |
CAD | Download |
Katalog | Download |
Dieses Produkt ist kompatibel mit
Kommunikations-Artikel: Kompatible Produkte
Zubehörteile: Kompatible Produkte
Zusatzausrüstungen: Kompatible Produkte
Verteilungen: Kompatible Produkte
Spezifikationen
Hauptmerkmale | |
---|---|
Baureihe | Acti9 |
Produktname | Acti9 iID |
Produkt- oder Komponententyp | Fehlerstrom-Schutzschalter (FI) |
Kurzbezeichnung des Geräts | iID |
Geräteanwendung | Photovoltaik Aufzug |
Beschreibung der Pole | 2P |
Neutralposition | Links |
[In] Bemessungsstrom | 40 A |
Netzwerktyp | AC |
Erdschlussempfindlichkeit | 30 mA |
Erdschlussschutz Zeitverzögerung | Unverzögert |
Erdschluss-Schutzklasse | Typ B-SI |
Gütesiegel | VDE NF IMQ KEMA | Zusatzmerkmale |
Geräteposition im System | Abgang Gruppeneingang |
Netzwerkfrequenz | 50 Hz |
[Ue] Betriebsbemessungsspannung | 230 V AC 50 Hz |
Bemessungsbruchkraft und Bemessungsleistung | Idm 1500 A IM 1500 A |
Bedingter Bemessungs-Kurzschlussstrom | 10 kA |
[Ui] Bemessungs-Isolationsspannung | 250 V |
[Uimp] Bemessungs-Stoßspannungsfestigkeit | 6 kV |
Kontaktstellungsanzeige | Ja |
Steuerungstyp | Kippschalter |
Lokale Signalisierung | ON/OFF-Anzeige LED (grün) für Vorhandensein von Spannung Auslöseanzeige |
Montagemodus | Aufsteckbar |
Montagehalterung | DIN-Schiene |
9-mm-Raster | 8 |
Höhe | 88 mm |
Breite | 72 mm |
Tiefe | 79 mm |
Produktgewicht | 350 g |
Farbe | Weiß |
Mechanische Lebensdauer | 20000 Zyklen |
Elektrische Lebensdauer | 15000 Zyklen |
Beschreibung der Verriegelungsoptionen | Vorhängeschloss |
Anschlüsse - Klemmen | Doppelklemme Frontseite1…35 mm² fest Doppelklemme Frontseite1…25 mm² flexibel Doppelklemme Frontseite1…25 mm² flexibel mit Aderendhülse Doppelklemme Rückseite1…25 mm² fest Doppelklemme Rückseite1…16 mm² flexibel Doppelklemme Rückseite1…16 mm² flexibel mit Aderendhülse |
Drahtabisolierungslänge | 14 mm für oben oder unten Verbindung |
[M] Anzugsdrehmoment | 3,5 Nm oben oder unten |
Fehlerstrom-Auslösetechnik | Spannungsunabhängig | Montage |
Normen | IEC 61008-2-1 IEC/EN 62423 EN 61008-2-1 |
Produktzertifizierungen | CCC KC |
Schutzart (IP) | IP20 entspricht IEC 60529 IP40 (modulares Gehäuse) entspricht IEC 60529 |
Schutzart (IK) | IK05 |
Verschmutzungsgrad | 3 |
Überspannungskategorie | IV |
Elektromagnetische Verträglichkeit | 8/20 µs Impulswiderstand, 3 kA entspricht EN/IEC 61008-1 |
Betriebshöhe | 0 - 2.000 m |
Umgebungstemperatur bei Betrieb | -25…60 °C |
Umgebungstemperatur bei Lagerung | -40…85 °C | Verpackungseinheiten |
VPE 1 Art | PCE |
VPE 1 Menge | 1 |
VPE 1 Gewicht | 363,0 g |
VPE 1 Höhe | 7,5 cm |
VPE 1 Breite | 8,5 cm |
VPE 1 Länge | 9,9 cm |
VPE 2 Art | S03 |
VPE 2 Menge | 27 |
VPE 2 Gewicht | 10,242 kg |
VPE 2 Höhe | 30,0 cm |
VPE 2 Breite | 30,0 cm |
VPE 2 Länge | 40,0 cm | Vertragliche Gewährleistung |
Garantie | 18 Monate |
